Mortise lock

Home Owner from Taylor, MI
This part is from my doorwall. It is my doorwall lock. The lock and all are included and i cannot find the part anywhere and nothing else works because this is oval and fits in an oval hole. 4 1/2 inches top to bottom, 11/16 wide and actual lock part 1/2 inch . Are you able to help me find this
3 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your mortise lock resembles the 82-244 at first glance. Review the dimensions below to see how they compare to your assembly. Note that this part uses a 45-degree keyway for the handle latch. Thanks for posting!

Dimensions for 82-244
Dimensions for 82-244

Home Owner from Taylor, MI
Do you sell this with a door handle as well? or does it only come seperate.
Casey
Casey from SWISCO
SWISCO
Expert

The mortise lock and handle set are separate pieces of hardware. If you need new handles as well, feel free to get back to us with photos of your original assembly. We'll also need you to write out the exact distance between the center of the installation holes to narrow down your options.

Home Owner from Taylor, MI

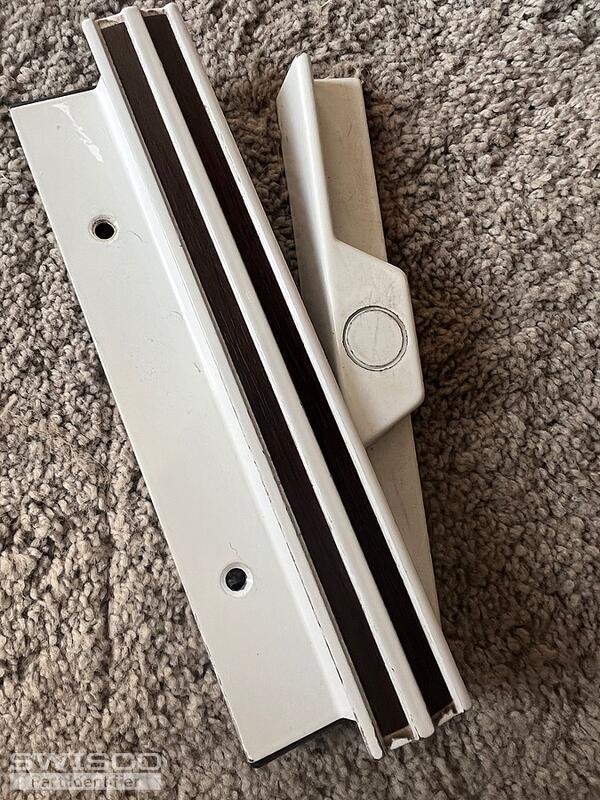

This is my old handle front and back. Looks like the center is 2 inches
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Your handle set is a similar style to the 82-032 shown below. Note that the hole spacing measures 3-15/16". I'd recommend double-checking your measurement to confirm if this could work for your repair.

Detail of outside handle 82-032
Detail of outside handle 82-032
