Trying to identify a channel balance : SWISCO.com

Quick Learner from St. Louis

Oct 1, 2026 3:40 pm

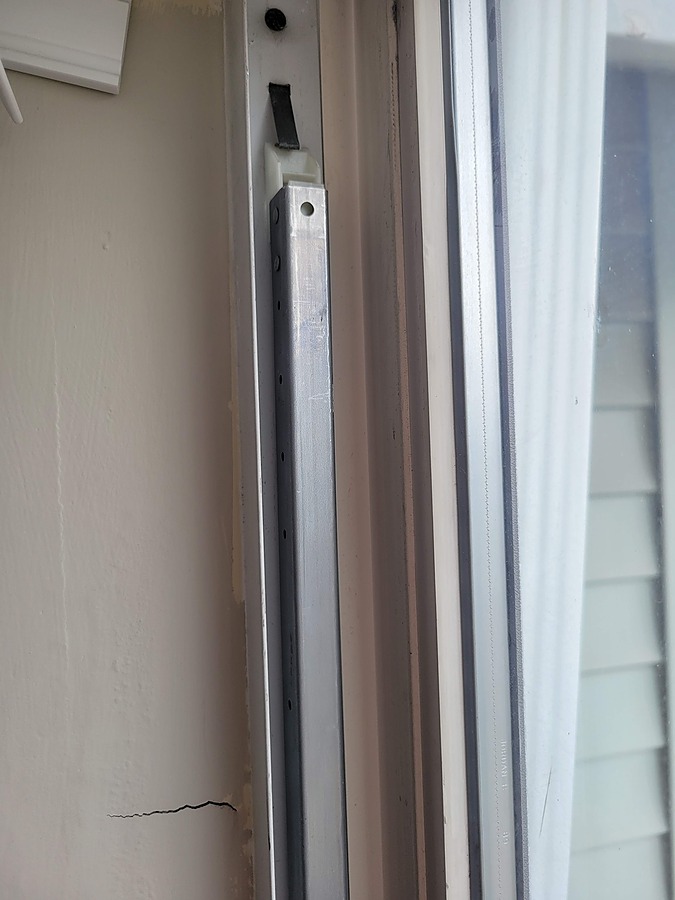

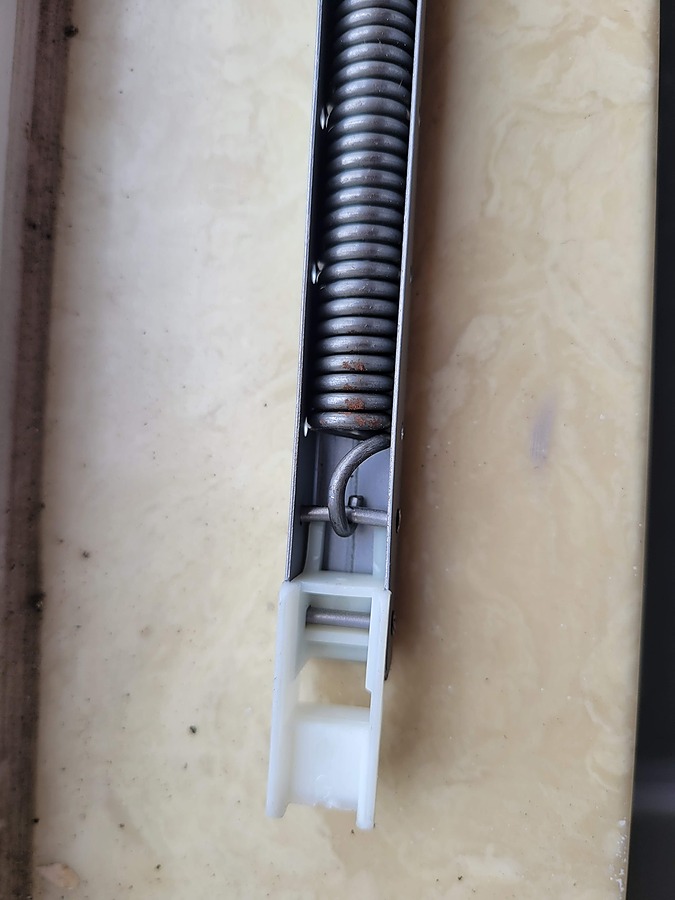

This is a 29" channel balance. The only number I could find on it is 2850.

5 user uploaded images

5 Replies

Quick Learner from St. Louis

Oct 1, 2026 3:53 pm

Forgot to mention that it is 1/2" wide

Bob from SWISCO

Oct 3, 2026 4:07 am

Hey there. It looks like you have either the S351-29 or S390-29 Channel Balance, depending on the shoe depth. See below. For a stamp option choose 2850.

Comparison of the S351 and S390 balance shoes.

Quick Learner from St. Louis

Oct 5, 2026 7:56 pm

Thank you!

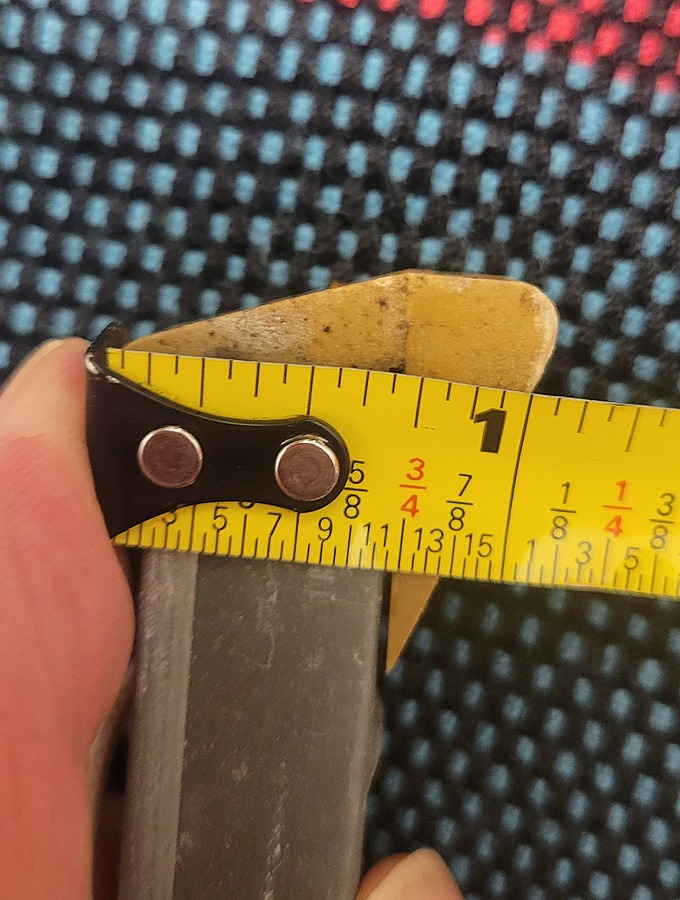

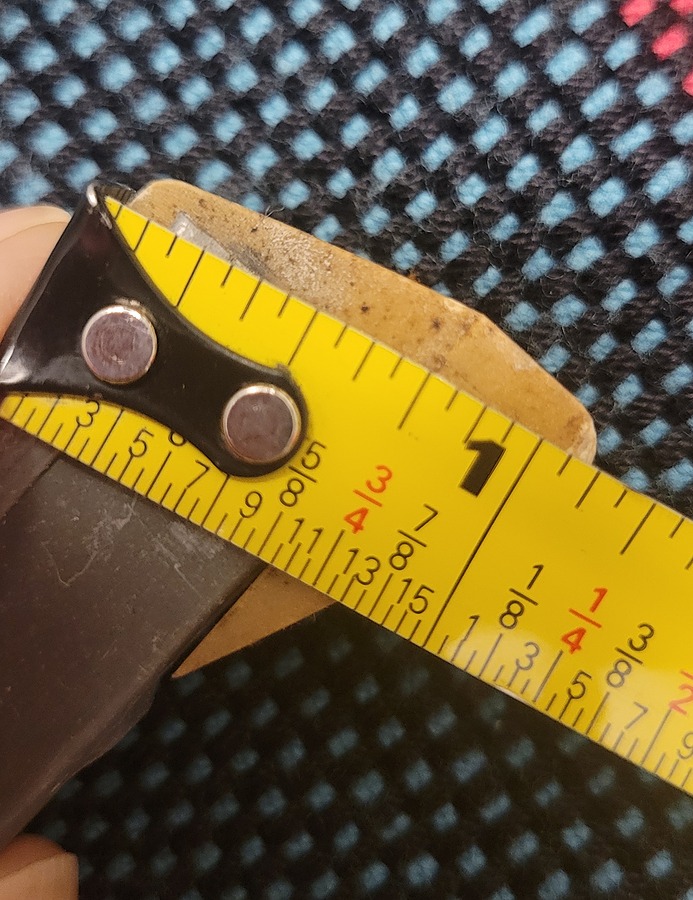

An I measuring straight across or from the back to the tip?

2 user uploaded images

Bob from SWISCO

Oct 6, 2026 10:47 am

You want to measure straight across, from one end to the other. You need to get the entire depth. Basically, what this measurement determines is how the balance is braced between the track and the sash. It needs a firm fit without being too large.

Looking at your photos, I think the Series 390 is a winner. The depth is definitely more than 1".
