Trying to identify the type of balance shoe and block and tackle

Handy Person from Texas

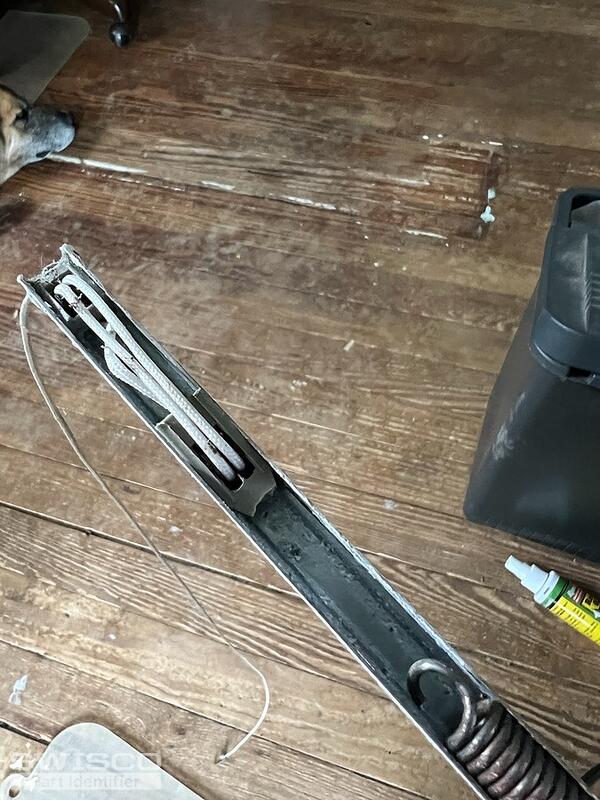

Good morning. I have a couple of windows with a 28" block and tackle and the T-Lock balance that need replacing.

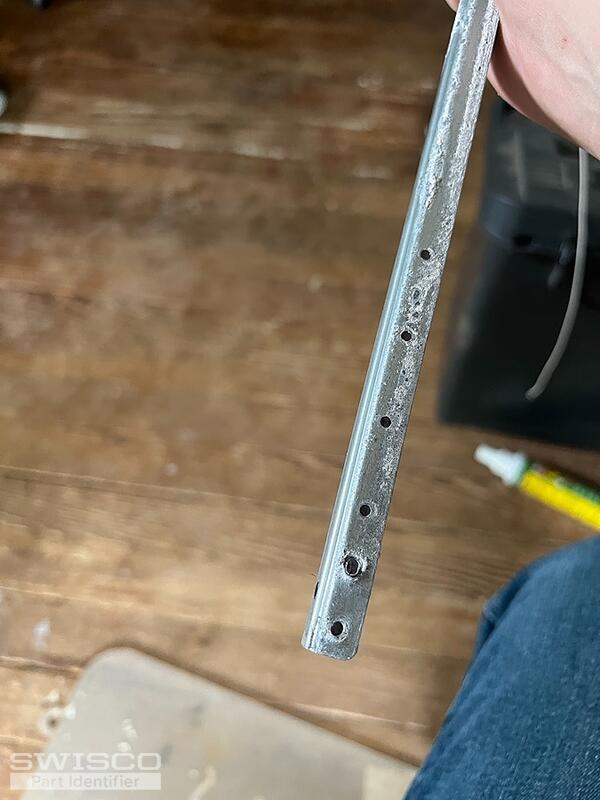

The window block and tackle assembly have a raised rib on the front of it. It is not flat.

I think the 1-1/4" T-Lock Balance Shoe, Closed Cam

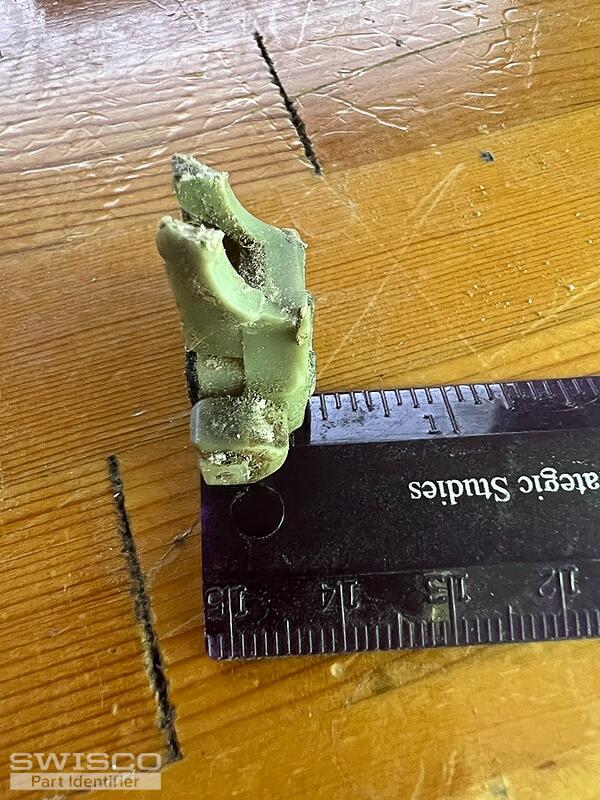

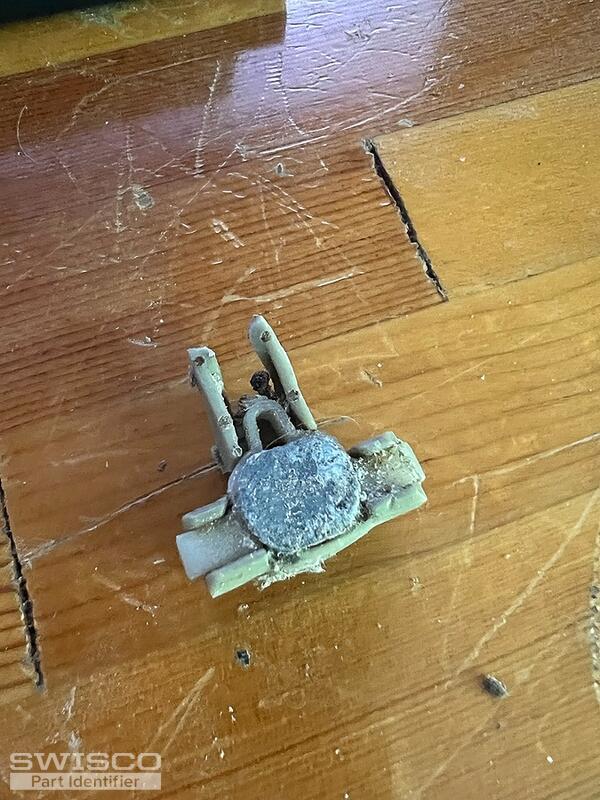

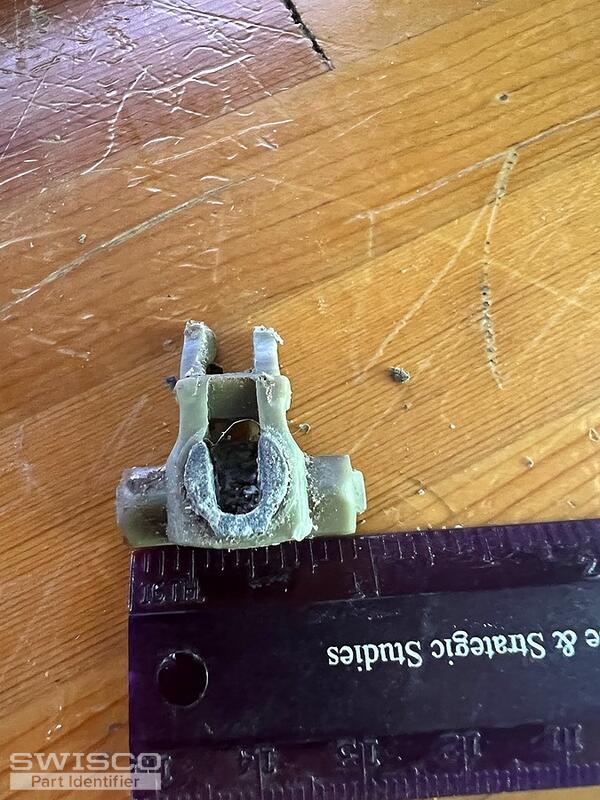

Product Code: 15-195 is the closest fit, but unsure. Some of the bits on the balance shoe have broken off and are missing. So I am unable to provide a photo of the full piece that is removed from a window. Any help will be greatly appreciated. I plan on ordering four sets of assemblies and a few extra t-locks. Thank you. Casey.

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like you have the 1" wide 15-230 T-lock shoe, which is used with a ribbed metal channel that measures 3/8" wide. We can supply the eight balances that you need but it will need to be a custom order. To get started, we'll need to know the stamp code printed on your metal channels. Thank you!

Dimensions for 15-230
Dimensions for 15-230
