Trying to locate this part

Start a new Discussion

Quick Learner from Wisconsin, USA

Jul 24, 2022 3:20 pm

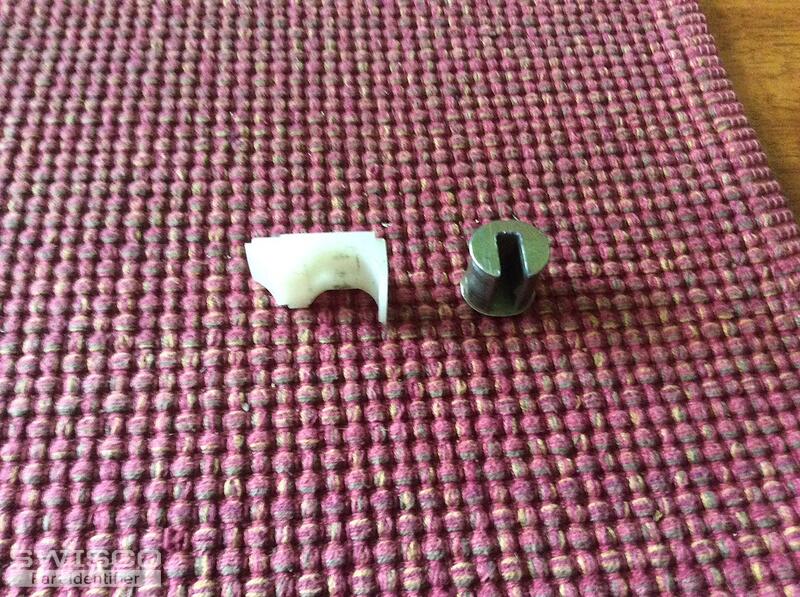

We have this from a 2 piece cam shoe for a Sears window. We need 4 of them.

1 user uploaded image

7 Replies

Tom from SWISCO

Jul 28, 2022 11:15 am

This is similar in design to our 15-192 pivot shoe, which is a genuine Certainteed product. Look it over and see what you think.

Please note that some customers have told me that this part is a tricky fit for old windows. You may need to shave or cut off the protrusions on the face of the new style shoe for it to fit in your track, otherwise it may be too tight.

Quick Learner from Wisconsin, USA

Jul 31, 2022 5:55 pm

I'm guessing the 15-192, 1 piece would take place of current 2 piece shoe? Window channel is about 1 1/2" wide and 7/8" deep. Thanks

Tom from SWISCO

Aug 1, 2022 8:18 am

I'm not sure that I understand what you mean by 2-piece shoe. Our 15-192 is also in two pieces: the outer plastic housing and metal cam. Can you clarify what you mean?

Quick Learner from Wisconsin, USA

Aug 2, 2022 7:49 pm

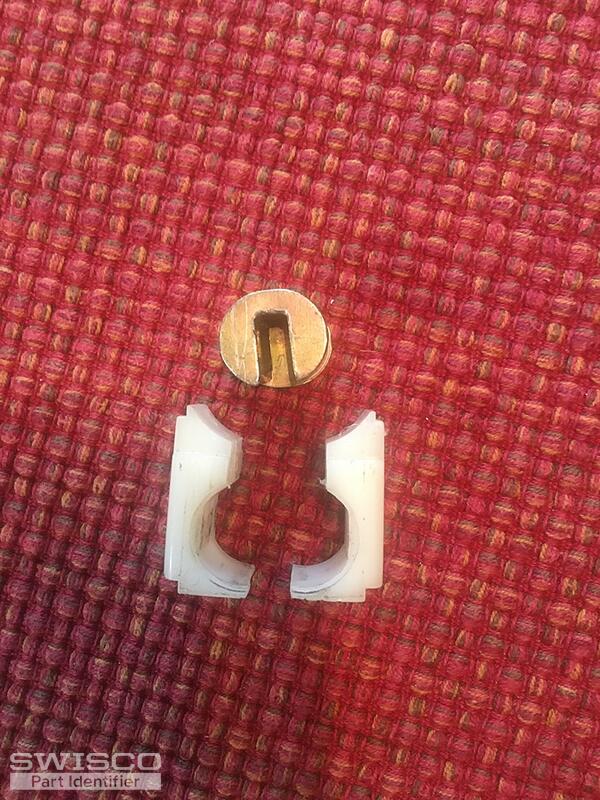

I was referring to a 2 piece shoe or is mine broken? Please see photo

1 user uploaded image

Tom from SWISCO

Aug 3, 2022 8:26 am

Thanks for clarifying. Yes, your shoe is just broken. These are originally made as one complete piece.

Quick Learner from Wisconsin, USA

Aug 21, 2022 2:27 pm

Got it together. I had to trim the outside and had to enlarge the pin opening, I also had to use the old cams. Thanks for your help
