Trying to locate window tilt latches

Home Owner from South Carolina

Mar 4, 2016 5:13 pm

Need replacement tilt latches. Windows are Dimension One by Simonton installed 1996.

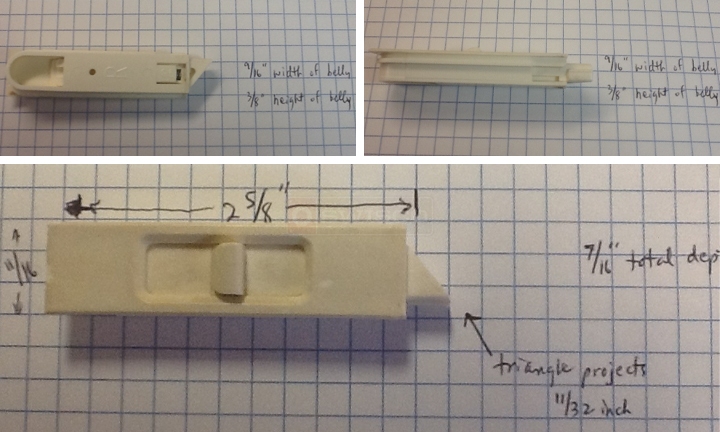

Latches slide in from side. Have right latch and left latch. Have spring. Only number on them is a 98 on the under side.

Length 2 5/8, width 11/16", depth 7/16"

Belly width 9/16", belly height 3/8"

Thank you for your help!

2 Replies

Paul from SWISCO

Mar 8, 2016 1:44 pm

Thank you for the great pictures and dimensions! See our 26-243 and 26-244, I think these are the latches you're looking for.
