Trying to replace window balance for several broken balances

Quick Learner from Colorado

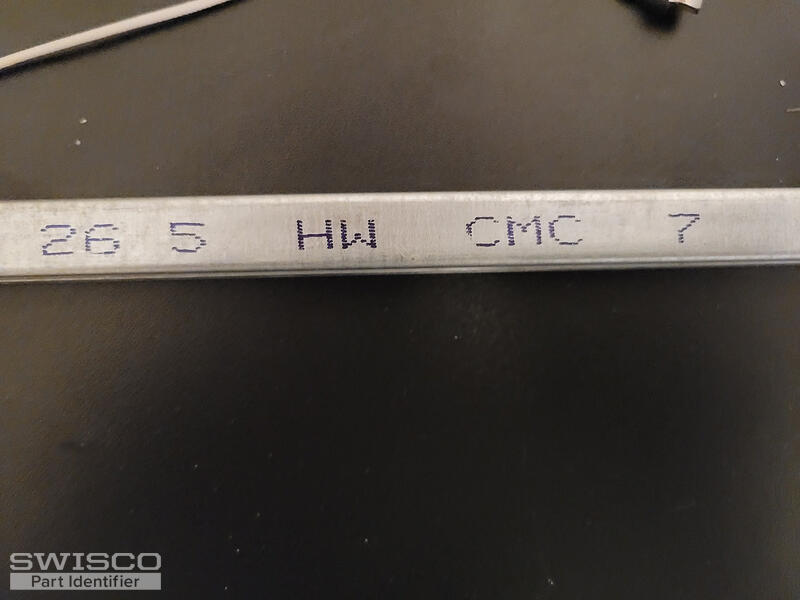

Markings "26 5 HW CMC 7"
Channel width seems to be 1/2"

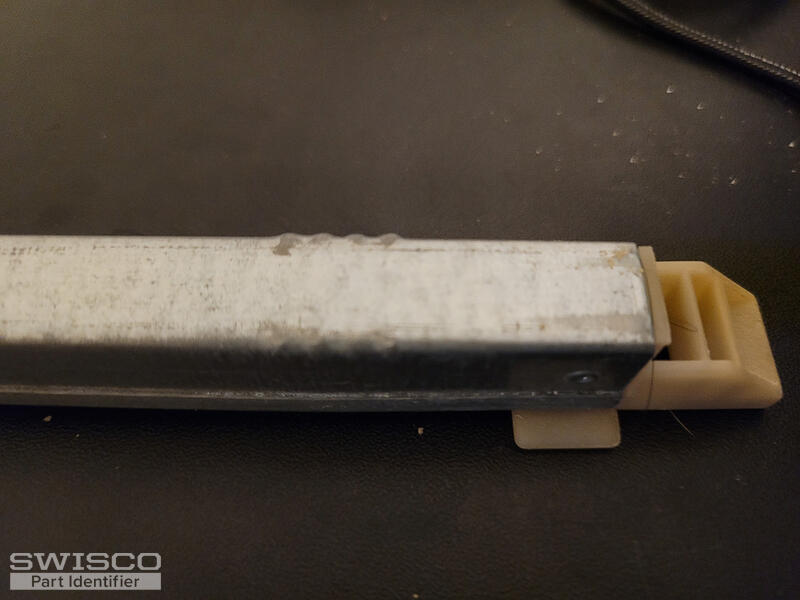

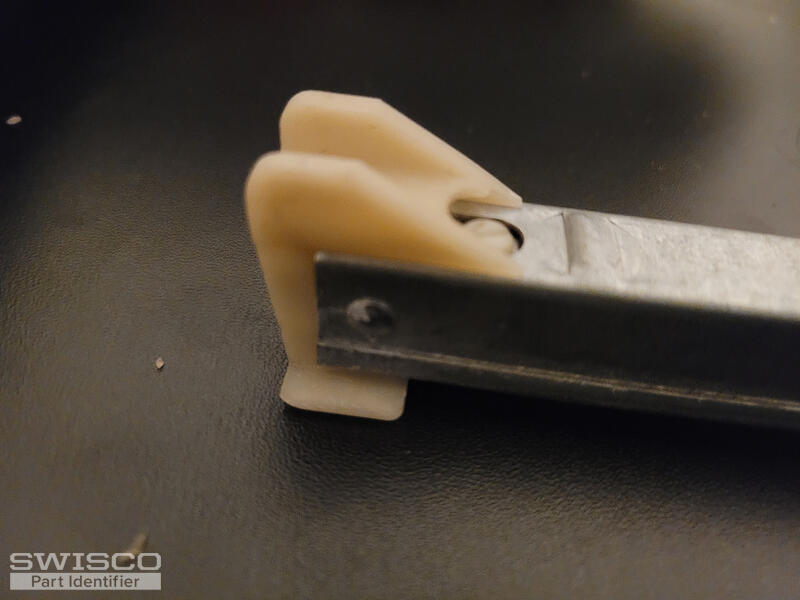

1" winged plastic on one side
1 3/4" winged plastic piece on the other

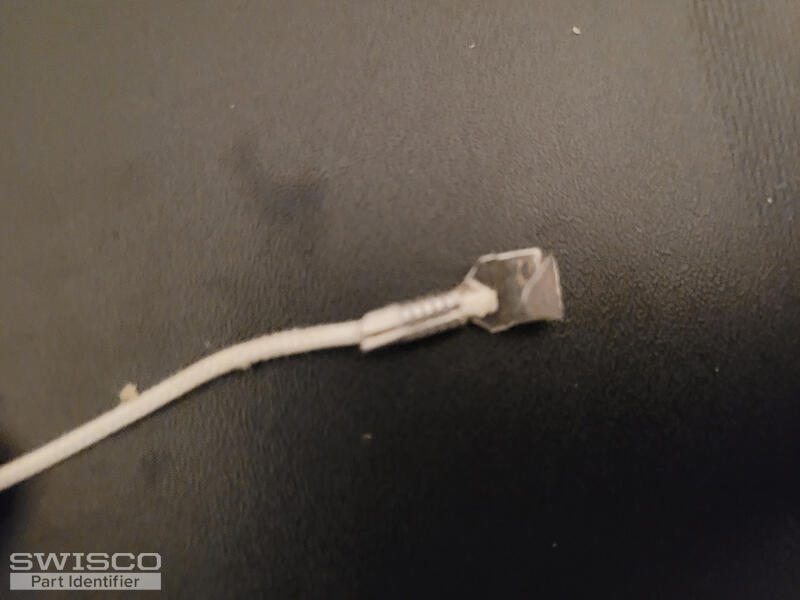

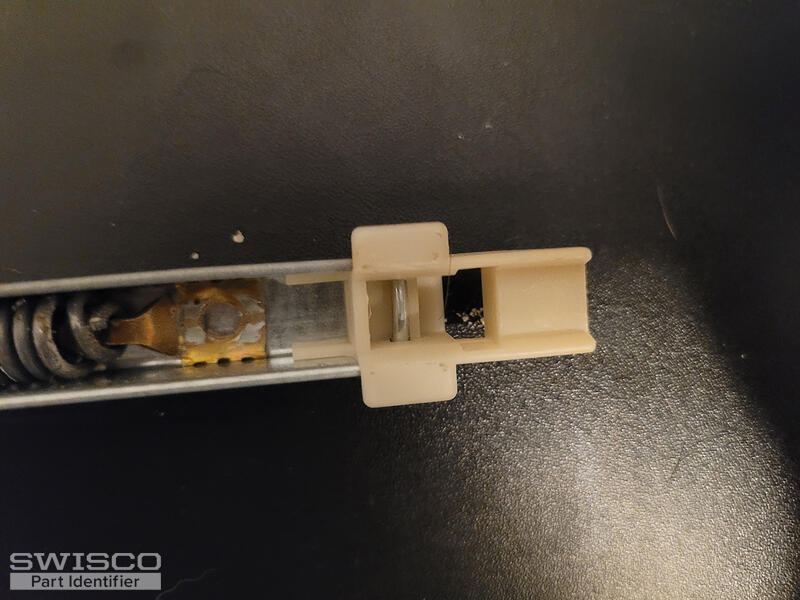

pics of all the things that seemed important
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

See our S380-27 or S385-27 Channel Balances. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the illustration below. For a new stamp option use 2650.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
