Two Window Casement Replacement hardware

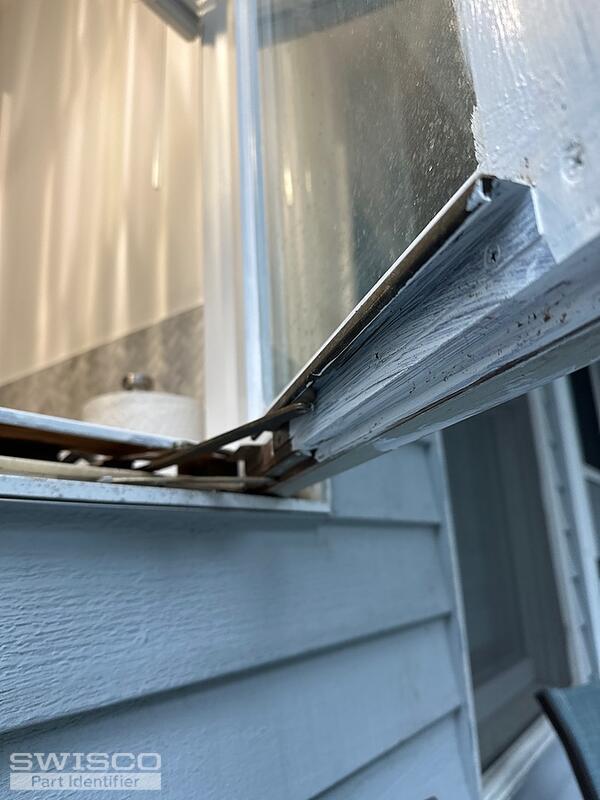

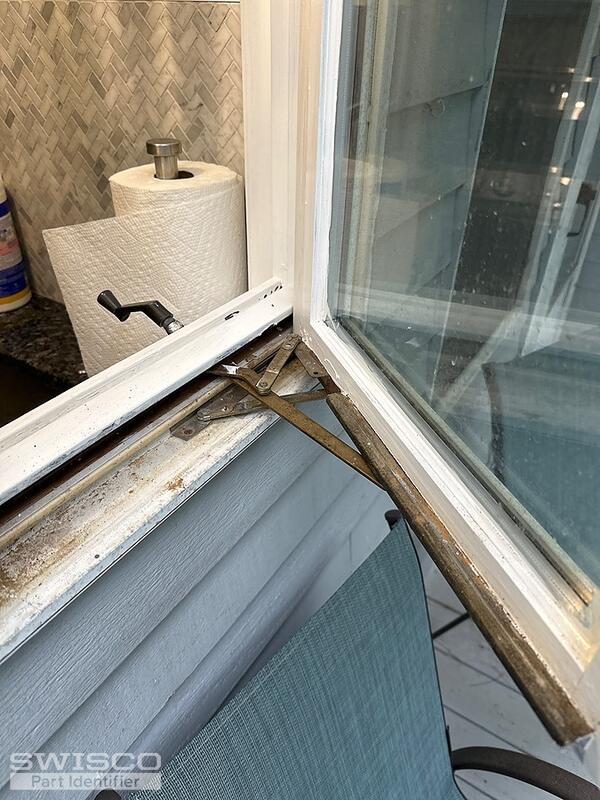

Hello! This operator appears to be a match for our 39-032. We also sell the 39-031 for the opposite side. Review the arm sizes before you buy anything just to be sure that everything matches.

For the cover and handle, see our 39-107 and 39-205, respectively.

Dimensions for 39-032

The cover and crank handle are going to be the 39-107 and 39-205 that I mentioned in my last post. For the locks and any other parts you need, I need a clear photo in each case. Seeing them removed would be ideal, but basically we need to see as much as possible of the part without obstruction. Figure that the less of it we can see, the less likely we'll be able to identify it.

Regarding removal of the operator, if your sill trim covers the screws then that sill trim will need to be removed. Fortunately it looks like you have a wood trim so it won't be all that difficult, you just need to make sure you don't crack it on accident. The video below will show you how this can be done.

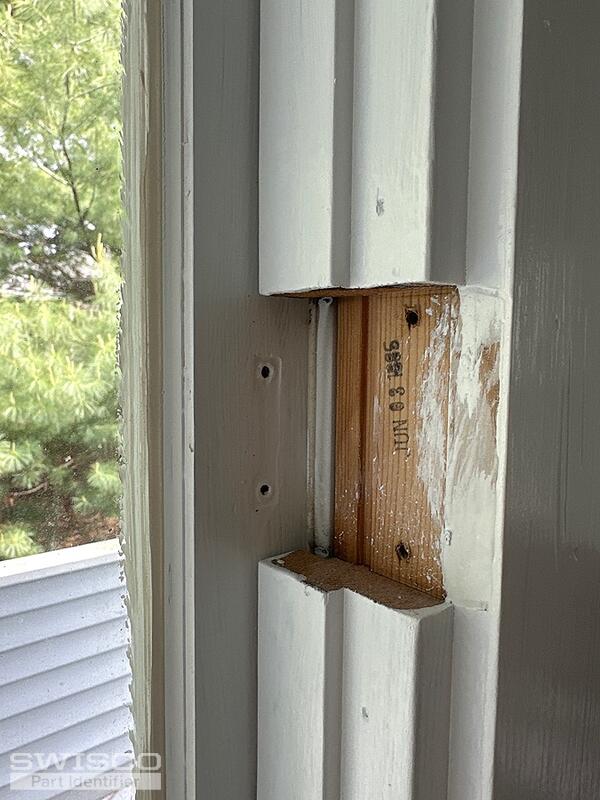

Would you happen to have the lock itself? I can't identify what you need from a missing part, unfortunately. Perhaps from another window in the house?

If you're referring to the detach clip on the link arm, then the operators I mentioned do come with them. They include all components you see on their respective store pages.
