Two bathroom channel balances needed -

A handy person from Huntington Beach, Ca. says:

Brad here again.

This is from my bathroom window. Another Kinro window. Window V.O is 27 1/2" x 36 5/8". The channel length is 17". That's the metal channel length. There's a serial # visible in pic 2. I would like to replace both sides.

Thanks!

Brad

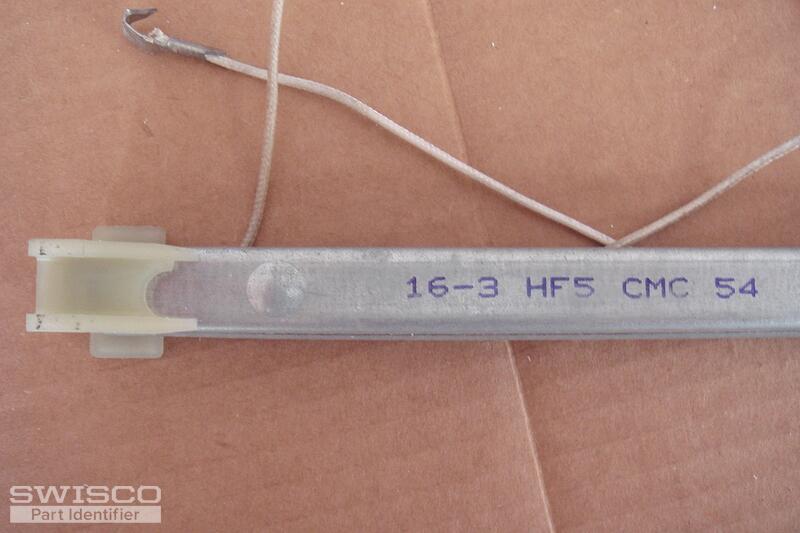

Thumbnail of the uploaded file named Bathroom Top 2.JPG

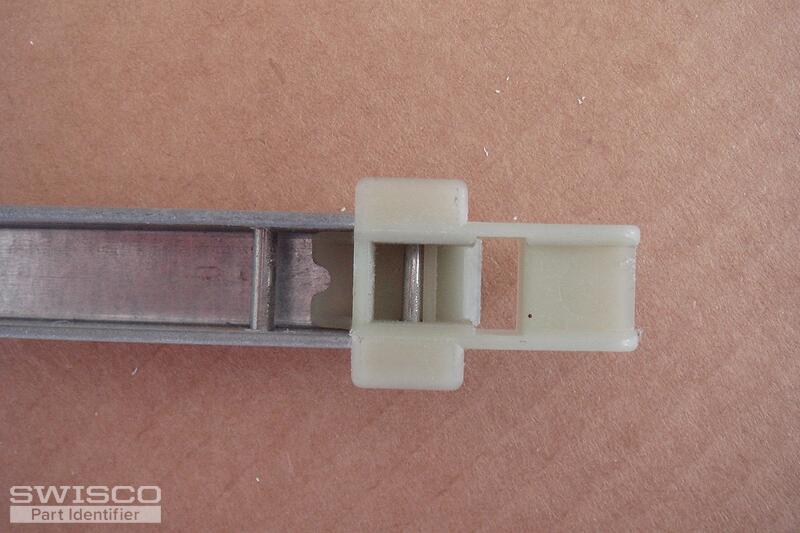

Thumbnail of the uploaded file named Bathroom Top 1.JPG

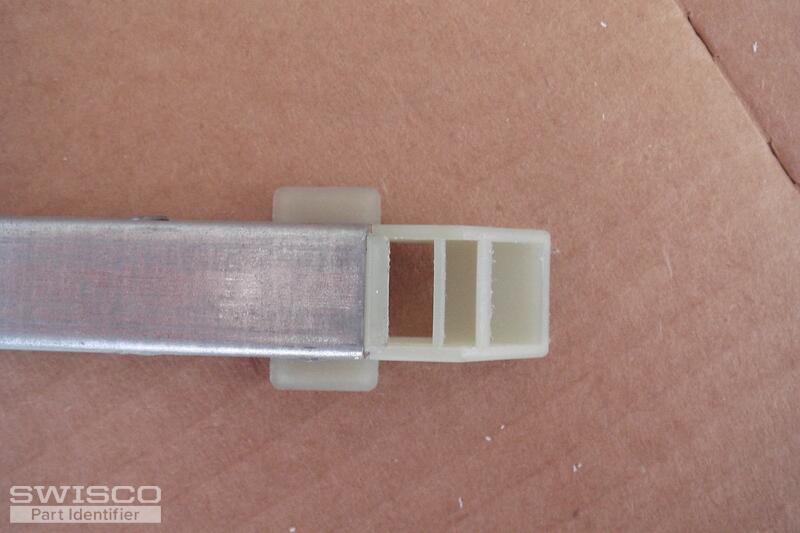

Thumbnail of the uploaded file named Bathroom Bottom 1.JPG

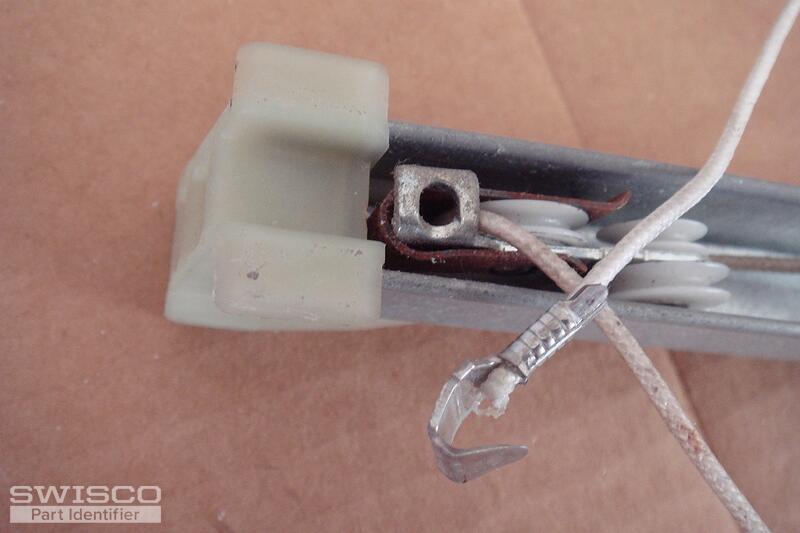

Thumbnail of the uploaded file named Bathroom Bottom 2.JPG
Profile picture of Casey
Casey from SWISCO responded:

With this combination of attachments, you could have either an S380-17 or S385-17 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1630 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
