Two-piece glazing bead for 1980s casement window

Handy Person from Southern Maine

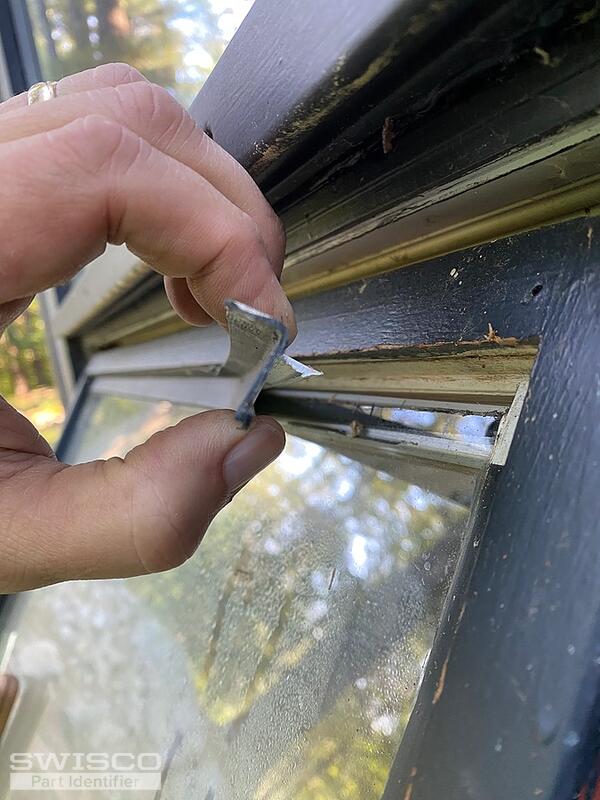

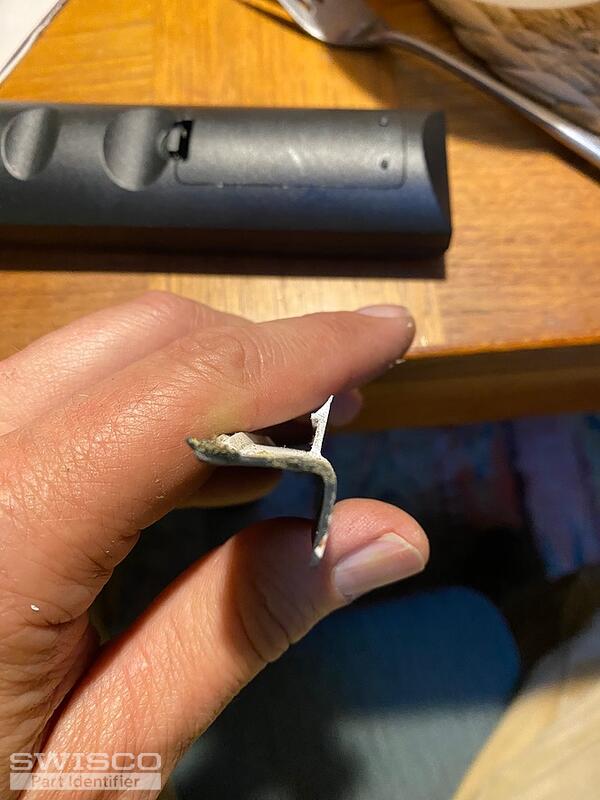

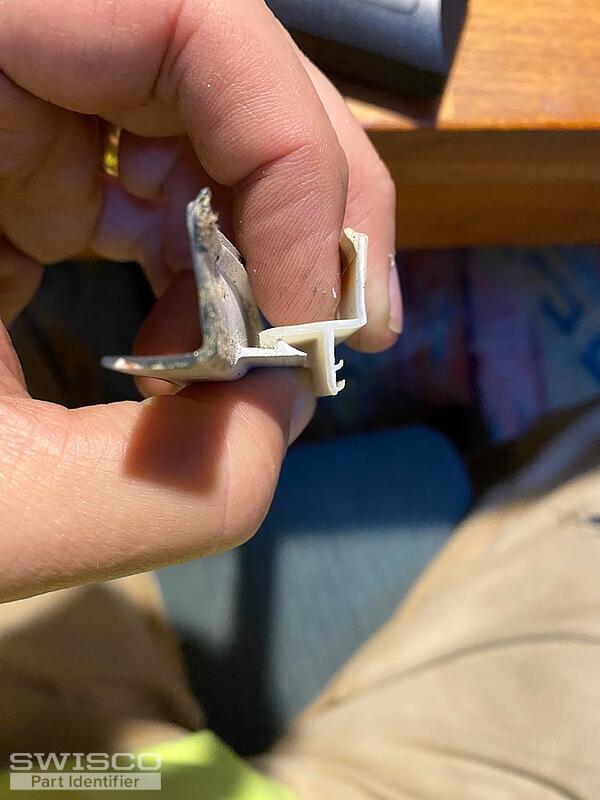

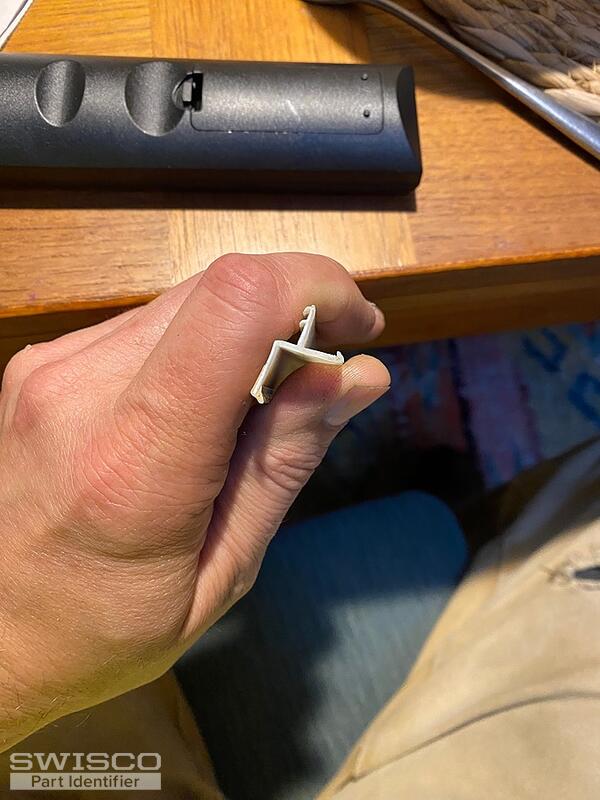

Hi I have been trying to identify this vinyl(?) glazing bead on my 1982 house. It is a two-piece external system where one strip fits into a slot in the wood frame with a double-barb and the outer strip that retains the glass snaps into place by interlocking with the inner strip.
I would really appreciate your help identifying and sourcing this system! Thanks!
-Rob
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Rob,

Thanks for reaching out to us! I'm afraid we do not have a glazing bead recommendation that will work to replace the one you have. The barbed part of yours is referred to as a kerf mounting style. While we have one that does have a kerf, it does not have the same shape as yours.

Given the age of the bead, I'm not sure that it is available any longer.

I apologize that we can't be of more help but please don't hesitate to reach out with any other questions you might have.

Reply to Thread
Current Photos:
