Two plastic cylinders at the bottom of a bifold door

A quick learner from usa says:

June 27, 2022

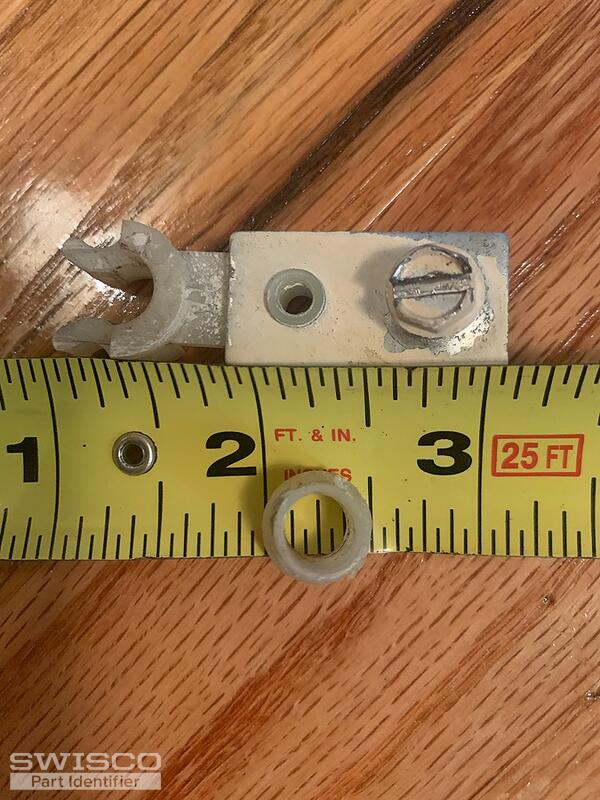

Swisco- I am in need of one of the u-shaped plastic pieces at the top of the photo and two of the plastic cylinders at bottom. These are from bifold doors that are probably 35 years old. Thanks, Joel

Thumbnail of the uploaded file named IMG_1325.jpg

Paul from SWISCO responded:

June 30, 2022

Unfortunately, I don't believe that your "U" shape fitting is available anymore. Our 23-134 pivot bracket might work, but it will depend on a few factors.

If possible, I would like to see what type of pin locks into this fitting. Also, are the nylon cylinders part of a another fitting?

A quick learner from usa says:

July 13, 2022

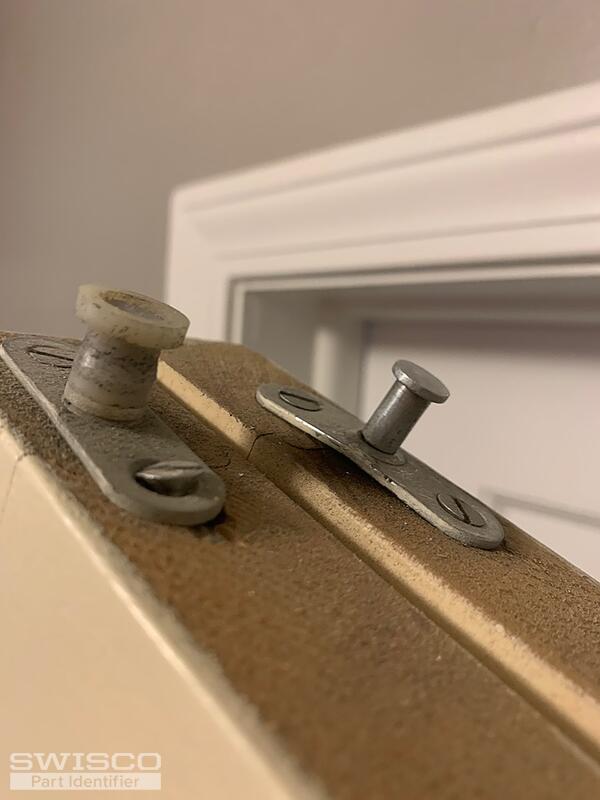

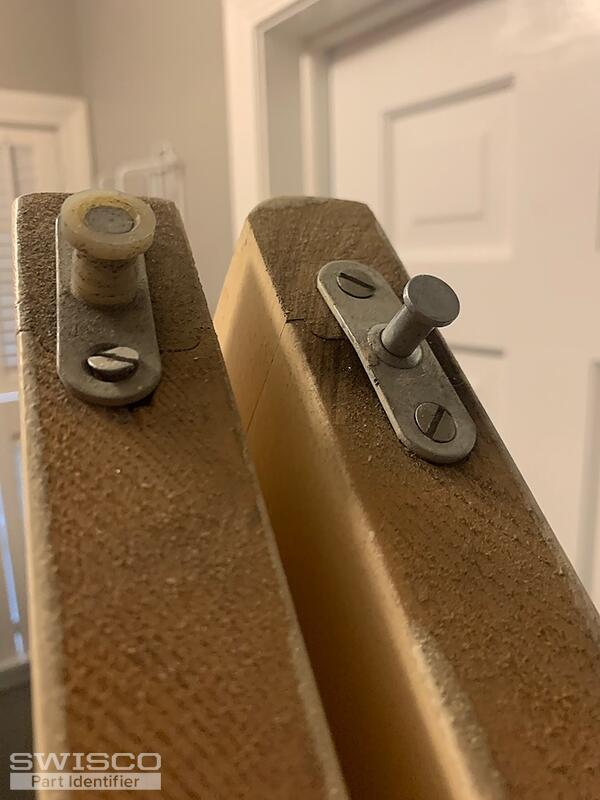

Here is another picture. This is the hardware on the top of the door.

Thumbnail of the uploaded file named 31E7C1E1-8556-444F-89AC-6A1F35088DC5.jpeg

Thumbnail of the uploaded file named 787AAC47-CDA5-4CA0-A69A-8D89AD77FA6C.jpeg

Paul from SWISCO responded:

July 14, 2022

Your top pivot appears to be an older version of our 23-182 . This should fit in the new style Johnson pivot bracket, the 23-134 . The nylon bushing is no longer used by Johnson for their bottom pivot bracket, though. The bushing is now metal and part of the bracket. You can review the photos on its store page/

Pivot Bracket Assembly
