Quick Learner from Naples Florida

Nov 4, 2024 6:53 pm

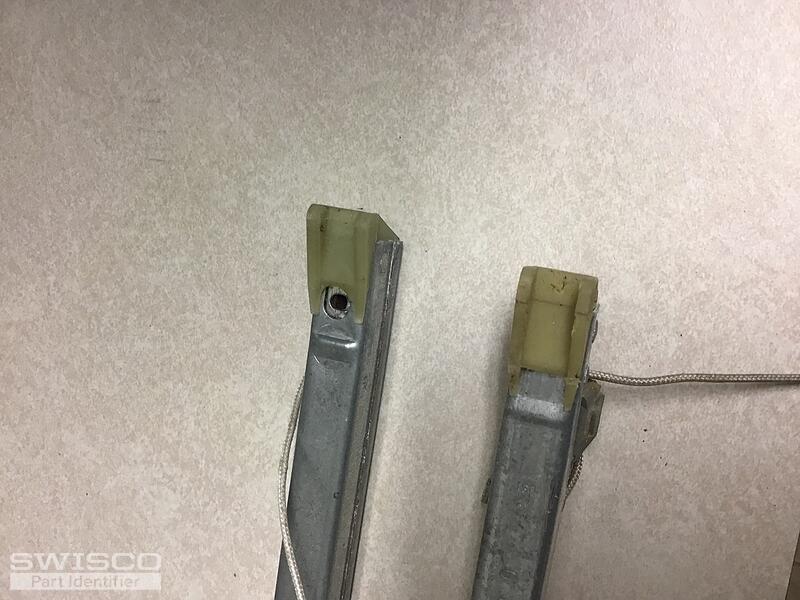

23-9 JX CMC 7
29-9 this balance also has a PL imprinted on it
I did enclose pictures to help out. If you need more information please contact me.
PGT Windows, about 20 years old

5 user uploaded images

4 Replies

Casey from SWISCO

Nov 6, 2024 10:07 am

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered.

We'll also need to know the exact weight of the sashes the 24" and 30" balances support since your stamp codes are from an outdated system. Thank you!

Quick Learner from Naples Florida

Nov 6, 2024 3:01 pm

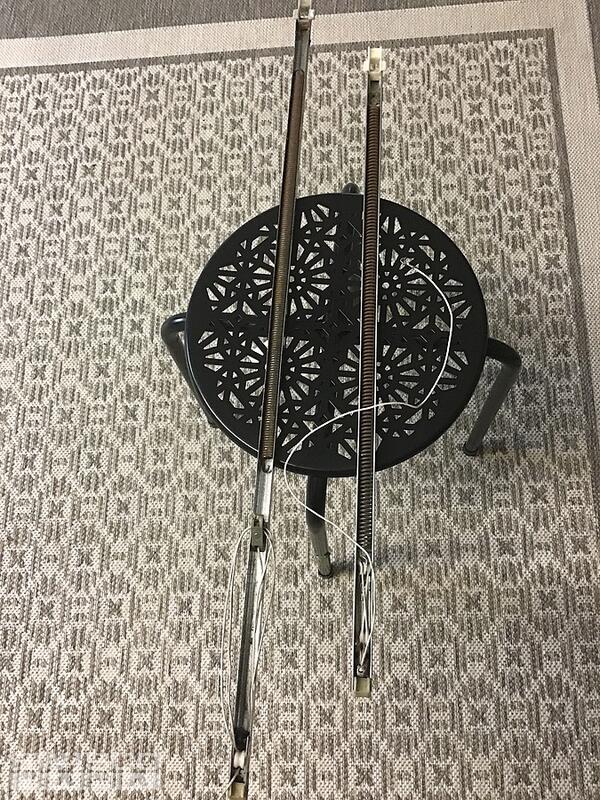

I am sending pictures of the two balancers with the spring showing. One is broke not sure if that's a problem.
One window weights 30lb.
One window weighs 40 lb.
Thank you,
Tom

1 user uploaded image

Casey from SWISCO

Nov 6, 2024 4:02 pm

Thanks for getting back to us. It looks like you would need the S395-24 and S395-30 channel balances. There are charts on the product pages that explain how to choose your strength options based on the weight of the sash for each balance length.

Close up view of the S395 balance top.

Close up view of the S395 balance shoe.
