Two windows needing hardware

Handy Person from huntington beach ca

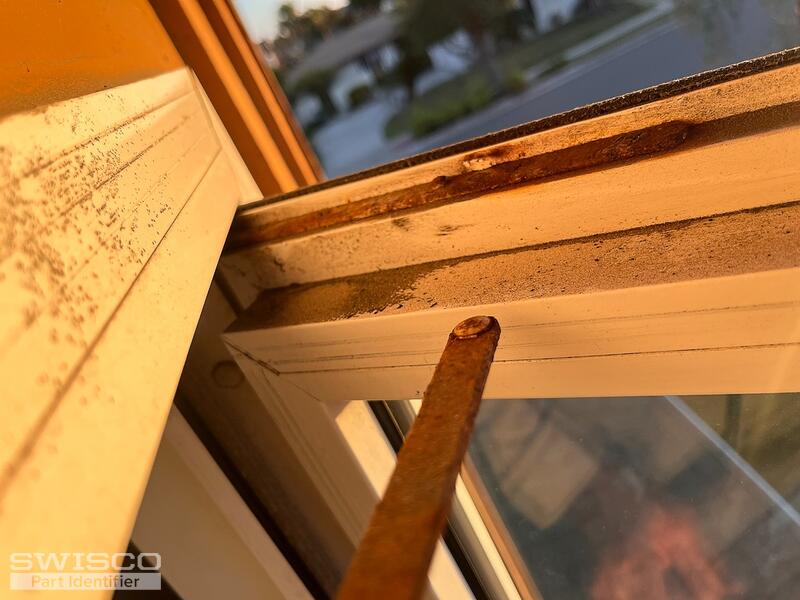

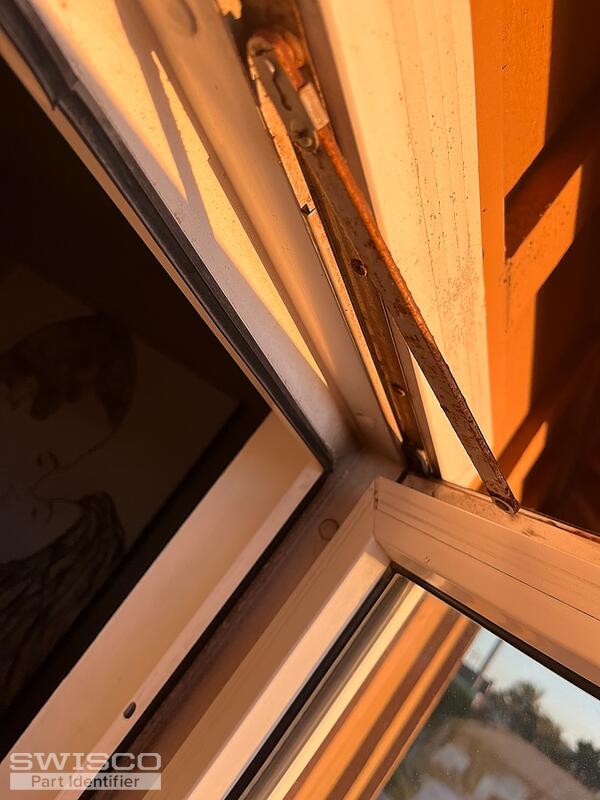

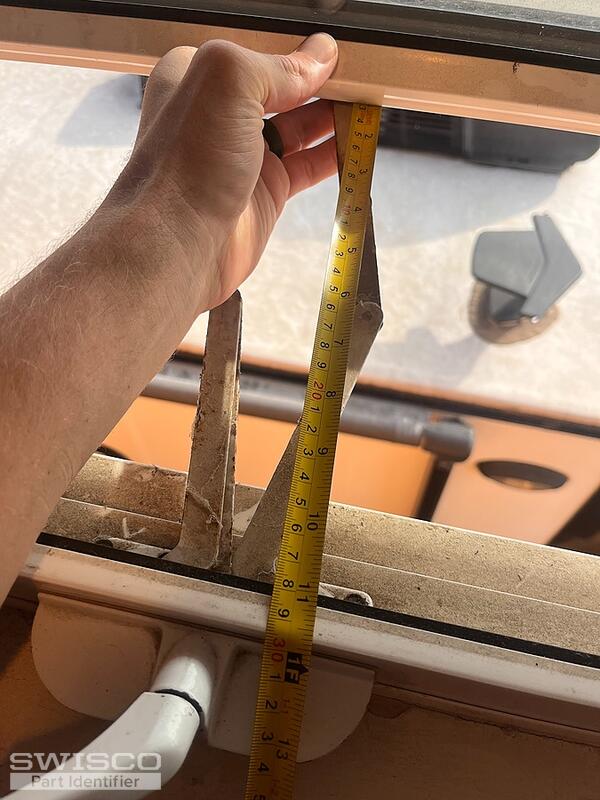

Looking for hardware for two different windows. Please reference the photos and the file names as I've labeled them "Window 1 and Window 2"

replacement Window 1 has a 3329 on the bottom plate. thanks!

4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Take a look at our video below that will help you confirm the correct Encore operator pair for your first casement window. The key difference would be the style of the track slider at the end of the long arm.

As for the second awning window, compare the specifications of the 39-143 and 39-140 to determine if one of them could work for your application. Thanks for posting!

Dimensions for 39-143
Dimensions for 39-143

Dimensions for 39-140
Dimensions for 39-140

Handy Person from huntington beach ca
Hi thank you for this!

Do you happen to know what the top track part number is?
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

It looks like you have hinges similar to the 36-048 but the determining factor would be the length of the base attached to the window sill, which measures 10" long on our replacements. If so, just keep in mind that the top and bottom hinges would need to be replaced at the same time.

Detail of 36-048
Detail of 36-048
