UB 28D window balance

A quick learner from Bradenton Florida says:
March 30, 2022

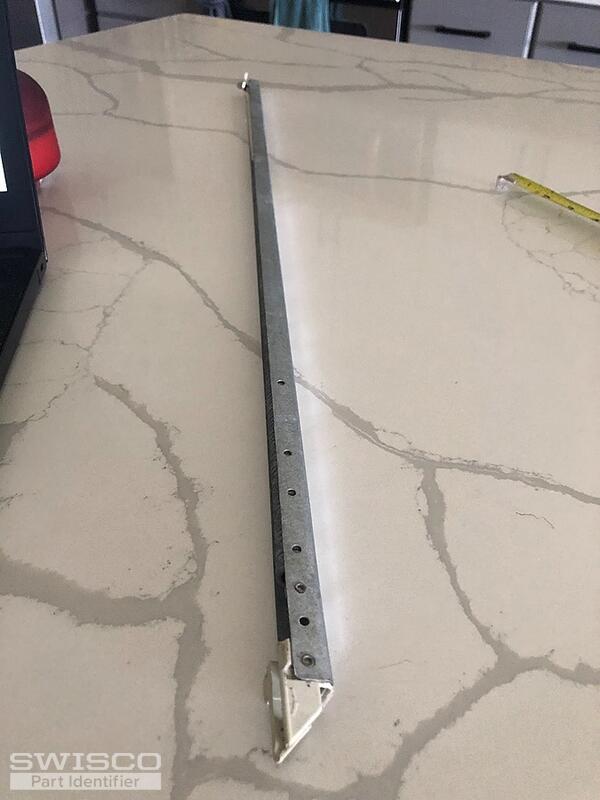

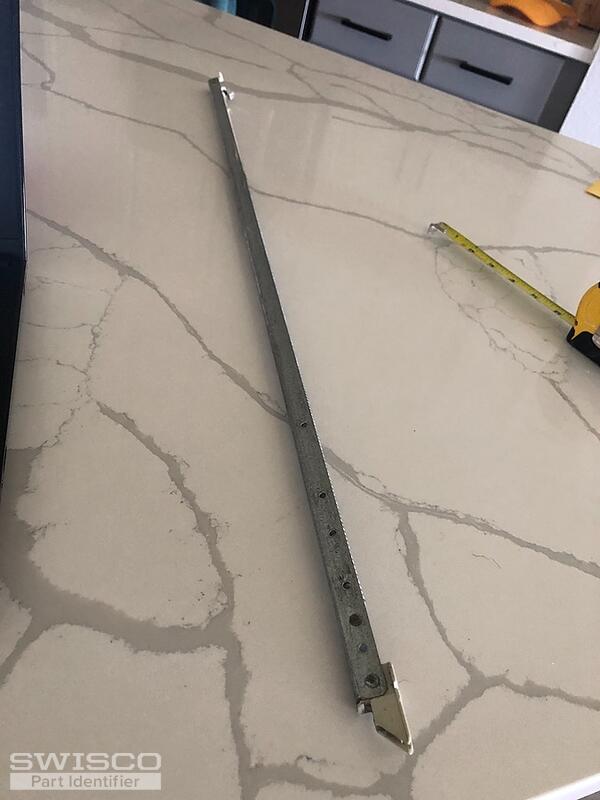

Sash weighs 28lbs. Balance is 1/2" wide. Please advise replacement options including shoes.
Thanks!
Thumbnail of the uploaded file named D9E623C2-28B0-4F04-A0A7-962FA0C6C3A3.jpeg
Thumbnail of the uploaded file named 9A5B14E9-0559-4822-BF0A-397F609C0414.jpeg
Thumbnail of the uploaded file named 1E8E0F95-0F82-4E39-A9E5-74D93A780605.jpeg
Thumbnail of the uploaded file named 25A00111-C90E-4038-BD28-29837BAEA63F.jpeg
Thumbnail of the uploaded file named 98F59850-E90C-48CB-BC4D-4B1DBCCB7850.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 30, 2022

Thanks for your photos. Based on what I see here, you have either our Series 380 or Series 385, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Bradenton Florida says:
April 6, 2022

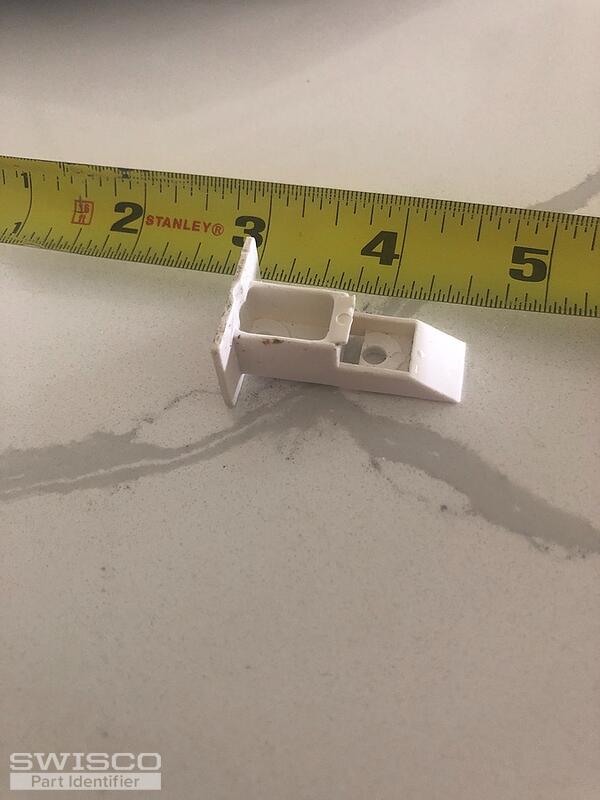

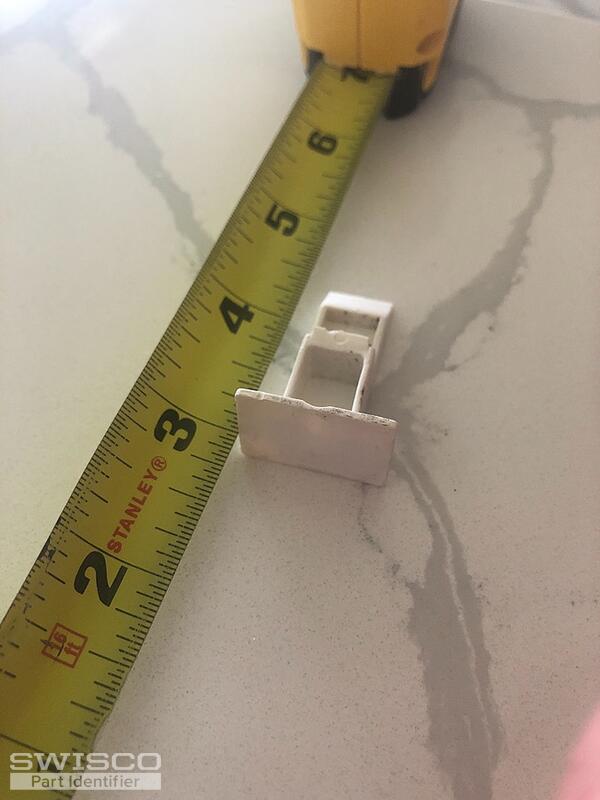

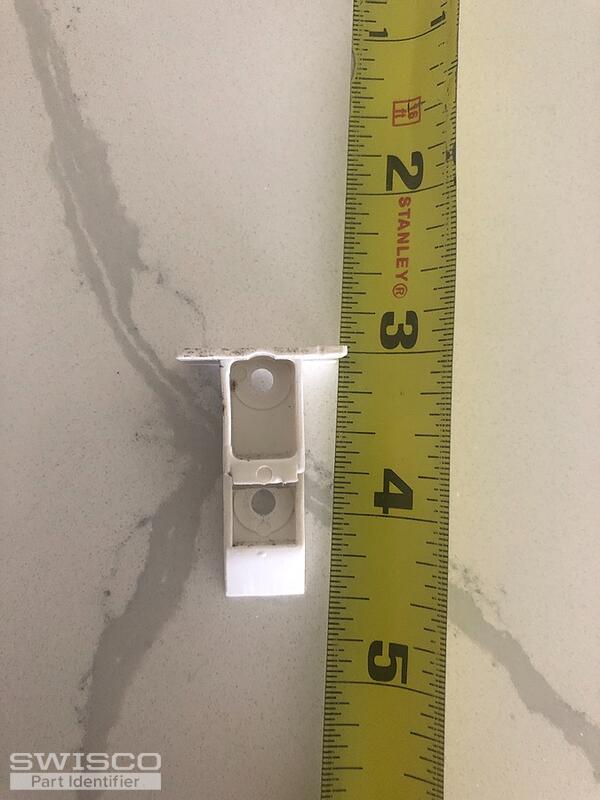

Thank you! Can you also please advise replacement for this guide?
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 7, 2022

Sure, that looks to be a match for our 18-180. I feel confident this is what you want but as before you should check the dimensions to confirm they align.

Detail of 18-180
Detail of 18-180

Side view of 18-180
Side view of 18-180
1/2" Top Sash Guide
1/2" Top Sash Guide
18-180
$1.67
