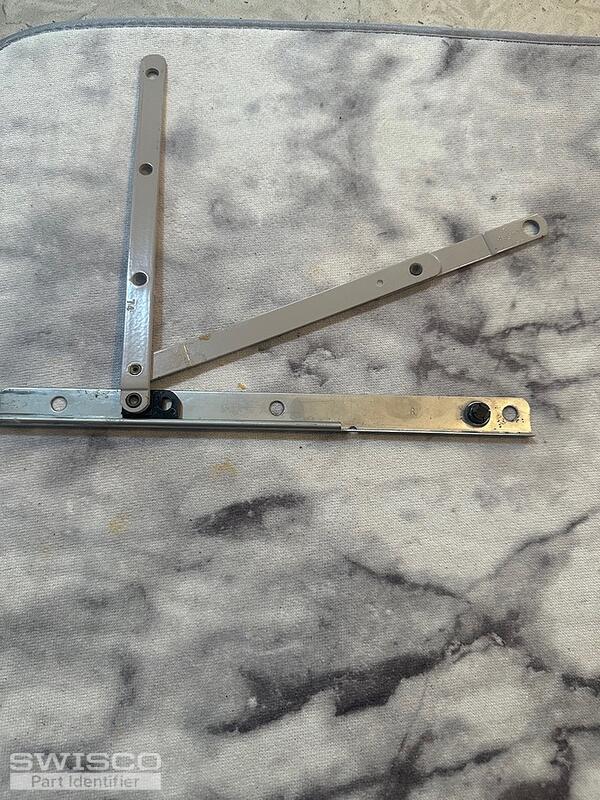

CAN YOU PROVIDE THIS PART?
"74" STAMPED ON SHORTER ARM
"R" STAMPED ON SS PLATE
NO OTHER ID OR MARKINGS
THANKS FOR YOUR HELP
DAN

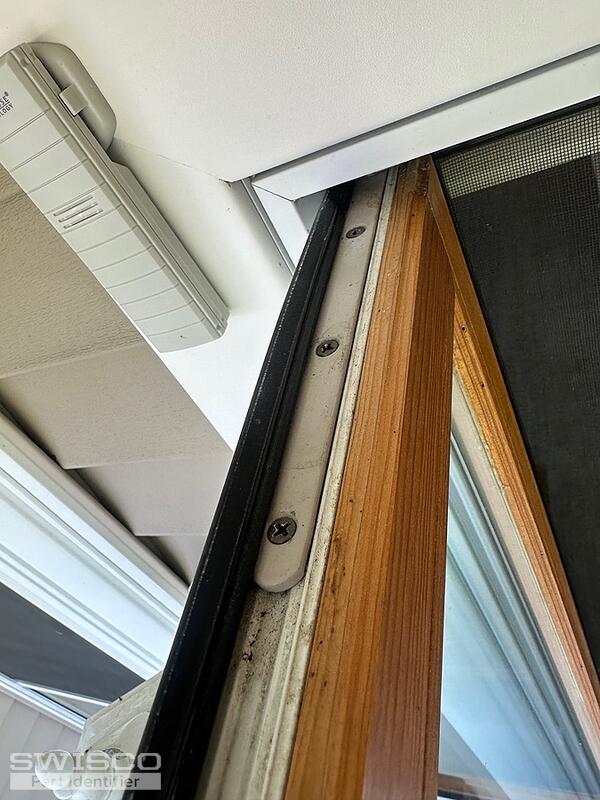

UPPER CASEMENT "HINGE"?
Quick Learner from WI
May 6, 2024 10:18 am
3 user uploaded images
4 Replies
Emily from SWISCO
May 8, 2024 1:34 pm
Hi there Dan.
Thanks for reaching out to us. We don't sell this exact hinge, regrettably. However, take a look at the 36-048. Carefully review the specifications and see how they compare with your old assembly. We just recommend you replace the top and bottom hinges at the same time.
Detail of 36-048
Additional dimensions for 36-048
Quick Learner from WI
May 8, 2024 3:13 pm
Thanks Emily

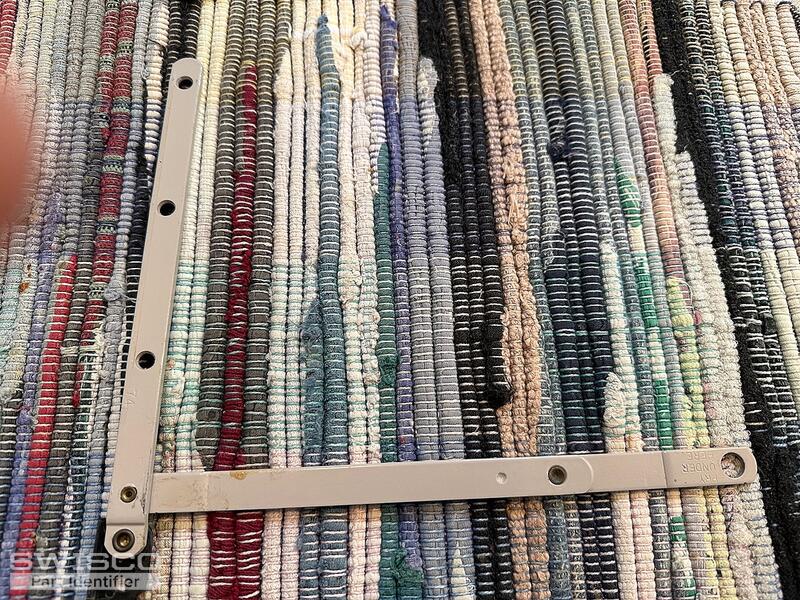

Unfortunately, my part is not the same dimensionally to the part you suggested.
Per figure 2 (Additional Dimensions), the horizontal arm is 8 3/4" overall and hole spacing is 8 1/16"
Also, the horizontal arm is mounted 1/2" above the plastic guide.
I've attached a photo. I help you have another option. Thank you
Dan
Unfortunately, my part is not the same dimensionally to the part you suggested.
Per figure 2 (Additional Dimensions), the horizontal arm is 8 3/4" overall and hole spacing is 8 1/16"
Also, the horizontal arm is mounted 1/2" above the plastic guide.
I've attached a photo. I help you have another option. Thank you
Dan
1 user uploaded image
Emily from SWISCO
May 9, 2024 11:12 am
I'm sorry to say that this part is the best option we have in our inventory. Our return policy can be found here just in case. I truly apologize that we can't offer a suitable replacement option.
