U.S.B 24B Window Channel Balance

Quick Learner from Ontario Canada

Jun 22, 2025 2:54 pm

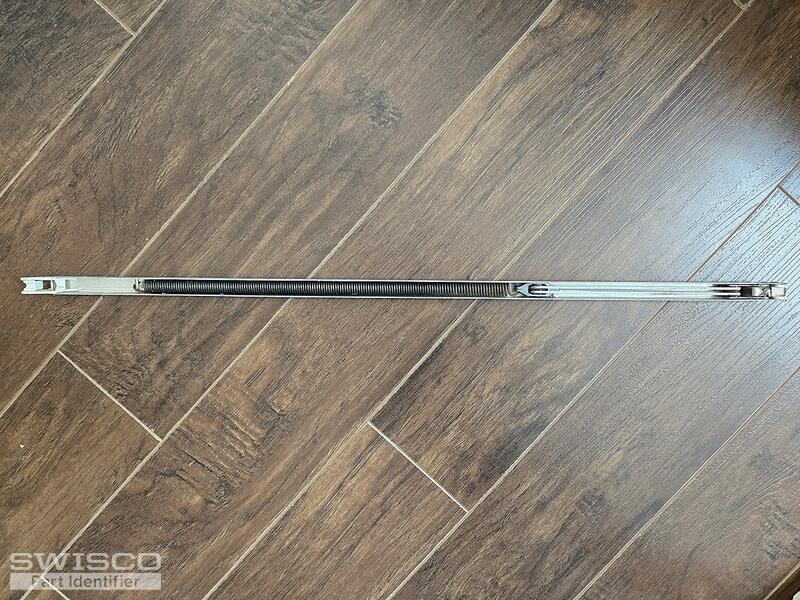

Can you please help identifying a replacement for my window balance (for non-tilted). The metal part is 25" long and it has U.S.B 24B. Thanks.

4 user uploaded images

4 Replies

Bob from SWISCO

Jun 22, 2025 3:48 pm

Hey there. It looks like you have either an S351-25 or S390-25 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe. See below. IN either case, for a stamp option choose 2420.

Comparison of the S351 and S390 balance shoes.

Quick Learner from Ontario Canada

Jun 23, 2025 7:19 pm

Hi There, thank you for your advise. Appreciated.

Bob from SWISCO

Jun 24, 2025 3:12 pm

My pleasure. Let us know if you have further questions.
