Unable to find a replacement for the darker small plastic part : SWISCO.com

Quick Learner

Feb 23, 2023 7:07 am

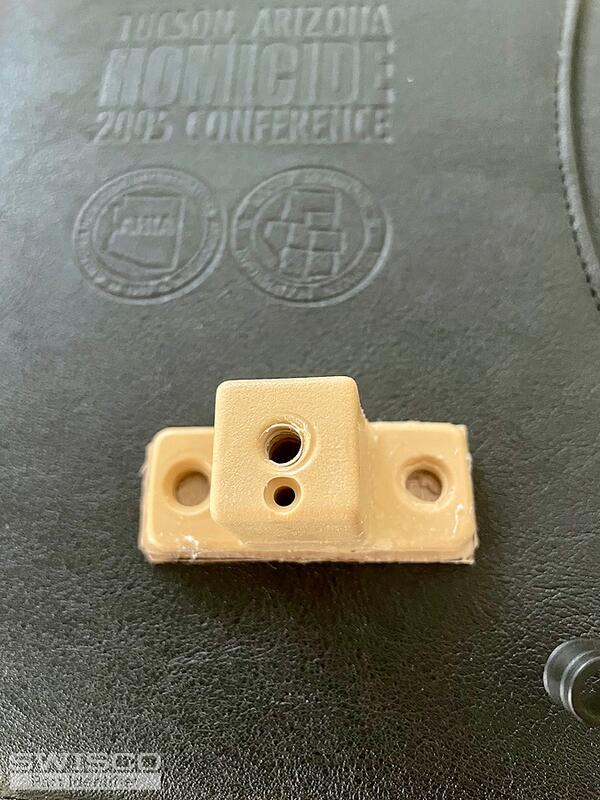

Cabinet bracket is held by a small plastic part as seen in the picture. I am not able to find a replacement. Cabinet maker has been outbid business for many years. Local stores do not carry this part.
No numbers on part.

2 user uploaded images

4 Replies

Tom from SWISCO

Feb 23, 2023 11:24 am

Hello! We carry several drawer spacers that may very well replace this, depending on what size you need. See our 32-334 and 32-339 to start out. Review their dimensions below to determine the best fit for this application.

Alternate image for 32-334

Alternate image for 32-339

Home Owner from AZ

Feb 25, 2023 3:51 pm

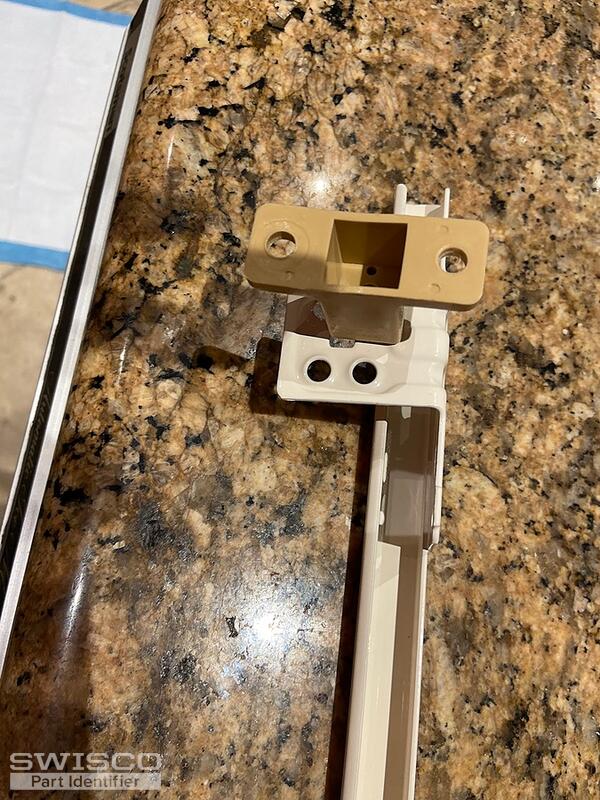

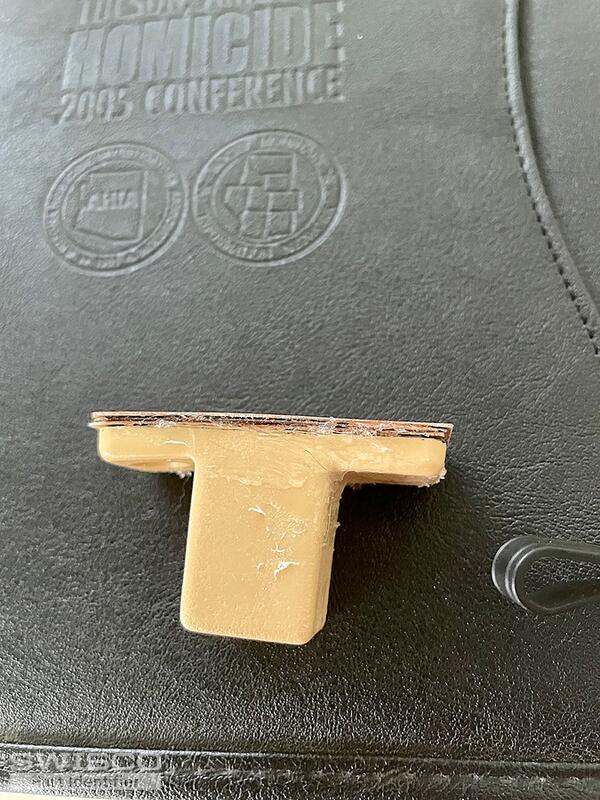

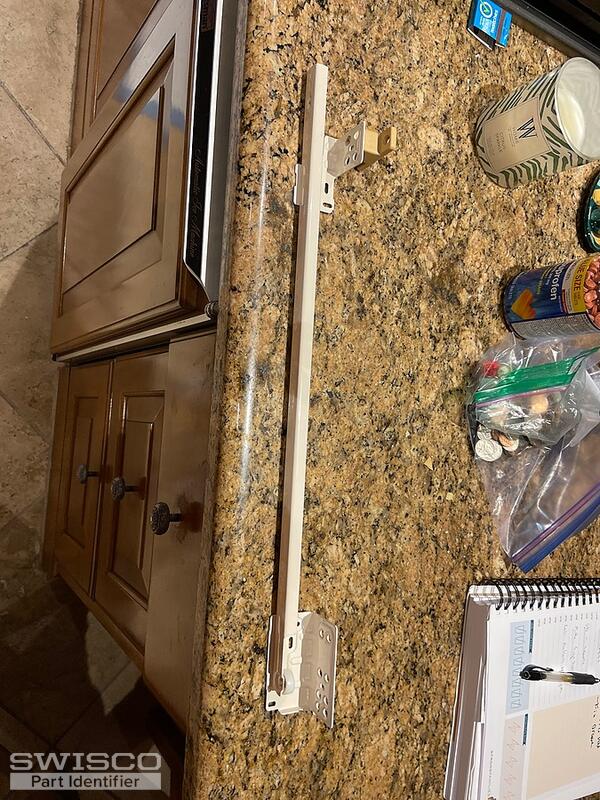

Here are some better pictures . This is holding a kitchen drawer.
A friend of mine is not able to locate the drawer spacer. Anything you have that might work?
Thanks!!!!

3 user uploaded images

Tom from SWISCO

Feb 27, 2023 9:49 am

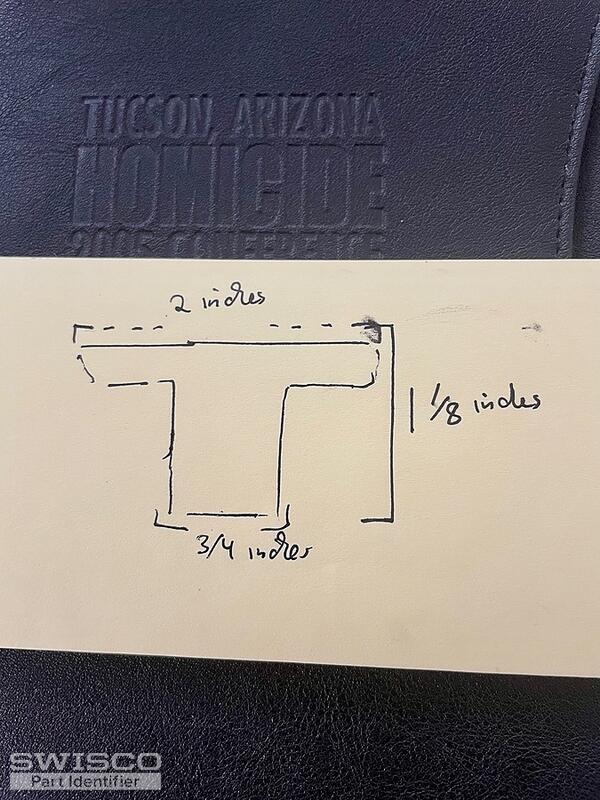

Looks like your spacer is 1-1/8" deep, which is the most important measurement here. We don't sell anything with that precise size, but I think you could use our 1" deep 32-339 anyway. You would just have to pack it out with a washer or two to make up that missing 1/8".

Keep in mind that you will almost certainly have to drill new installation holes to get this to work, but that's fairly common for this kind of thing.
