Unidentifiable Parts Needed

A handy person from Brooklyn, NY says:
May 17, 2021
Hello, I hope this finds you well. I am trying to fix my window and need two specific parts to do so. I need a coil, specifically the one shown in the attached photo, and a coil balance shoe as shown in the second photo. Please help direct me to identifying the right parts I can purchase from SWISCO to fix my window. Thank you in advance.
Thumbnail of the uploaded file named Resized_Resized_20210517_183321.jpg
Thumbnail of the uploaded file named Resized_Resized_20210517_183945.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 20, 2021

We can definitely help, but I'll need a bit more information. First, can you tell me how thick the spring is? You also mentioned a shoe, but I don't see one in your photos. Just the spring and the cover. Do you have the shoe for me to see?
A handy person from Brooklyn, NY says:
May 22, 2021
Thank you Mr.Tom, the spring is a half inch thick. I've attached the photo of the shoe, I did not realize I didn't attach the photo before. Thank you for reaching out, hope this'll suffice. I will also include 3 photos of the same sticker on my window, perhaps the shown details may help. Thank you again.
Thumbnail of the uploaded file named 20210522_203113.jpg

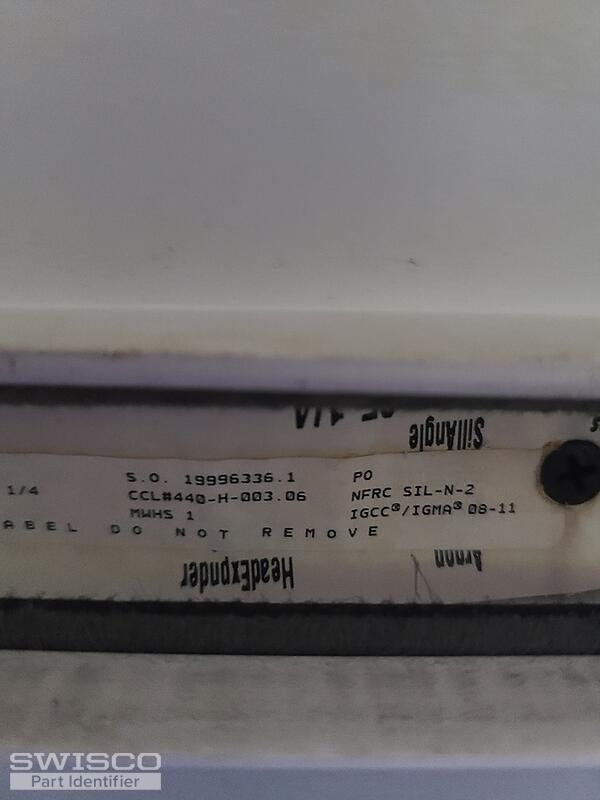

Thumbnail of the uploaded file named 20210522_203109.jpg
Thumbnail of the uploaded file named 20210522_202924.jpg

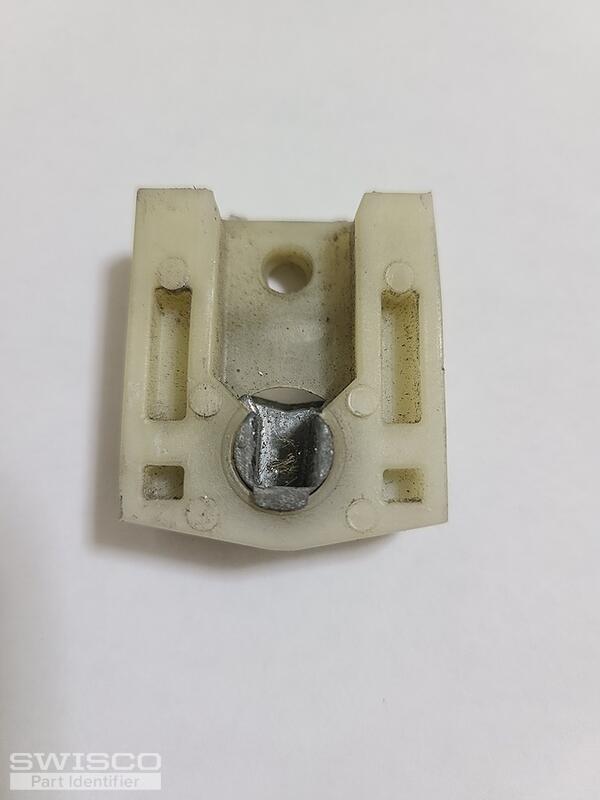

Thumbnail of the uploaded file named 20210522_202612.jpg

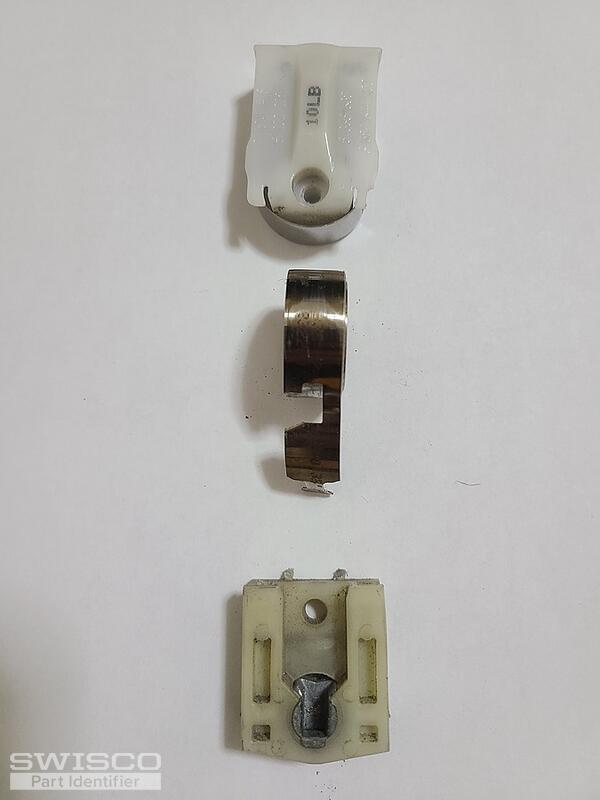

Thumbnail of the uploaded file named 20210522_202748.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 24, 2021

Perfect, this is exactly what I needed. Your shoe here is the 15-228, which is designed to be used with the Series 160 coil. This just happens to be 1/2", too, so I think we have a winner. See our S160-10, since yours says it's rated for 10 pounds.

Finally, if you also needed that plastic cover, see our 15-150S single spring support.
A handy person from Brooklyn, NY says:
May 24, 2021
Thank you so much, I have just finished purchasing all three items! Thank you again for your help, I really appreciate it. You're the best!
A handy person from Brooklyn, NY says:
May 24, 2021
P.S I bought all three items from SWISCO! Thanks!
Profile picture of Tom
Tom from SWISCO responded:
May 24, 2021

Awesome, thanks for your business! It means a lot. Please let me know if they work out, or if you run into any issues. We're always here to help.
