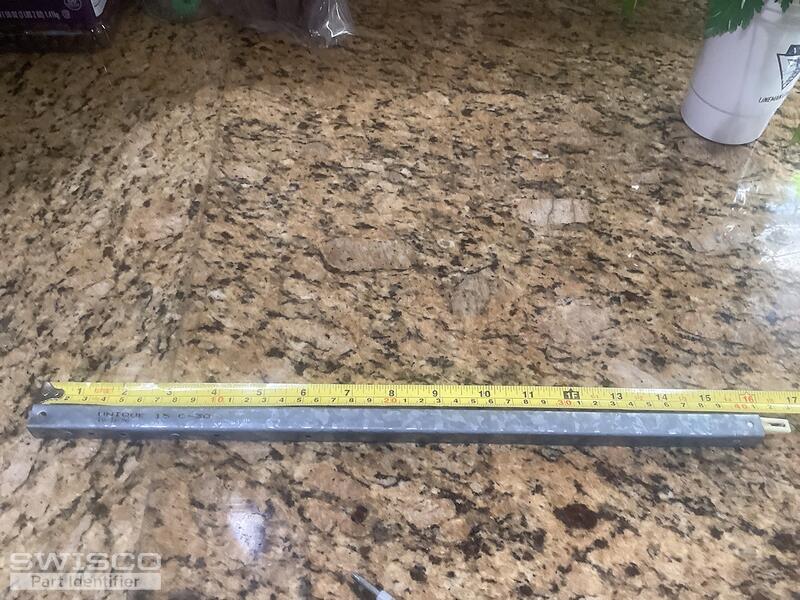

Unique 15 C 30 dated 10/31/96

Question

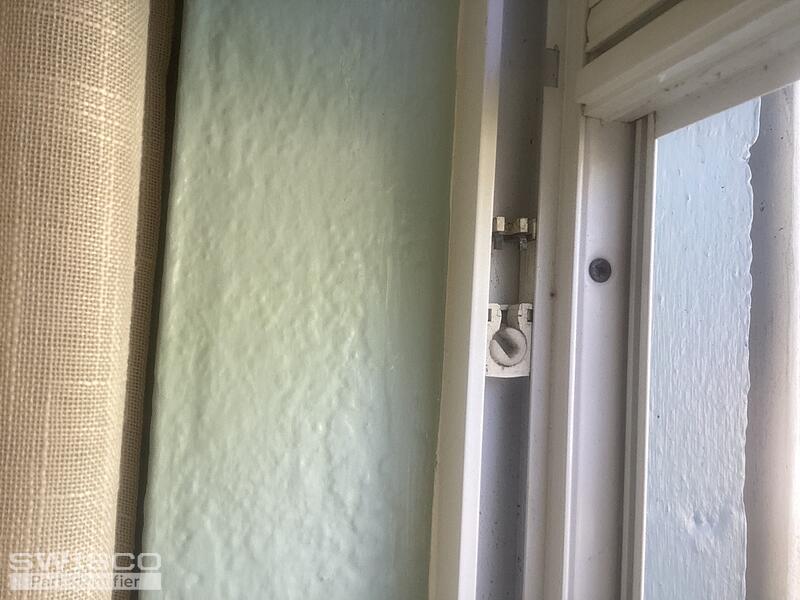

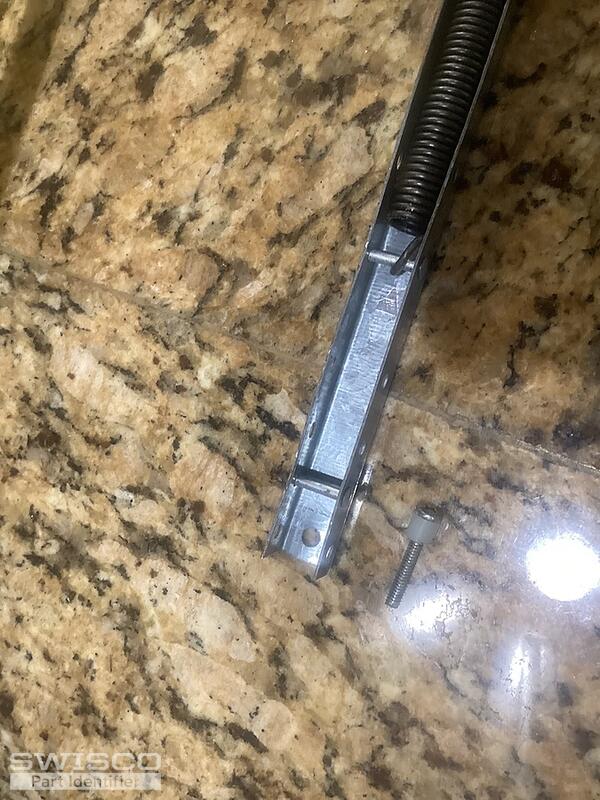

I need 6 channels with the springs, the springs are broken. Some of the plastic connections are broken. I also can use the plastic molding that goes around the window in the inside.

Paul · Accepted Answer

Hello,

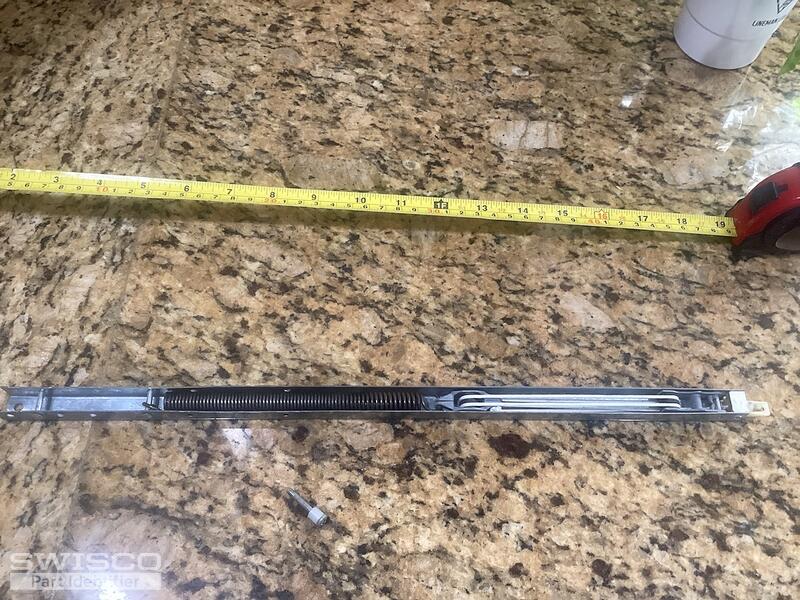

Your channel balance resembles the S770-16, which uses the 15-043 die-cast terminal clip. The spring strength option would be (16C) for a sash between 10-16 lbs.

Close up view of the Series 770 balance top.

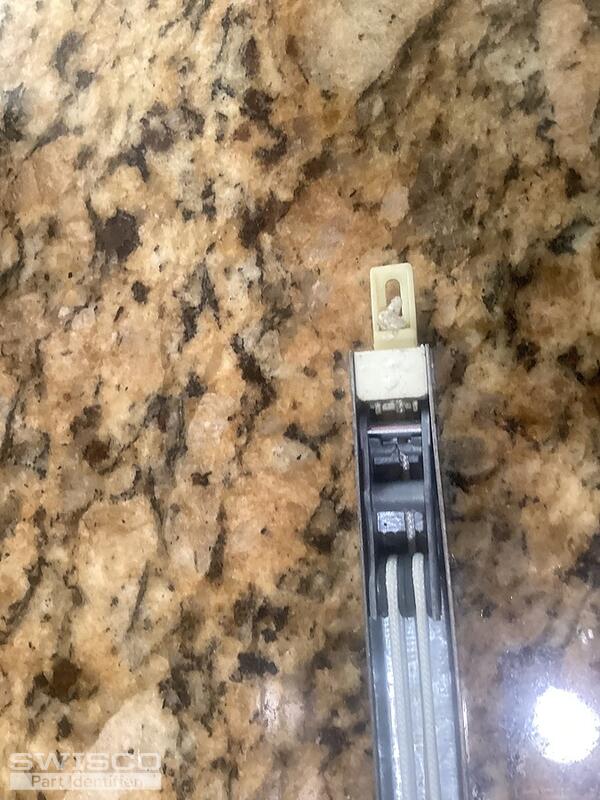

Close up view of the Series 770 balance bottom.

It sounds like you may also be looking for new glazing bead that holds the glass inside the sash frame. If so, we'd need to see a clear end profile photo of an intact piece removed from the sash to compare to our inventory. Thank you!
