Unique 28-F-60 CO3 / 11 : SWISCO.com

Quick Learner from USA

Mar 22, 2024 3:36 pm

Swisco:

Seeking (2) replacement balances for same window, left and right side.

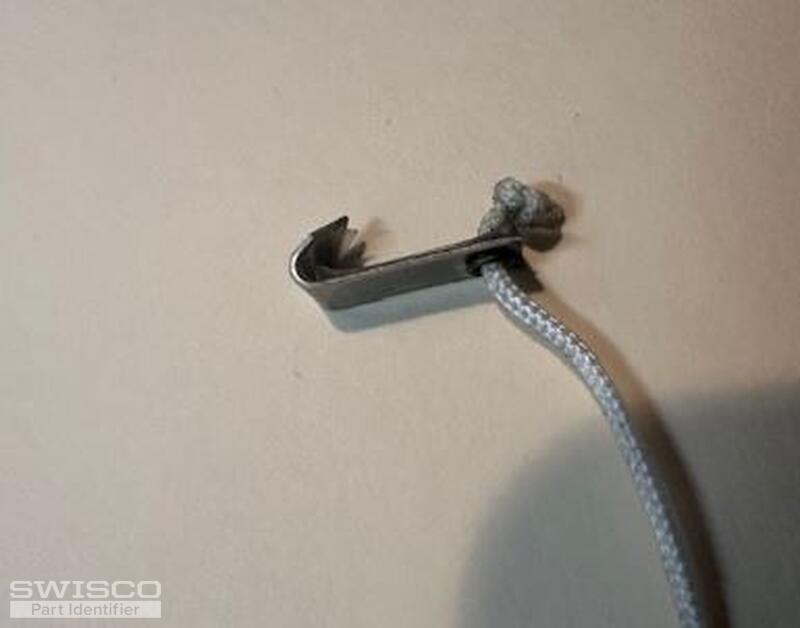

Photos below.

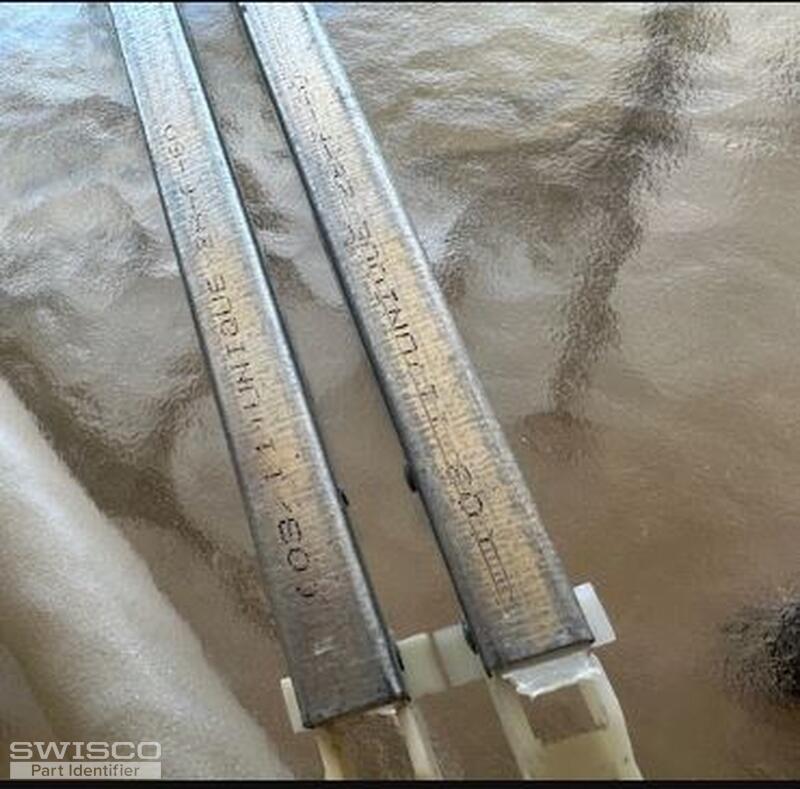

Stamped on existing balances --- CO3 / 11 Unique 28-F-60

Can you provide these, part number and price?

Thank you,

5 user uploaded images

4 Replies

Lauren from SWISCO

Mar 25, 2024 10:00 am

Hello, thank you for posting,

To further review, are you able to confirm the length of the metal channel excluding the attachments along with the depth of the bottom shoe? From there we can confirm the correct series for your window. Thank you!

Comparison of 15-004 and 15-005

Dimensions for 15-029

Quick Learner from USA

Mar 25, 2024 10:51 am

Thank you for your response.

The metal channel length is exactly 29 inches.

The depth of the bottom shoe is closer to 7/8" so use part 15-029.

Jerry

Lauren from SWISCO

Mar 25, 2024 11:48 am

Thank you,

We can custom assemble the balances with the 19-005 top and 15-029 shoe. The balance will be 29 inches with a 2860 stamp option that can support a 32 to 35 lb window sash. We recommend weighing the sash to confirm the weight falls into this range as the balances are nonrefundable.

I have sent over a separate email with an order link for (2) balances with pricing. Please review and let us know if you have any additional questions!
