Unknown Replacement Vinyl Window Swing Lock

Start a new Discussion

Home Owner from Whitman MA

Sep 16, 2024 10:13 pm

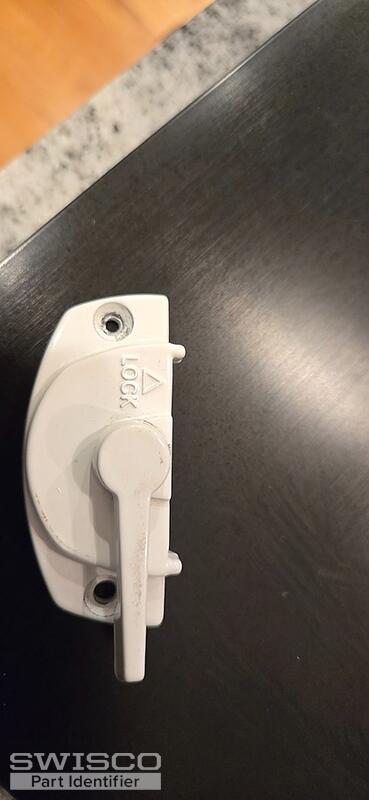

Holes measure 2 1/4 inches
White Round
White Vinyl Window Double Pane with
Inserts 6 sections bottom, 6 on top

5 user uploaded images

4 Replies

Emily from SWISCO

Sep 19, 2024 2:29 pm

Hello there!

Thanks for reaching out to us. Is the installation hole center spacing 2-1/4"? If so, the 90-180 appears to be our closest match though it differs in style. Note that the backset is 3/8" so you'll want to confirm. Take a look at the specifications and see what you think.

Dimensions for 90-180

Dimensions for 90-180

Home Owner from Whitman MA

Sep 19, 2024 5:18 pm

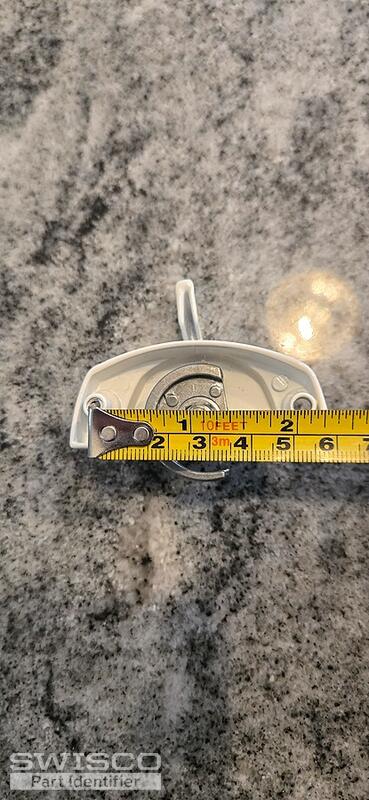

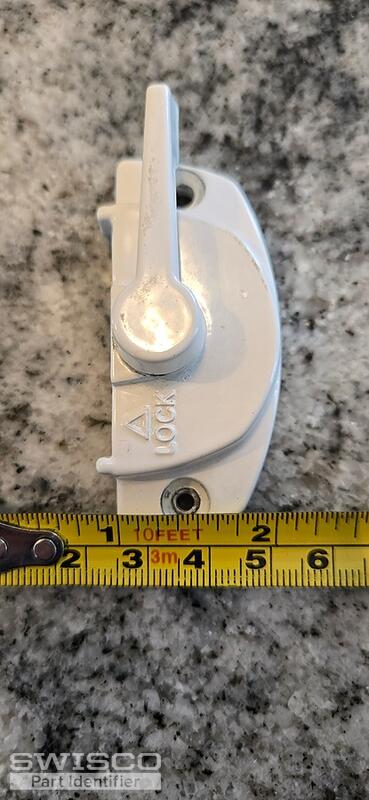

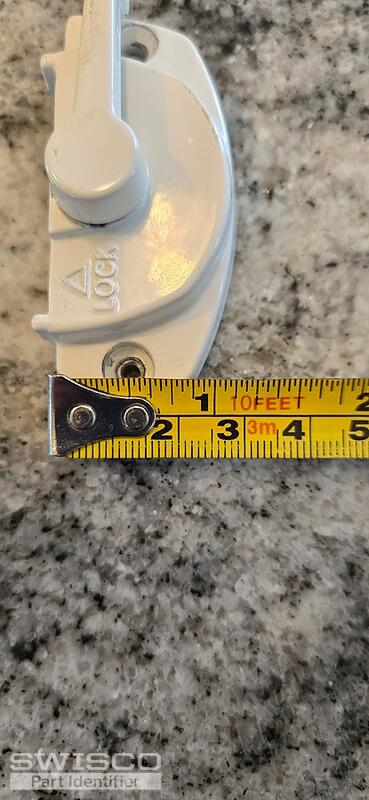

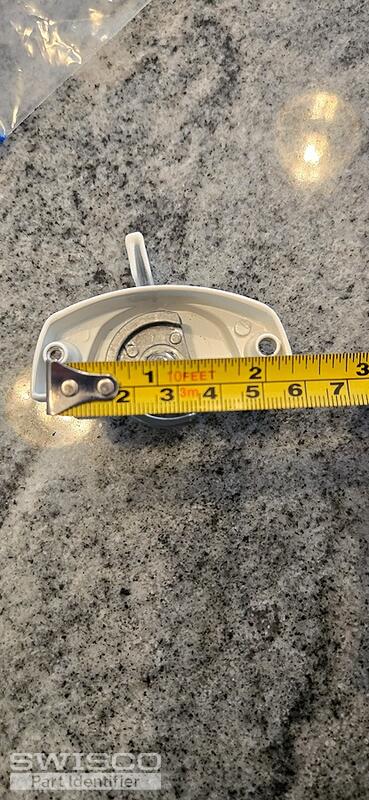

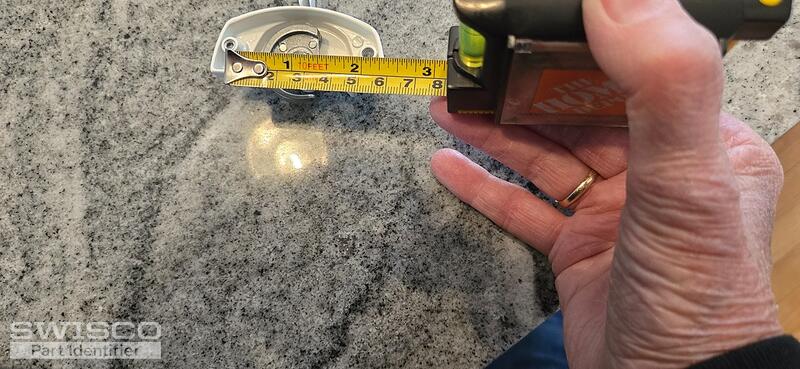

I remeasured closer to 21/16 2/16
backseat 7/16

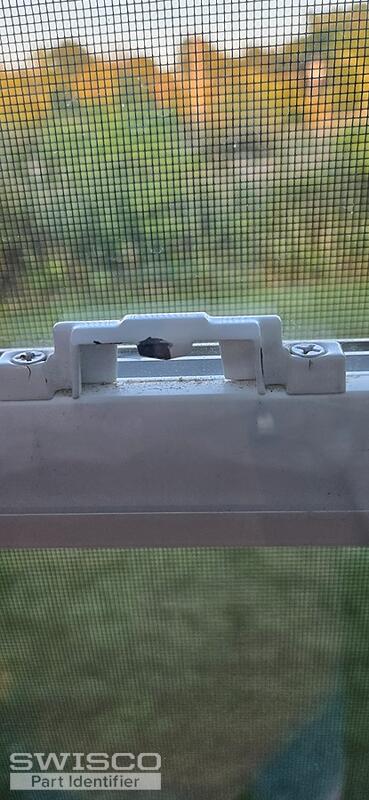

Front of latch at windows has tabs that stick out

5 user uploaded images

Emily from SWISCO

Sep 20, 2024 9:23 am

Thank you! We sell the 90-077A, 90-161 and 90-077C sash locks that measure 2-1/16" on the installation hole centers. The backset for these is 7/16" as well. Take a look at the specifications and see what you think.

Alternate image for 90-077A

Alternate image for 90-077A

Detail of 90-161

Detail of 90-161

Dimensions for 90-077C

Dimensions for 90-077C
