Unknown balance shoe to match 19-009 top

A quick learner from Mayfield Village, Ohio says:
October 20, 2015

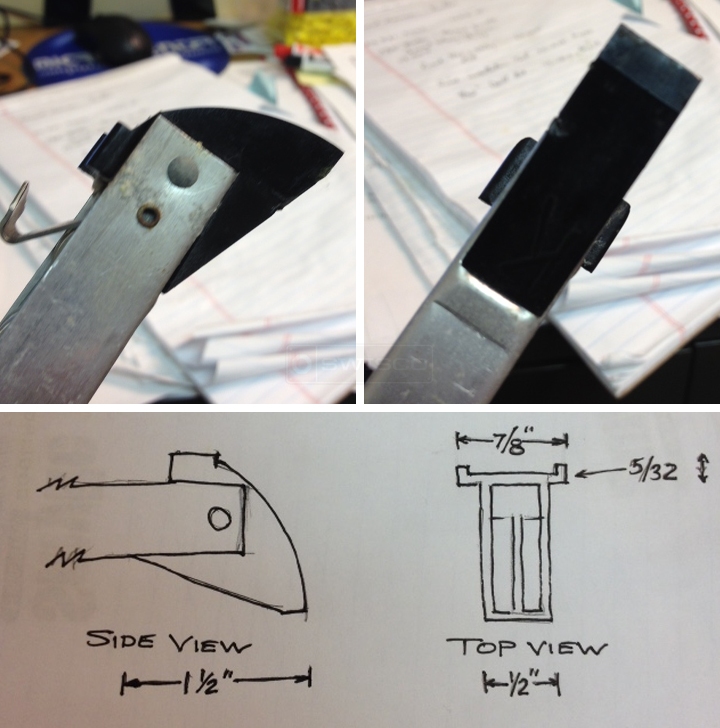

I am trying to replace broken channel balances in some commercial windows. They are 1/2" channels measuring 23" long with 2230 stamped on them. The top acorn I matched and is your part # 19-009. The bottom shoe I was not able to match from your selection. I have enclosed 3 attachments, two photos of the part and one of dimensions. Let me know if you have these and weather you can make some of these replacement channels. Thanks
User submitted a photo of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
October 23, 2015
Thanks for posting! I believe you can use our S710-23 channel balance. This comes with our 19-009 top and 15-003 bottom pre-attached. I know the 15-003 looks different, but it should work for this discontinued Acorn window. For a stamp option, I recommend our 2230.
Channel Balance Top, Acorn
Channel Balance Top, Acorn
19-009
$1.44
23" Series 710 Channel Balance
23" Series 710 Channel Balance
S710-23
$11.30
Channel Balance Shoe, 1-3/16" Depth
Channel Balance Shoe, 1-3/16" Depth
15-003
$0.87
