Thanks for reaching out to us. Your old balance looks like a good match for our Series 770. This has the same style channel and terminal clip as your originals, but review the information we have on its store page and see what you think.

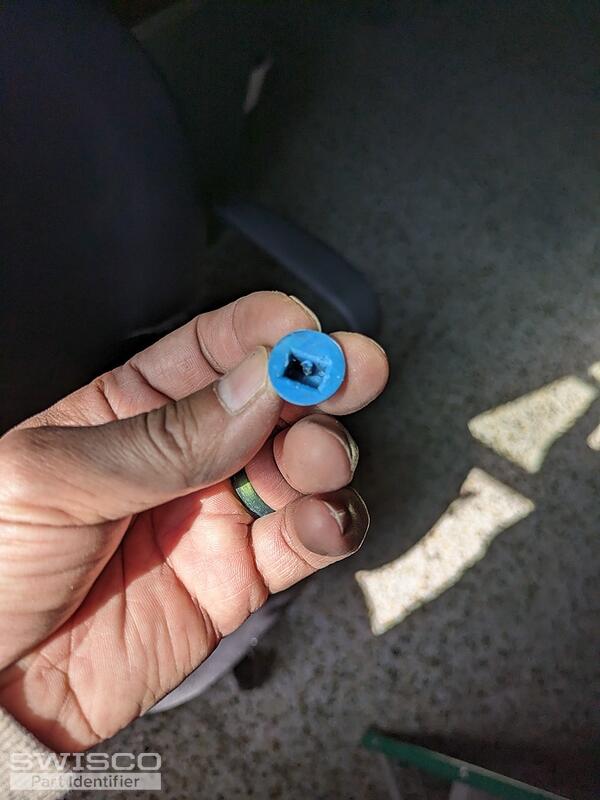

It also looks like you need a new pivot shoe. There are a ton of viable replacements for this but it will ultimately depend on size. I'm happy to make a suggestion but I will need precise, written measurements, specifically its width and thickness. Once I have those two dimensions I can check our inventory for a good match. I'm certain we'll have one.

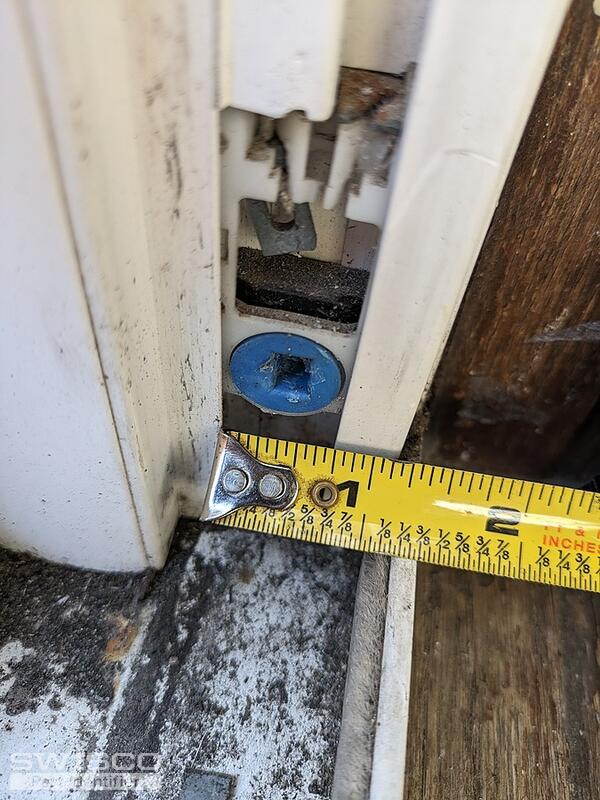

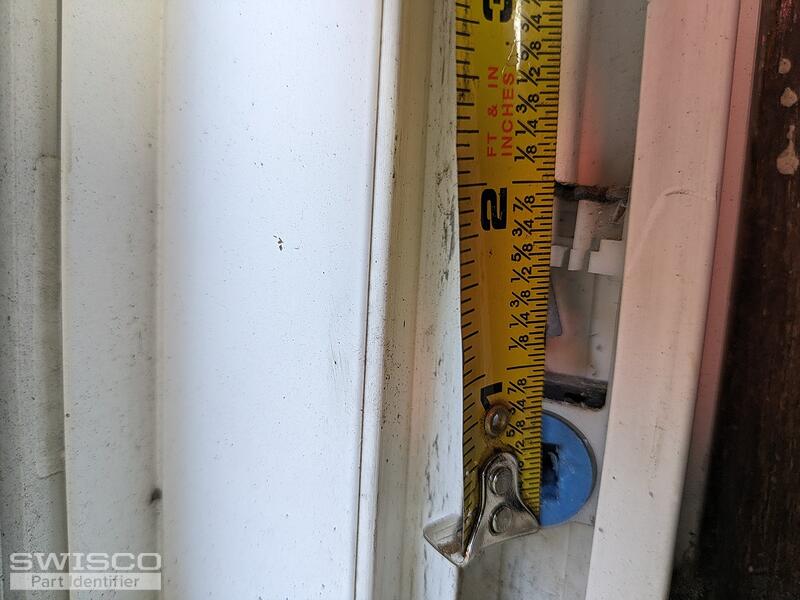

As mentioned in my previous response, the specific dimensions I'm looking for are width and thickness. Height is not all that important. We're just trying to find something that will fit in the track.

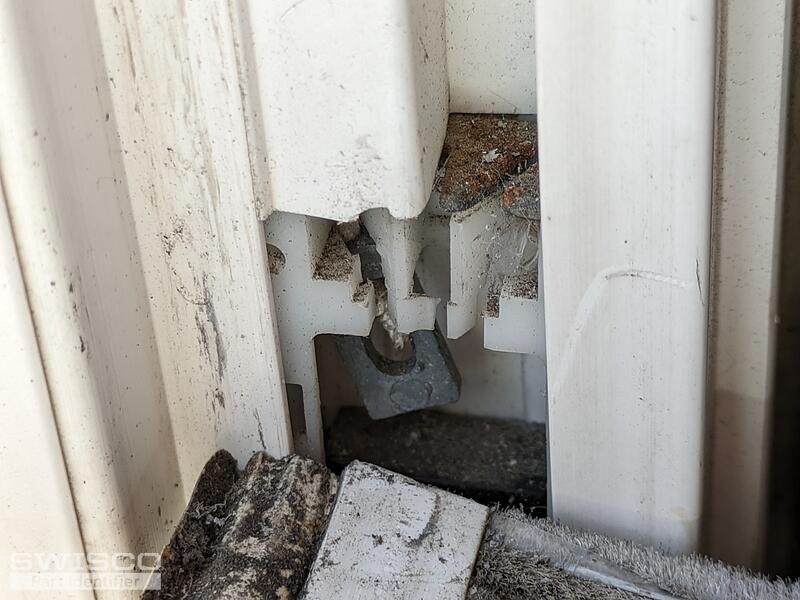

You will definitely need to measure an undamaged shoe in order to get an accurate measurement. If you have an identical window in the house, you can use that, even if the window overall is a different size. Odds are they still use the same shoes.
You can't determine the actual size of a shoe while it's still installed. Removal is both necessary and advised. That said, if your shoe is 9/16" deep then odds are you can use something like our 15-118. This is 1-1/4" wide, which I suspect is the same size as your existing shoe, but the only way you're going to know for sure is to remove the original. I think the 15-118 is a strong choice right now, but until you have that size in hand it won't be a guarantee. It's up to you if you want to take a chance on it. For now, look it over and see what you think.
The 15-118 is 1-1/4" wide, not 1-5/16". 1-5/16" is honestly a pretty peculiar size for this style shoe; like I mentioned above, you're not going to get an accurate measurement while it's still in the track. Believe me on that. Your only options at this point are to remove the shoe to verify its size or take a gamble that my 1-1/4" guess is accurate. It's ultimately up to you.
