Unknown crank assembly needed, no markings found.

Quick Learner from Fort Wayne, Indiana

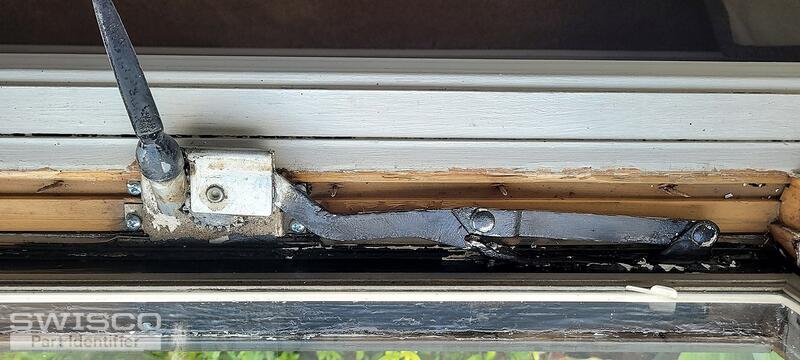

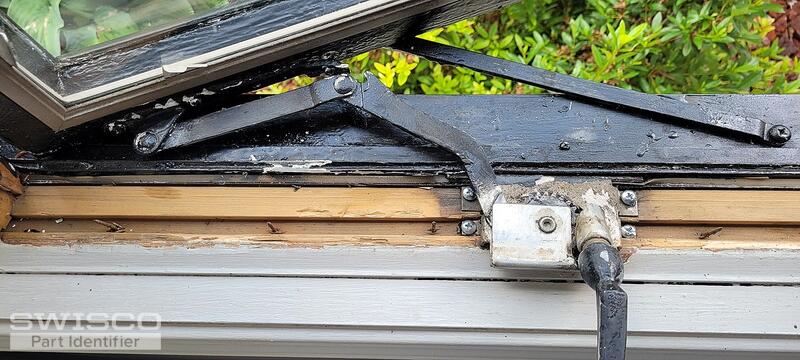

Hello. I want to repair and replace the crank assemble on my casement window. Enclosed is a picture of the crank assembly open and closed. I believe it is an Andersen window, installed as new construction in 1989. I can't find it on your website, although I found the crank arm and cover and have ordered it from you.
Can you help me with the crank assembly arms? Thank you!
2 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Take a look at our 39-175 and 39-176. Carefully look over our dimensions and compare them to your original assembly to see if this matches up for what you need. If you also need a handle, please see our 39-109B.

Dimensions for 39-175
Dimensions for 39-175
