Unknown window sash
Handy Person from Columbia TN
Apr 16, 2026 4:55 pm
Purchased a home built in 2005, ive checked everywhere on the window besides the inner frame behind the trim for a manufacturer. Ive ordered several locks with no luck as the non lock parts are usually a tad to thick. Mounting holes are 2 5/16" apart. Thr plastic is brittle and im needing 11 replacement sashes
2 user uploaded images
8 Replies
Emily from SWISCO
Apr 21, 2026 2:09 pm

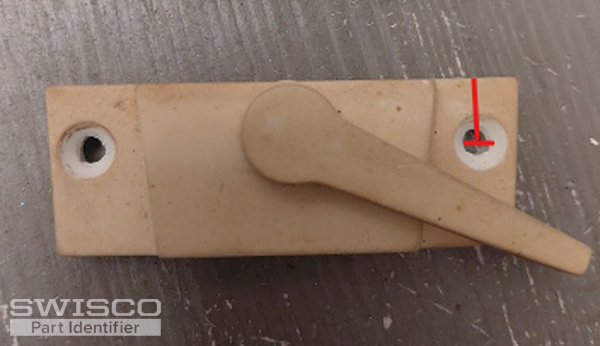

Thank you for reaching out to us. I'm afraid we don't sell a lock with this measurement. Can you double-check and make sure you're measuring from the center of each hole? We would also like to know the backset, which is measured from the center of the installation hole to the top edge of the lock, as shown below.
Handy Person from Columbia TN
Apr 21, 2026 4:03 pm
I can swing by the house after work and get that information for you. I will also measure the depth of the keeper as it seems pretty slim to the other I have tried out. Thank you!
Handy Person from Columbia TN
Apr 21, 2026 6:31 pm

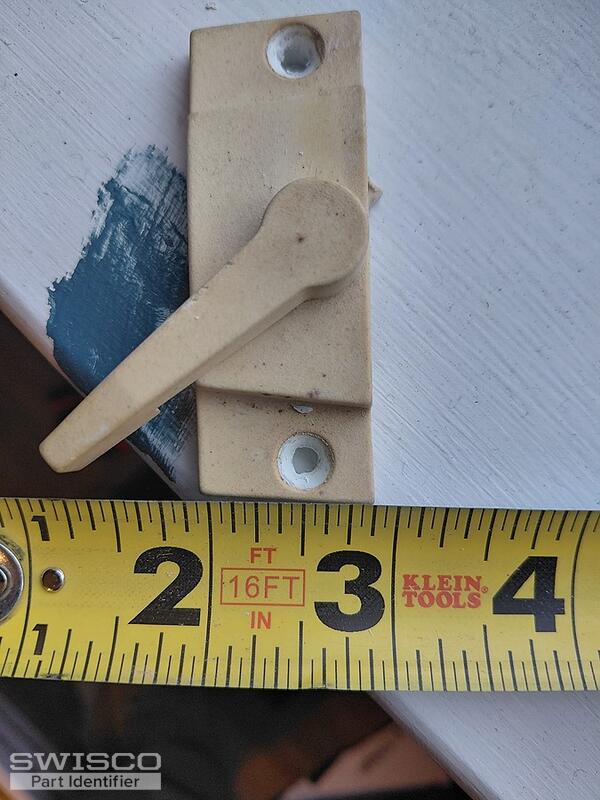

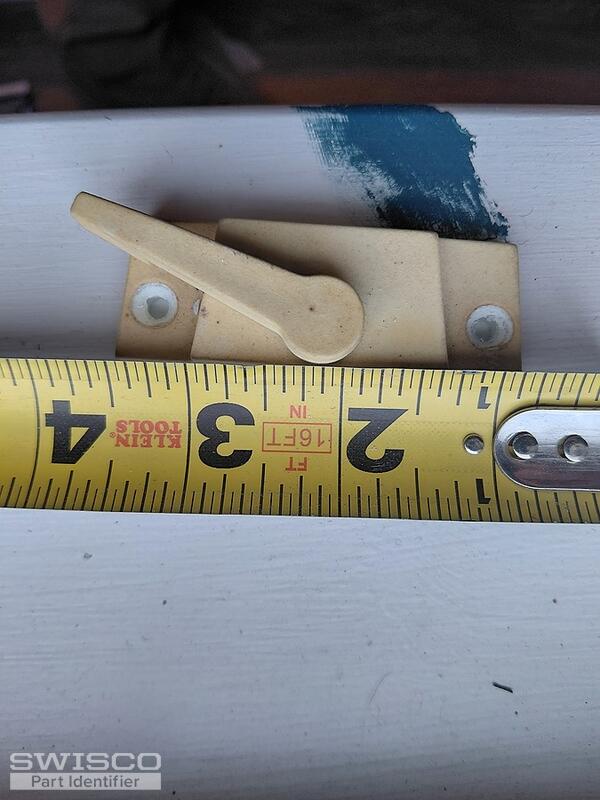

I measured again and its 2-1/4 from center to center. Then the stationary portion is 1/4" thick. Ive attached some photos as well.
3 user uploaded images
Emily from SWISCO
Apr 22, 2026 8:06 am
Handy Person from Columbia TN
Apr 22, 2026 10:11 am
Thank you Emily! I was also recommended this #90-274 but I couldn't find the dimensions for the depth of the keeper. Would this part work or should I go with the parts you recommended?
Thank you for your assistance!
Thank you for your assistance!
Emily from SWISCO
Apr 22, 2026 10:21 am
No, I wouldn't recommend the 90-274 as the locations of the holes are different and the backset is 11/16". As long as your old lock and keeper matches up with our specifications, you should be good to go with the previously mentioned parts!
Handy Person from Columbia TN
Apr 22, 2026 10:31 am
Thank you Emily! I will go ahead an get those parts ordered! Have a wonderful week!
