Upper Guide and Snap-In Guide Pieces

Home Owner from Hayward, CA

Sep 8, 2018 4:10 pm

Photo 11_52 shows the broken top end piece with the broken one held next to it.
Photo 11_54 shows it from the top looking down.
Photo 12_08 shows the small guide piece that snaps onto the inner edge of the window frame.

I need the left side of the top piece, but if both sides are the same, I'll buy 2 of them and 1 of the small edge guides.

3 user uploaded images

4 Replies

Tom from SWISCO

Sep 14, 2018 12:02 pm

I don't think we have this exact top sash guide, but it's similar in design to our 18-184. Could you use this as a replacement?

I'm afraid we weren't able to find a replacement for that "J" shaped clip.

Home Owner from Hayward, CA

Sep 20, 2018 1:20 am

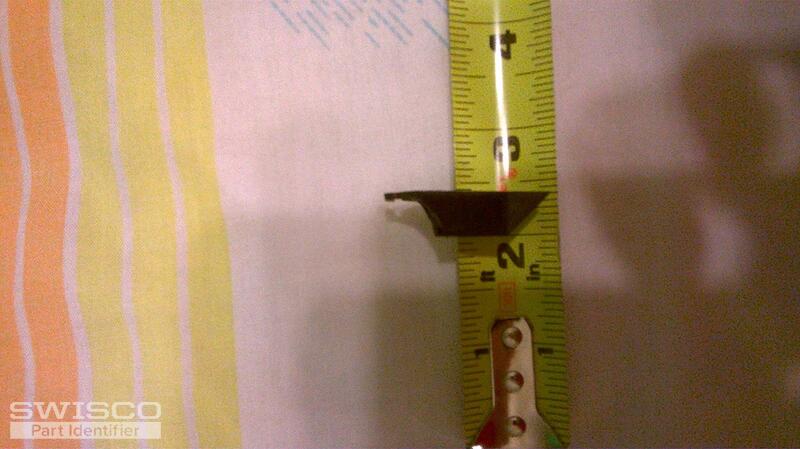

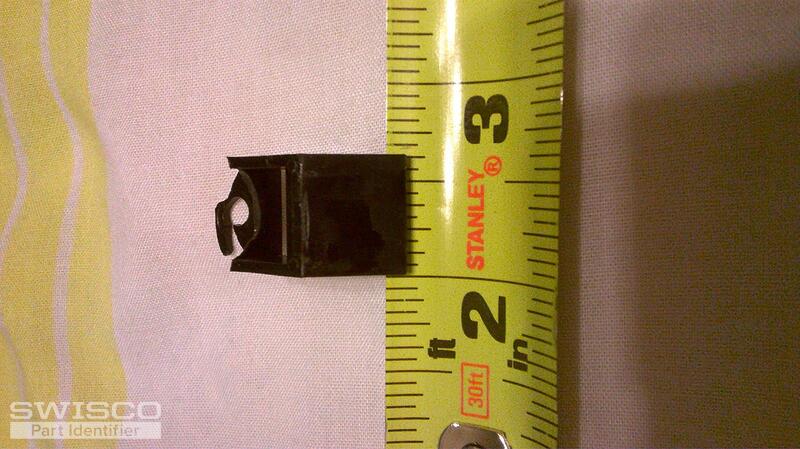

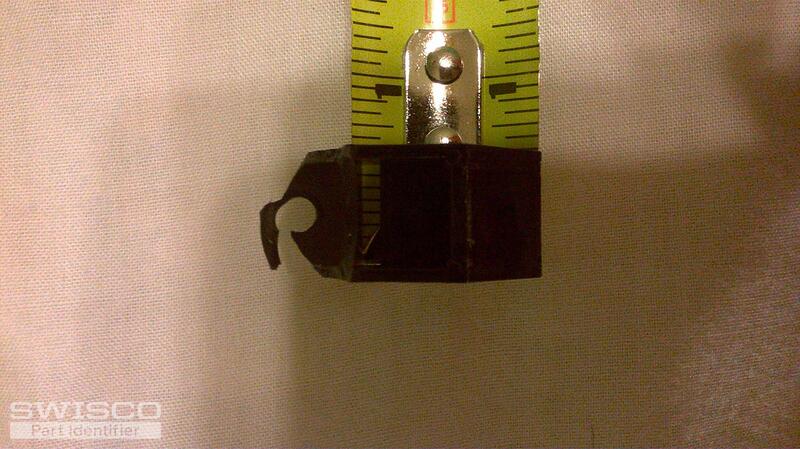

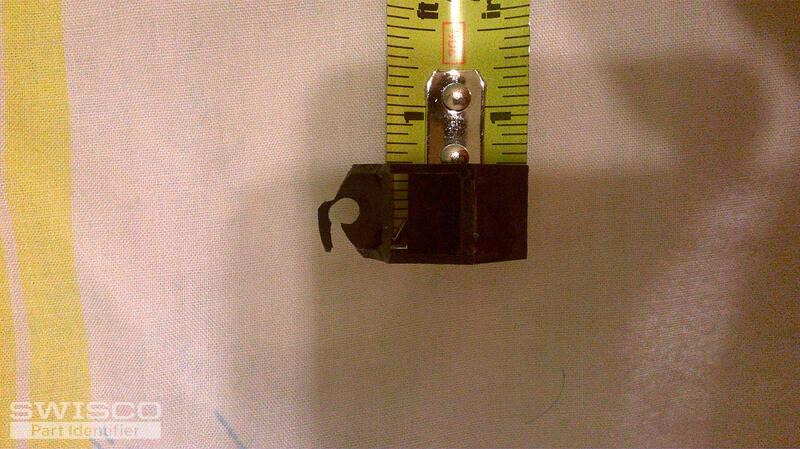

Hi, I have already ordered the wrong top sash guide #18-009, which was top small, and I sent it back. I was then told that 18-184 might work. But after looking at the dimensions, it looks way too big. Please look over the 4 pictures I've attached and I'll call you tomorrow to try to figure this out.
Thanks,
Matt

4 user uploaded images

Paul from SWISCO

Sep 20, 2018 1:32 pm

Take a look at our 18-174 top sash guide, which is 5/8" wide. It does look different than yours, but compare the other dimensions we show to yours to see if you can still get it to work.
