VE Andersen Awning Window Parts

A home owner from Florida says:
May 21, 2019

V E Anderson awning window Bradenton, FL or Rome, GA or Ownsby, KY

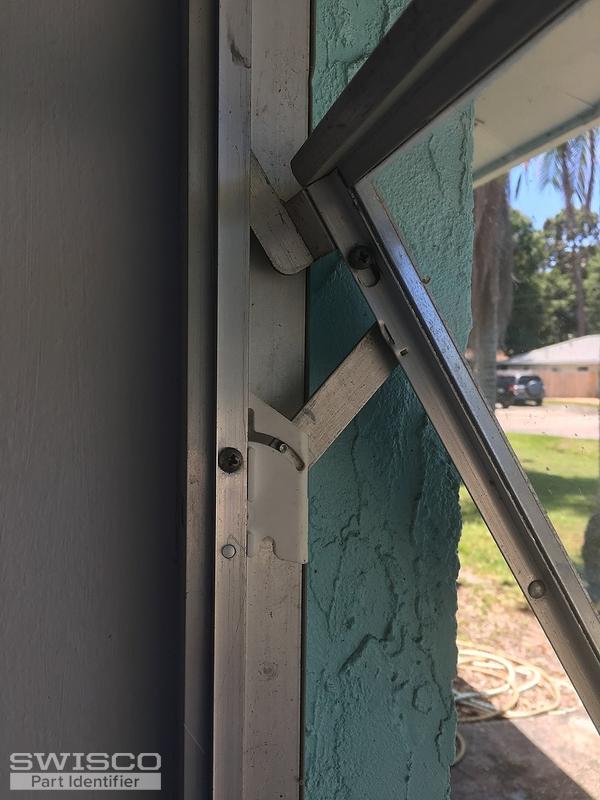

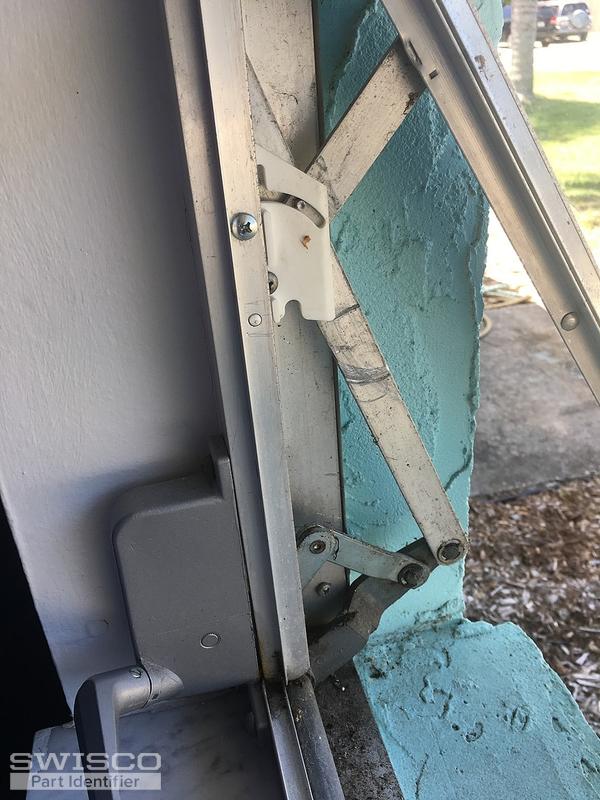

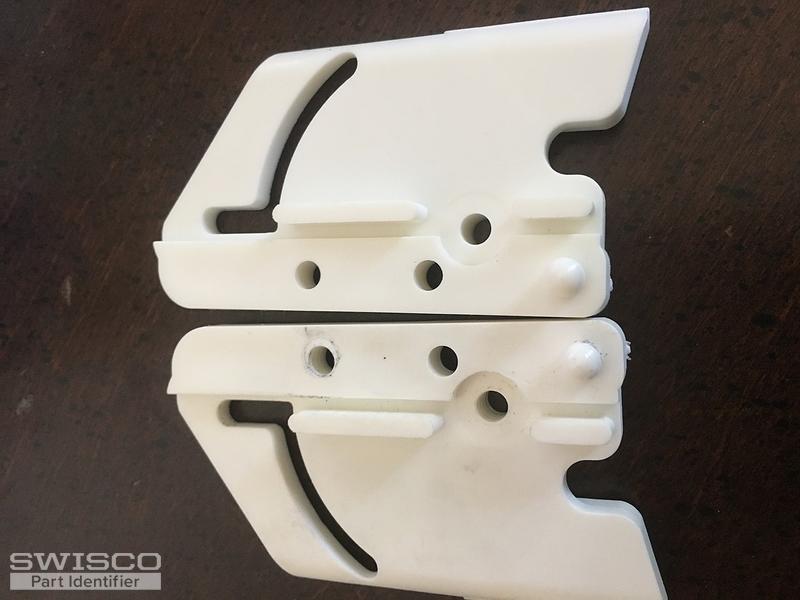

The parts I need are the RH LH white plastic parts indicated above. I am showing you where they fit in the operating hinge.

Hope you can help me.

You had every part I needed for an older sliding door and it now operates with a finger touch instead of strongarm man! Thank you.

Thumbnail of the uploaded file named IMG_2947[1].JPG
Thumbnail of the uploaded file named IMG_2948[1].JPG
Thumbnail of the uploaded file named IMG_2951[1].JPG
Profile picture of Bob
Bob from SWISCO responded:
May 23, 2019

Thanks for writing in again! These look like nylon cam locks. We carry one such type, our 39-538. I am not certain if they match up precisely with yours, but take a look and see what you think. This is also part of our 39-537 bracket & arm lock assembly. You also could consider our 39-539 Andersen Vent Hinge pair, which I believe was used on older aluminum Andersen windows. Compare these to your old hardware and let us know if you think one of these options might work for you.
VE Anderson Window Operator, Left Handed
VE Anderson Window Operator, Left Handed
39-258
$18.55
VE Anderson Window Crank, Right Handed
VE Anderson Window Crank, Right Handed
39-259
$18.55
Lock Assembly Pair
Lock Assembly Pair
39-537
$10.08
Nylon Cam Lock Pair
Nylon Cam Lock Pair
39-538
$3.25
Anderson Vent Hinge Pair
Anderson Vent Hinge Pair
39-539
$15.97
How to Replace an Awning Window Operator [1080p]
How to Replace an Awning Window Operator [1080p]
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
