Valances for 5 windows

Quick Learner from FL

Oct 20, 2023 9:35 am

Hello,

I will be repairing a min. of 5 windows (all the same size). As per our conversation, I have attached pictures of my damaged channel balance. Can you direct me to the correct replacement part?

Thank you,

John

5 user uploaded images

4 Replies

Bob from SWISCO

Oct 20, 2023 2:16 pm

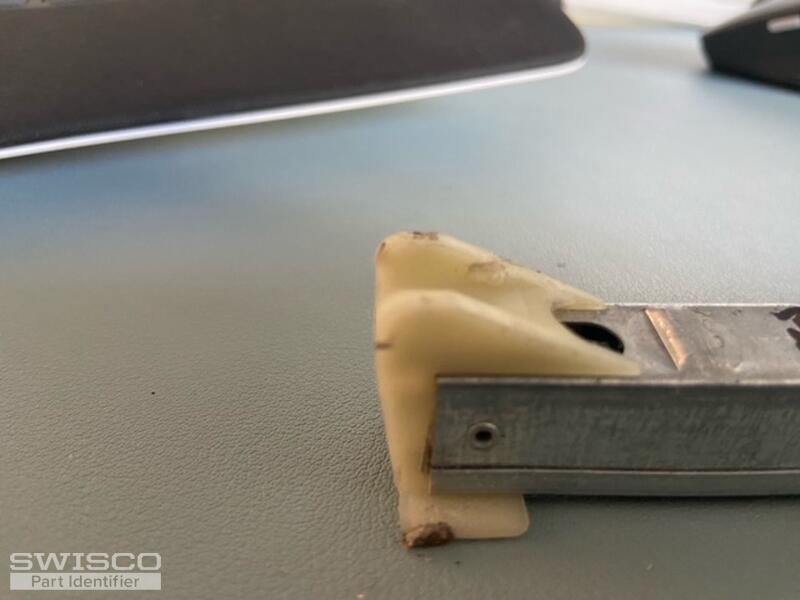

Hey John. I believe this is either an S380-30 or S385-30 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the picture below for reference. In either case, for a new stamp option choose 2930.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from FL

Oct 20, 2023 3:20 pm

Hi Bob,

Okay, So I need S380-30 my bottom nylon shoe measure 1".
Can you tell me what is new stamp option 2930 refers too?
Thanks,
John B.

Bob from SWISCO

Oct 21, 2023 8:35 pm

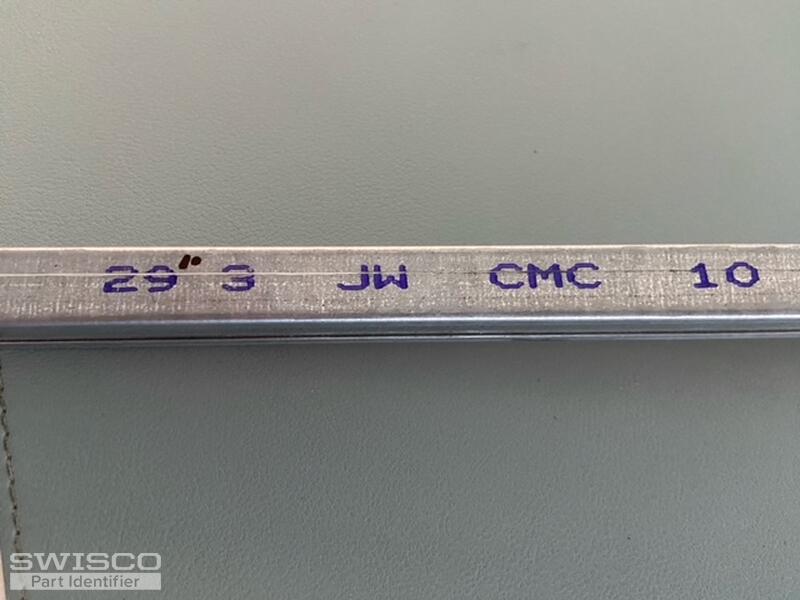

Hey John. The stamp option designates the strength of the balance, or basically the weight range it is designed to support. Your old balance had a stamp of 29-3, which corroborates with our stamp of 2930. This designates a balance that can support a window sash in the weight range of 16 through 23 pounds. I hope this makes sense. And yes, if the shoe is 1" deep, then you need the S380-30 (with that 2930 stamp option). Let me know if you have any other questions!
