Vent window handle hardware

A quick learner from Glenside P says:
February 3, 2021

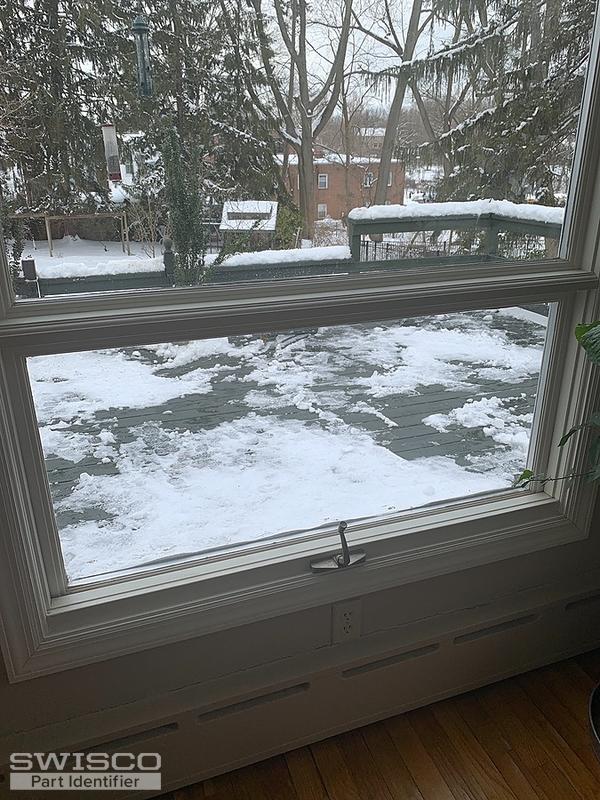

We have 5 of these windows we cannot identify. The locking/ opening hardware (handle and all parts of it) needs to be replaced. Can you help with identifying what we need?

Graham

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Bob
Bob from SWISCO responded:
February 4, 2021

Hi Graham. I'm confident we can help, but the best way to identify the hardware needed is to open the window and give us a bird's eye picture of the operator and its link arm(s) that regulate window movement. The exact style will tell me what you need. Many thanks.
A quick learner from Glenside P says:
March 15, 2021

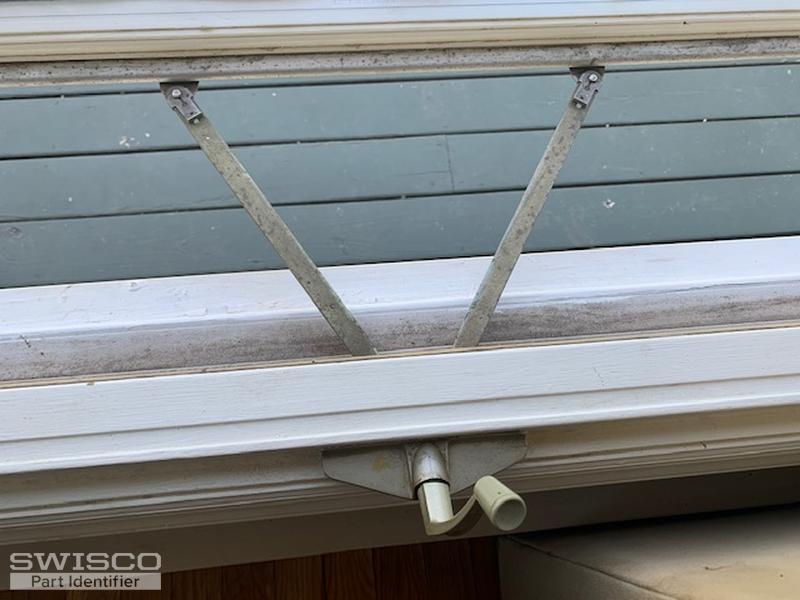

Hello - sorry for the delayed response, attached is a "birds eye" view of the window operator in the open position. please let us know if you need additional information

thank you
Thumbnail of the uploaded file named thumbnail_IMG_4779 window operator.jpg
Profile picture of Bob
Bob from SWISCO responded:
March 16, 2021

See our 39-348. This looks close, just confirm the dimensions match up. For a handle that goes with this awning operator, see our 39-114L sold separately.
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Sill Mounted Awning Operator
Sill Mounted Awning Operator
39-348
$61.10
