Vertical window balance replacement

A quick learner from Chula Vista, Ca says:

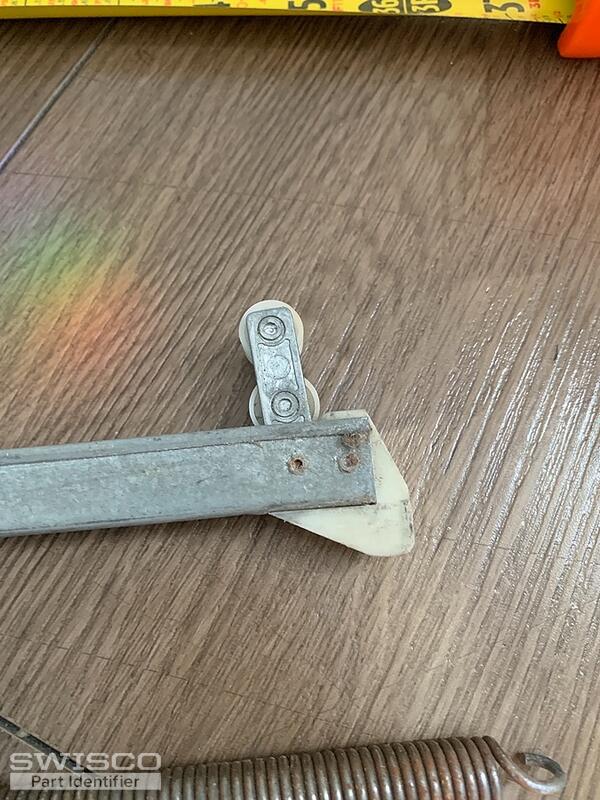

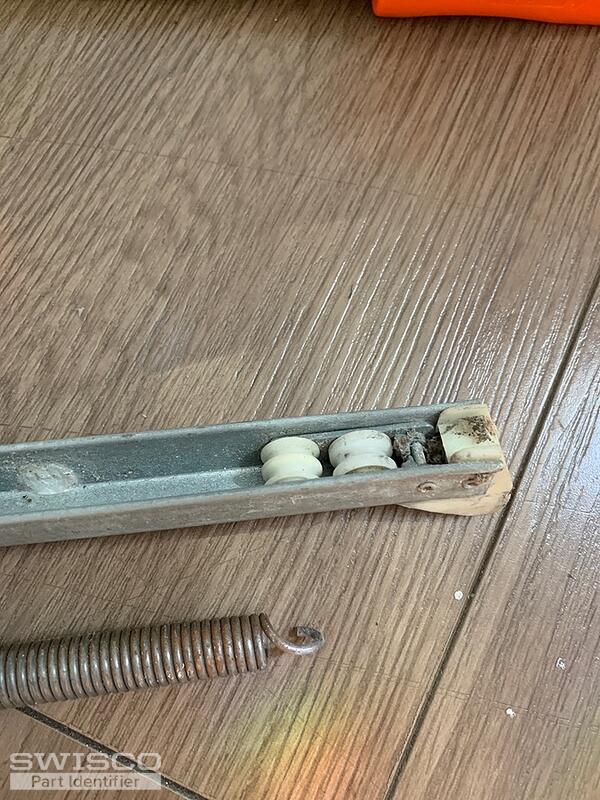

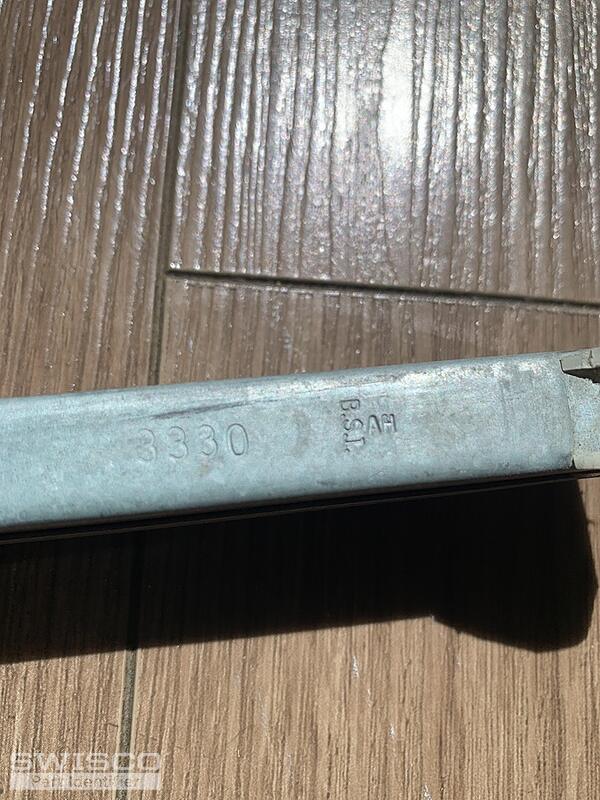

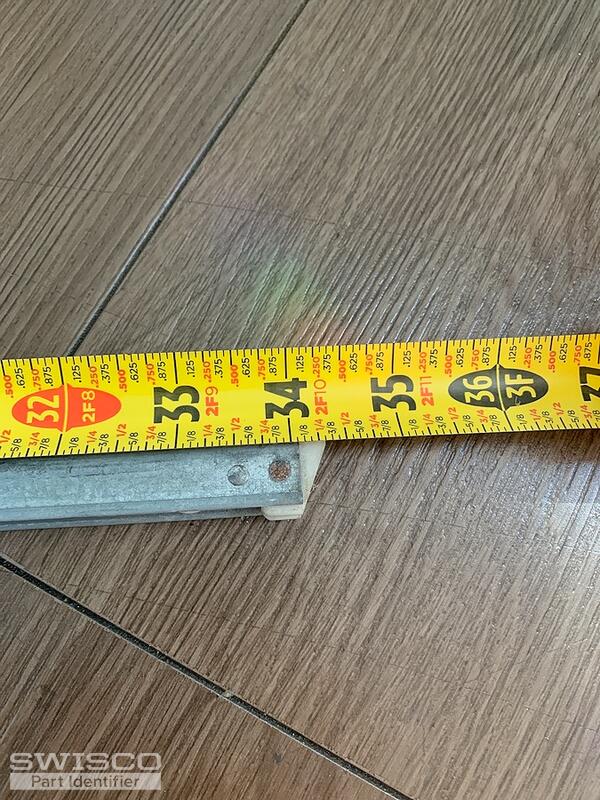

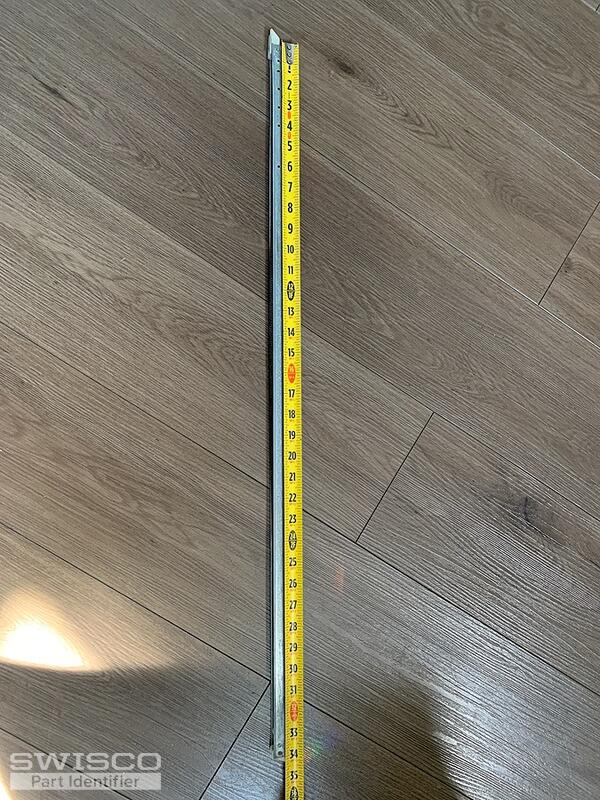

Metal part measures 34'. There is a number on it "3330".
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I can't be sure but I suspect that your top attachments may have wings, which would indicate that you need the S395-34 balance with a 3330 option. If you're unsure, feel free to send us a photo of the top fitting to confirm. Thank you!

A quick learner from Chula Vista, Ca says:

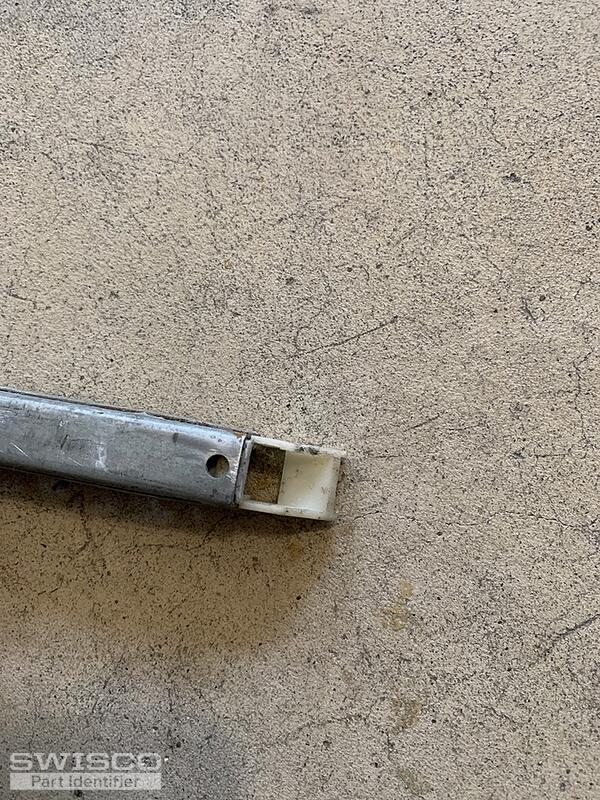

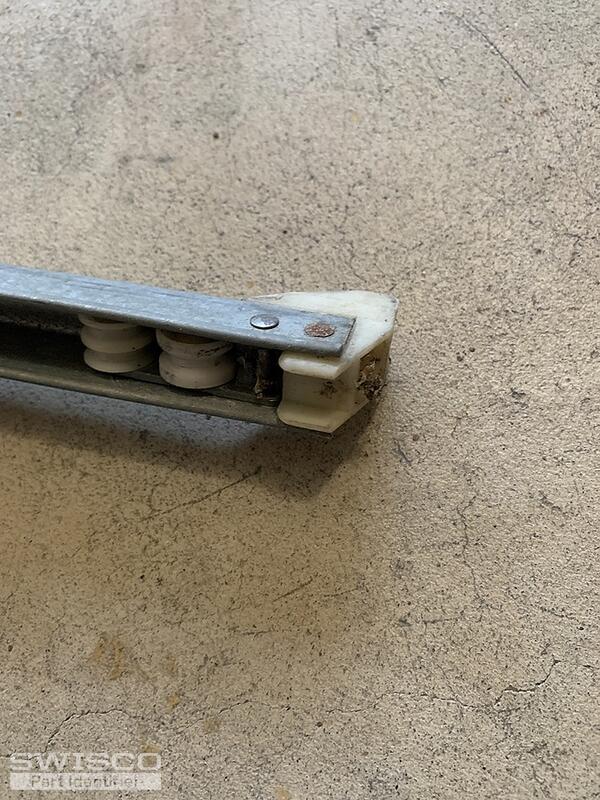

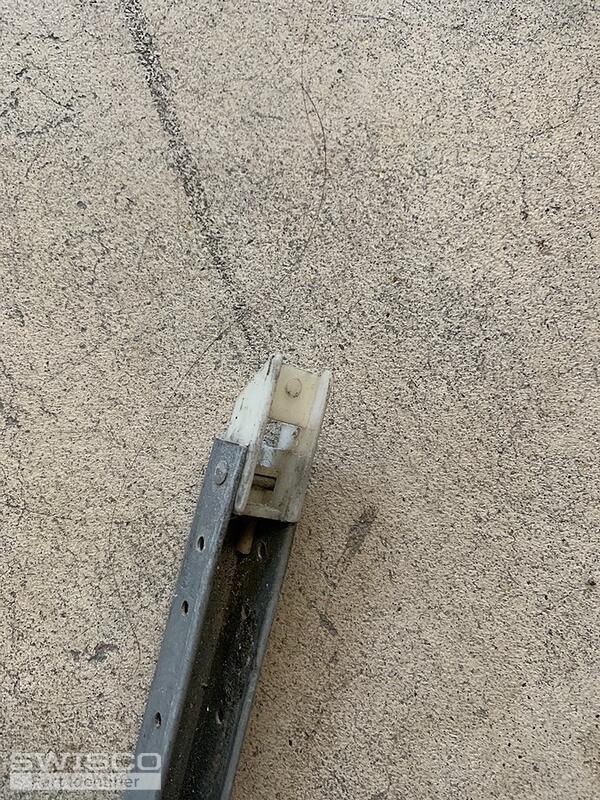

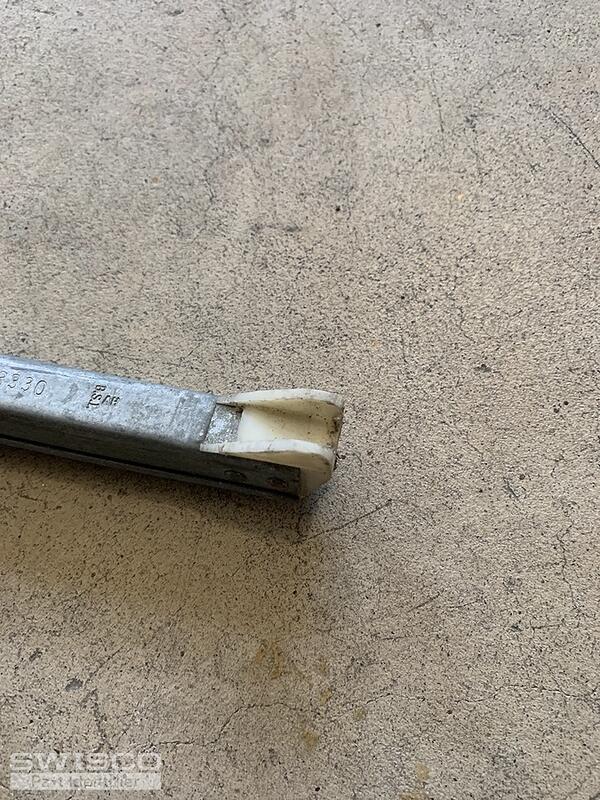

Took pictures of both ends. Thank you.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I stand corrected, it looks like you have either our S351-34, with a 15-002 bottom attachment, or S390-34, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 3330 spring strength option for your replacement balances. Thank you!



Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
