Vetter (out of business) casement sliding hinge track.

A home owner from Broomfield, CO says:

July 28, 2020

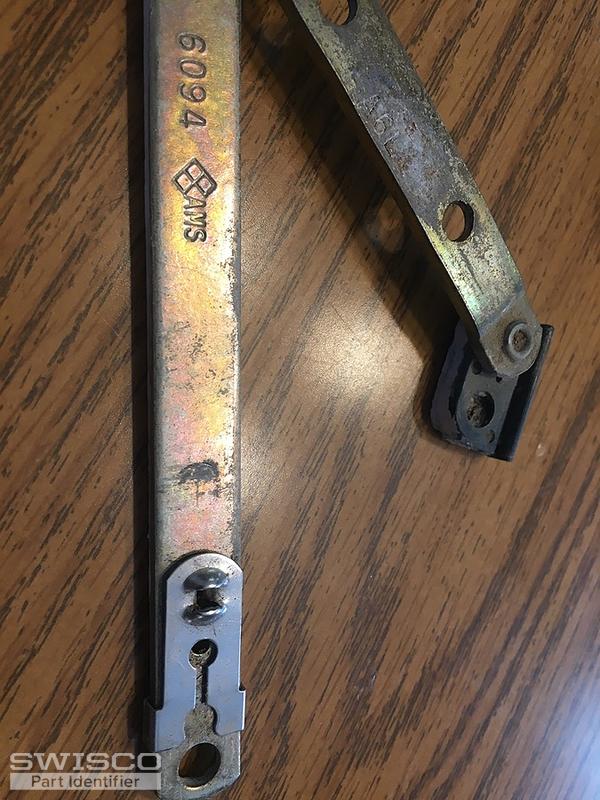

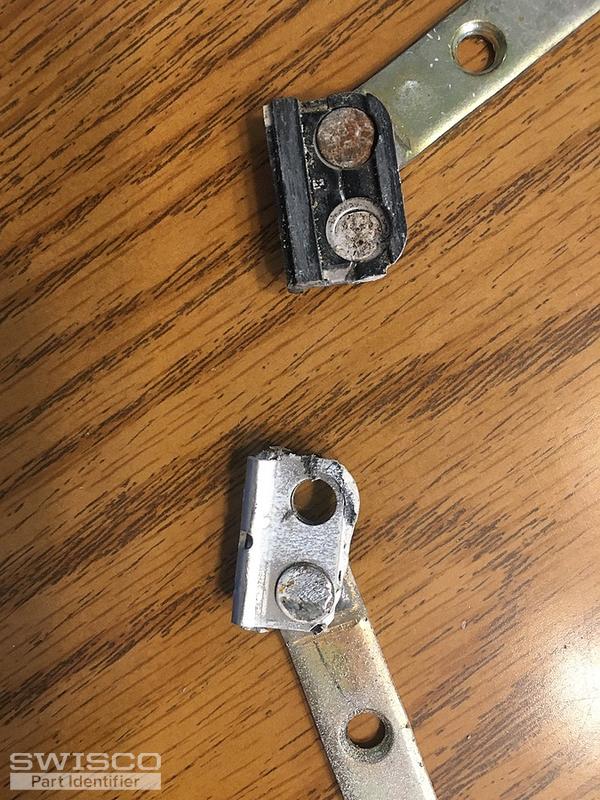

My 25 yr old Vetter wood casement window has a broken hinge slide. The 1 lunch black plastic-coated clip that slides in the casing-mounted track is broken and will not stay in the track. The first picture shows the good (left) & bad (right) parts. The window-mounted bracket that it is a part of is 7.5 in long with a 5.5 in attached arm. I have multiple windows that have the same problem to a lesser degree and would be interested in multiple brackets depending on price and availability, however this is the only one that is broken to the point of not staying in the track at all. Please advise, Ken.

Thumbnail of the uploaded file named 5011DDAF-4A46-4F90-9198-4AF49CDB1458.jpeg

Thumbnail of the uploaded file named 75178AEA-DDAD-4F16-942E-1410847A7315.jpeg

Thumbnail of the uploaded file named 6805BB39-D133-45F5-9B6D-F6EBCDB906E5.jpeg

Thumbnail of the uploaded file named 4ACCCE96-3A42-4674-8061-9C3F475D886A.jpeg

Thumbnail of the uploaded file named A2CC5D39-9FB0-4FE6-B9C6-691270919638.jpeg

Tom from SWISCO responded:

July 30, 2020

Hello, Ken. Your hinge isn't made anymore but you should be able to use our 36-048 as a substitute. Just make sure you replace the top and bottom at the same time. The video below will go into more detail.

2-Bar Hinge Set, 10"

36-048

$17.47

How to Replace a 2-Bar Hinge Set on a Casement Window

VIDEO

WATCH >
