Viking Balances

Contractor from Santa Barbara

Jul 22, 2025 10:39 am

Hello,

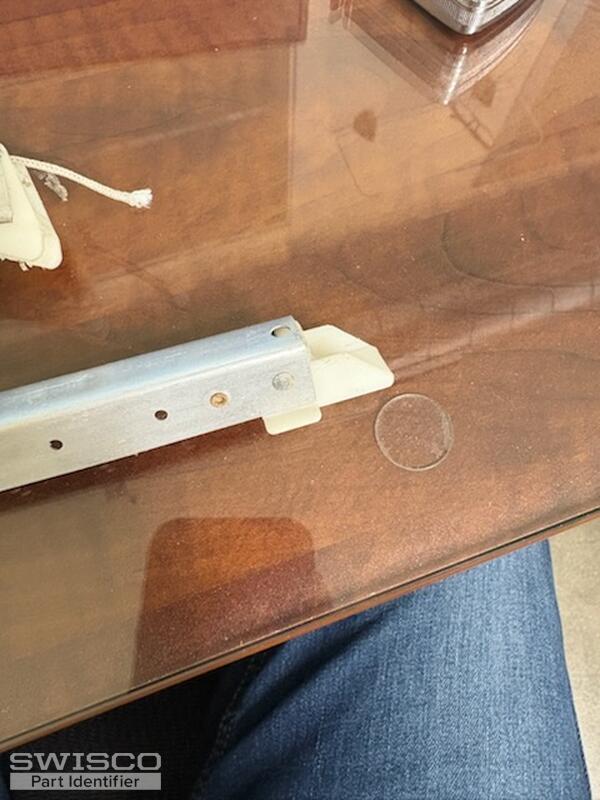

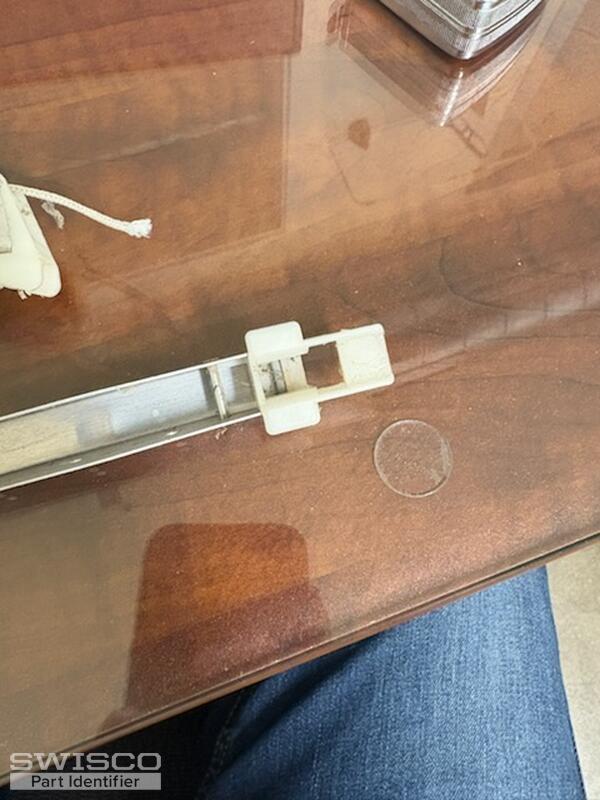

I pulled two balances out of Viking single hung windows that are 22-1/2" x 46-1/4". One of them was a 2220 and the other was a 2230. Do you happen to know the proper balance?
I also need help identifying the proper plastic ends and metal clip, please.

5 user uploaded images

4 Replies

Bob from SWISCO

Jul 27, 2025 11:18 pm

Hello there. It looks the top attachment has 'wings' or side tabs but the bottom shoe lacks them. If so, this is an S395-23 Channel Balance, with either a stamp option of 2220 or 2230, respectively. All our balances come fully assembled out of the box and ready to install. Let us know if you have questions.

Contractor from Santa Barbara

Aug 12, 2025 12:17 pm

Thank you. The balances you recommended worked perfectly. I appreciate your help.

Bob from SWISCO

Aug 12, 2025 4:01 pm

Glad to hear it! Let us know if you have further questions, and thanks for reaching out.
