Viking Window Channel Balance Replacement - 1620 T

Start a new Discussion

Home Owner from San Jose CA

Feb 17, 2025 5:20 pm

Hello,I need to find the right channel balance for a Viking window. The number on the part is 1620 T.

2 user uploaded images

4 Replies

Emily from SWISCO

Feb 18, 2025 9:43 am

Thanks for reaching out to us. We're happy to look into this. We'll just need more information since the stamp doesn't help us ID it. Can you remove the balance and show us photos of the top and bottom fitting?

Home Owner from San Jose CA

Mar 10, 2025 3:31 pm

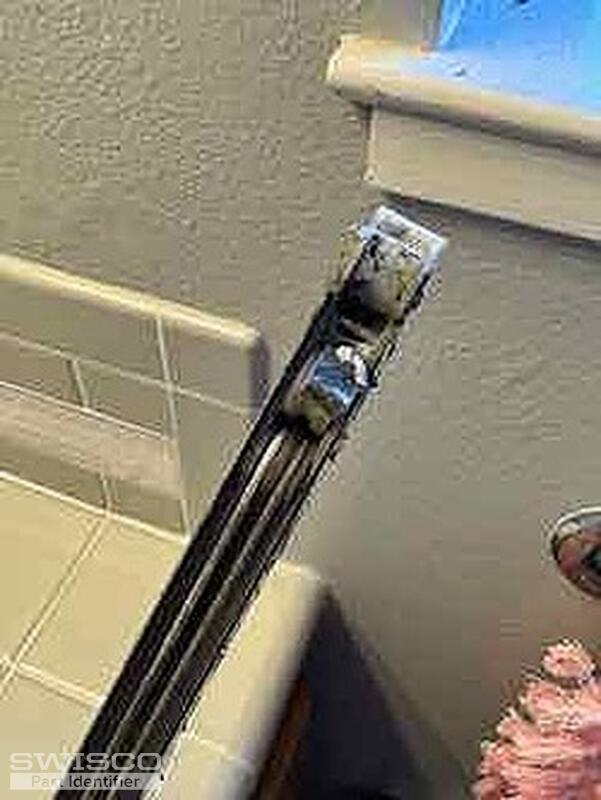

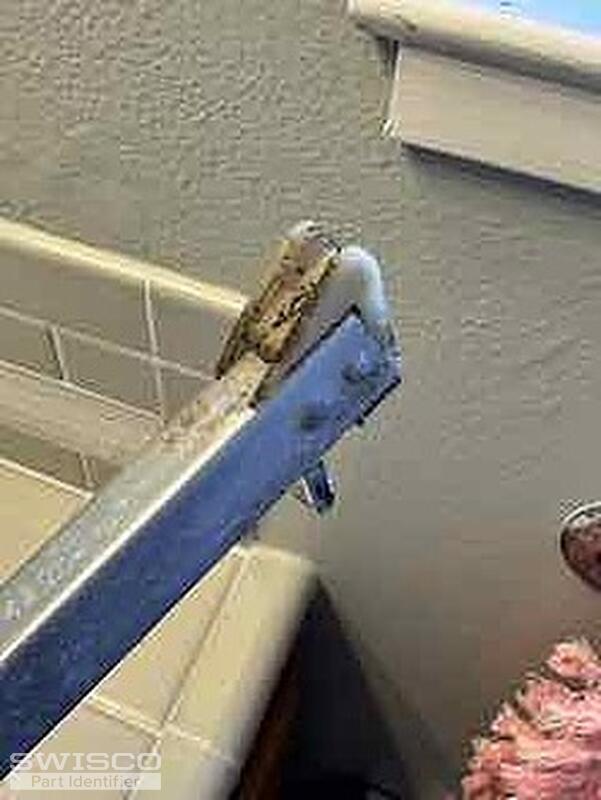

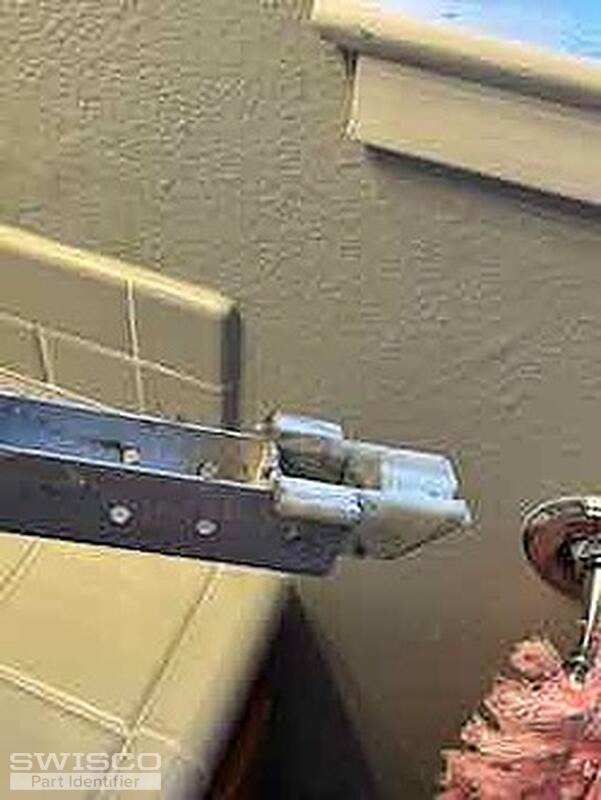

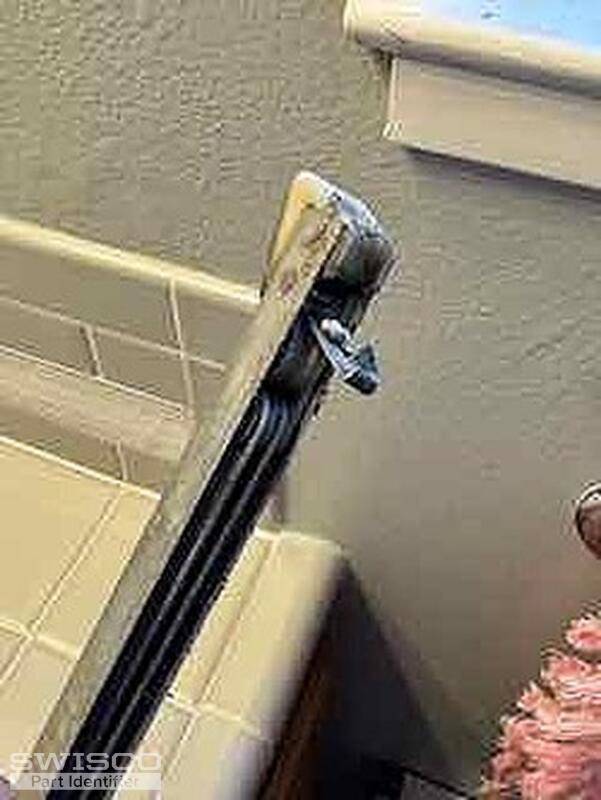

That makes sense. Here are some additional pictures.

5 user uploaded images

Emily from SWISCO

Mar 11, 2025 7:56 am

Thank you! I recommend you have a look at the S395-17 with the 1620 stamp option. This balance comes attached with the 19-005 winged top fitting and 15-001 1-1/8" deep wingless bottom fitting.

Let me know if you have any questions!
