Viking Window latch

Home Owner from San Jose, CA
May 12, 2023 4:28 pm

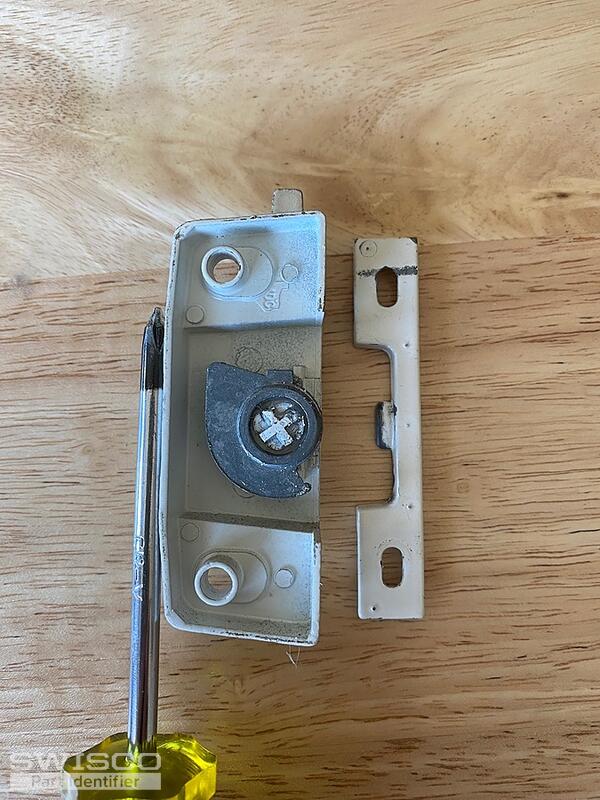

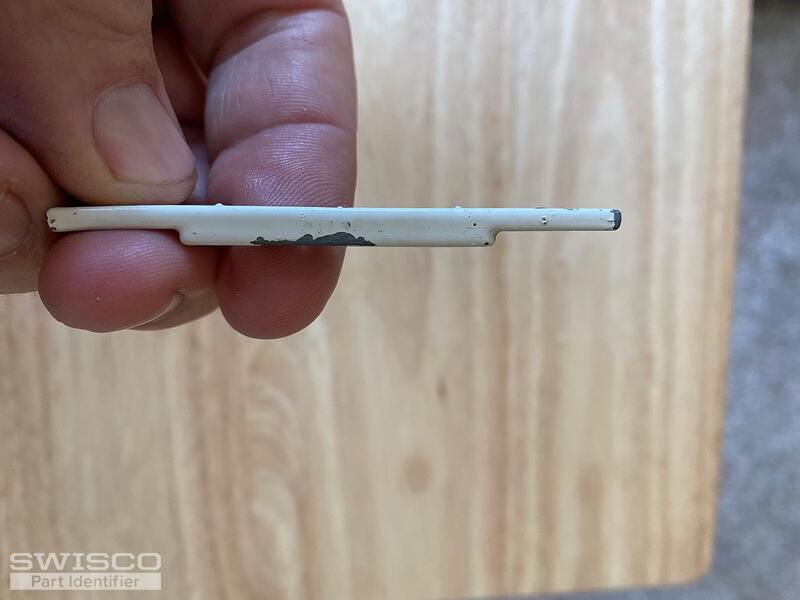

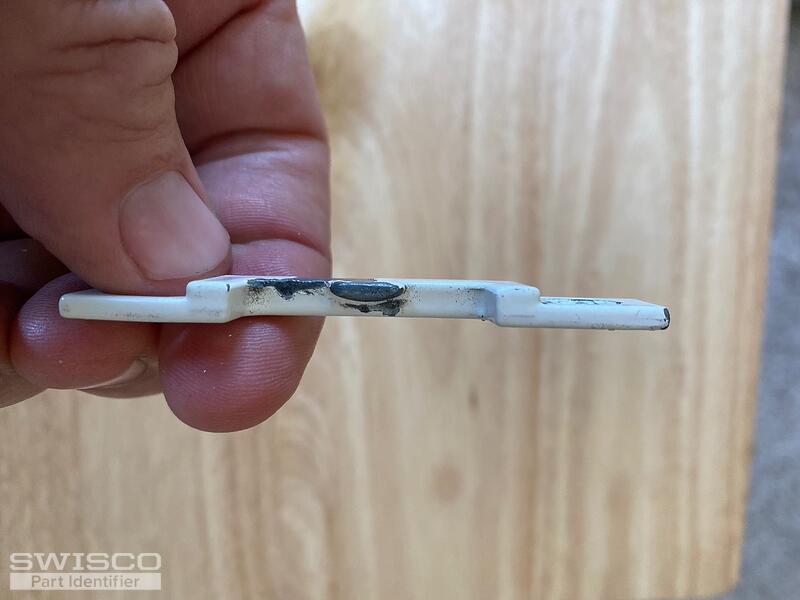

I am looking to find replacement latches for a Viking window. The significant issue is the depth of the receiver. It is very narrow. Also, the latch mechanism is different than anything I am finding in stores. I had the windows installed in 2001.
5C27EF42-7AA9-421B-BD8F-ECC7740274AC BA871797-4742-4143-A20D-A5CA38DCA797 C615C003-0F9B-4905-8C9D-B5D0908F27FD A8C76A6A-E557-4AD8-AF1D-2334A1578BED
4 user uploaded images
3 Replies
Tom
Tom from SWISCO
May 16, 2023 8:42 am
SWISCO
EXPERT

We don't sell a keeper that matches this design exactly, unfortunately. I would say that our best possible match is the 90-136, but my concern is the hole spacing. Ours is 2-1/4", center-to-center and with no wiggle room. If this doesn't match your original spacing then it won't install.

Another concern is depth. Looking at yours, there is a chance that ours might be in fact too skinny. However that's easy enough to fix. If it ends up being too thin you can always just pack it out with thin washers to make up the difference.

Detail of 90-136
Detail of 90-136

Profile view of 90-136
Profile view of 90-136

Home Owner from San Jose, CA
May 22, 2023 7:42 pm
Thanks. I need to order this and the latch. What is the matching latch?

Thanks.
Tom
Tom from SWISCO
May 23, 2023 9:51 am
SWISCO
EXPERT

The 90-136 is compatible with a ton of different locks. The best match in your case will depend on a two different measurements: the distance between the two screw holes, center-to-center, and the distance from the screw hole centers to the back edge of the lock, also known as the backset.

If you can give me the hole center spacing and backset, I can check our inventory for a match.
