Viking double hung balance mechanism failure - need replacements & instructions

Question

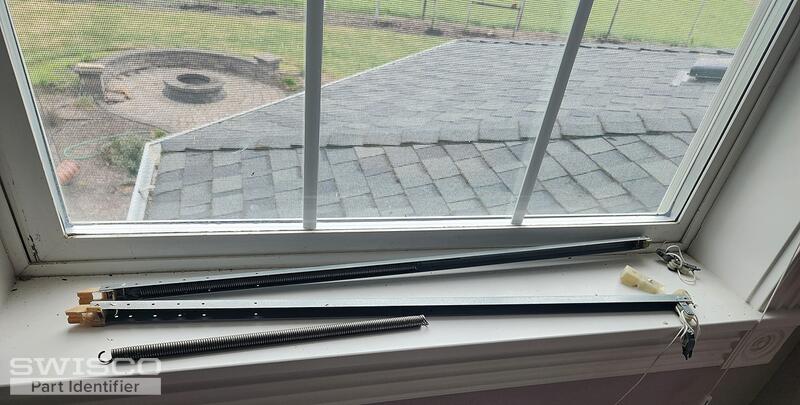

Windows are original to the home, built in the early 1990's. Window stopped holding position. I think one or both springs was replaced quite a few years ago - can't remember.

Emily · Accepted Answer

Hey there!

Thanks for reaching out to us. Your balance looks like a match for the S395-27 with the 2640 stamp option. This comes attached with the winged 19-005 top fitting and the wingless 15-001 1-1/8" deep bottom fitting. As for the top sash guide, the 18-008 looks like a good match. We recommend reviewing the specifications for these parts to confirm they match your repair needs.

Please let us know if you have any questions!

Close up view of the S395 balance top.

Close up view of the S395 balance shoe.

Detail of 18-008

Alternate view of 18-008
