Viking window balance

Handy Person from San Francisco

Nov 3, 2021 12:45 pm

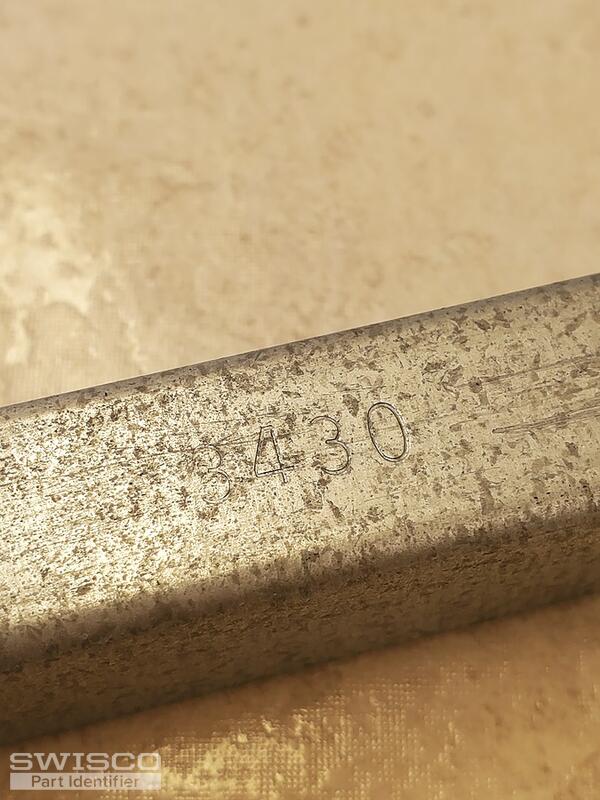

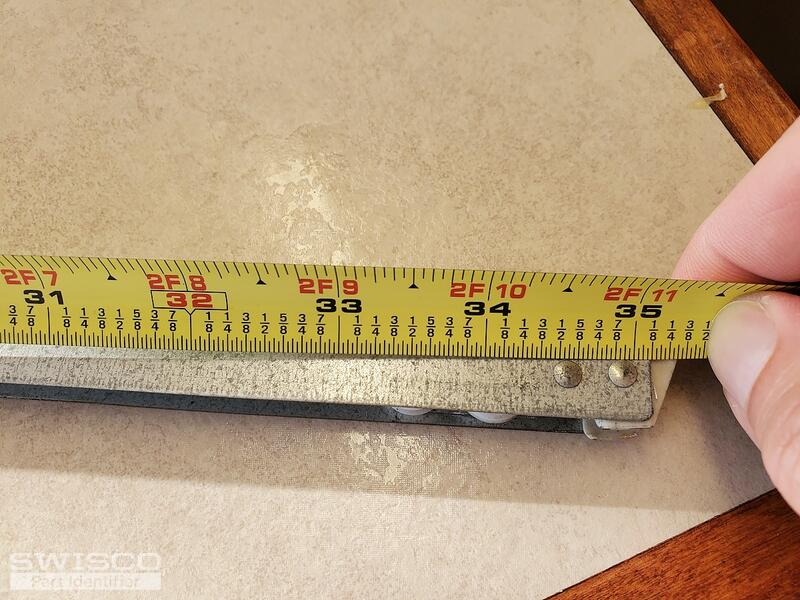

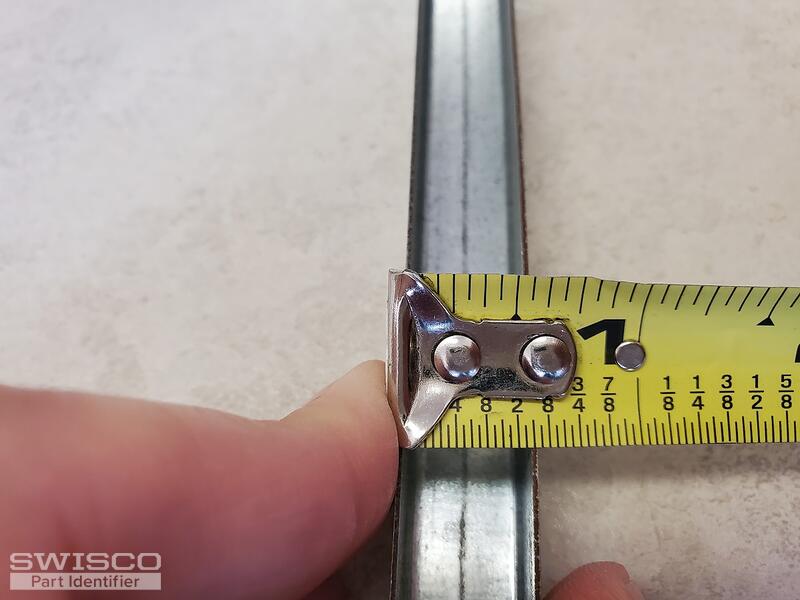

Hi, I am in need of a viking window balance. It is 1/2" (9/16") wide and 35 1/8" long. The only identifying marks that I can see is the number 3430. I believe the window was made in the year 1996.

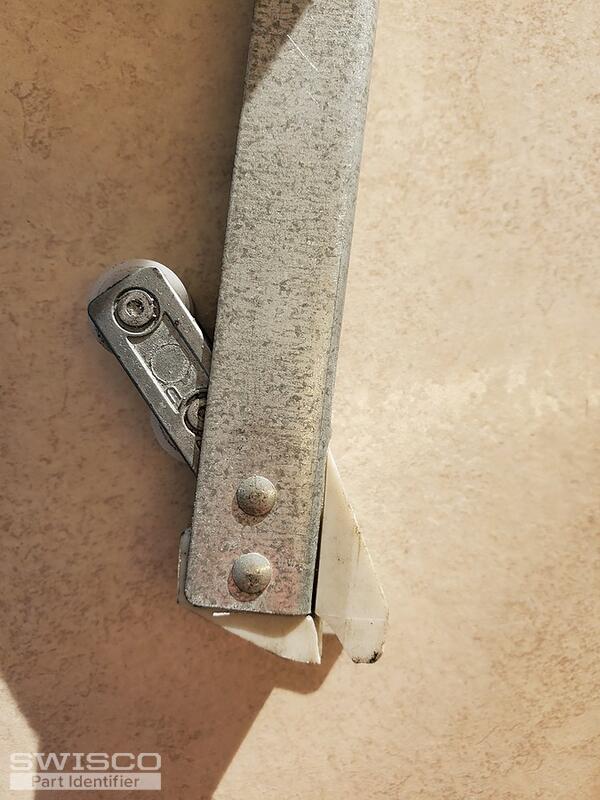

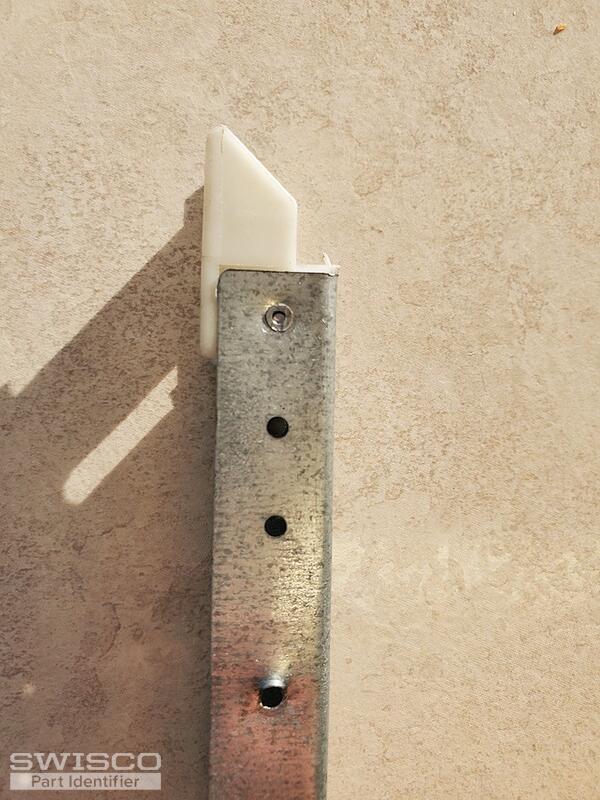

20211103_090723

20211103_090633

20211103_090548

20211103_090538

20211103_093644

5 user uploaded images

1 Replies

+ Add a Comment

Emily

Emily from SWISCO

Nov 5, 2021 2:19 pm

SWISCO

EXPERT

Hello!

It looks like you have either our S351-35, with a 15-002 bottom attachment, or S390-35, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 3430 spring strength option.

If you have any questions just let us know!

Comparison of the S351 and S390 balance shoes.

Comparison of the S351 and S390 balance shoes.

+ Add a Comment
