Vintage metal louvre bifold doors

A home owner from LaGrange, IL says:

February 20, 2023

I'm looking for the bottom pivot rod for this bifold door or suggestions for alternative fixes.

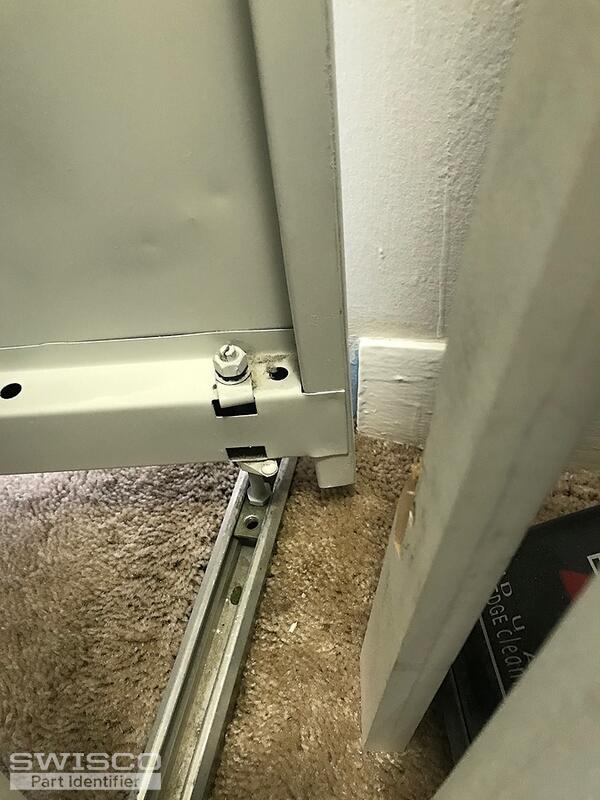

Thumbnail of the uploaded file named CEFDAC84-AA11-44C1-8295-7073EDFEAADD.jpeg

Thumbnail of the uploaded file named 90696AF5-C9DD-4EA3-A8E2-8A184ECE988E.jpeg

Emily from SWISCO responded:

February 21, 2023

Hello!

I'm afraid I can't identify what you may have from these photos. Can you remove an undamaged pin assembly and show us photos? We would also like you to write out the diameter of the pin shaft and the diameter of the nylon cap, where it fits into the track.

Thank you!

A quick learner from LaGrange,IL says:

February 21, 2023

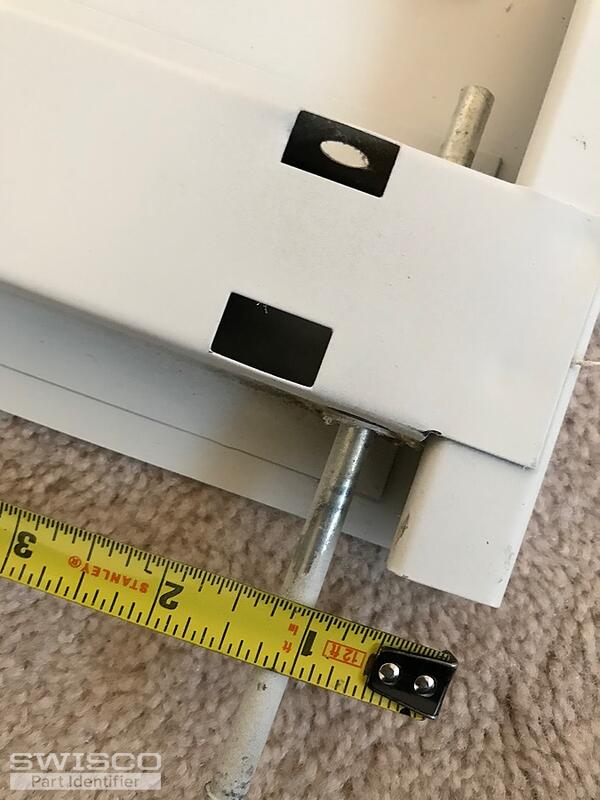

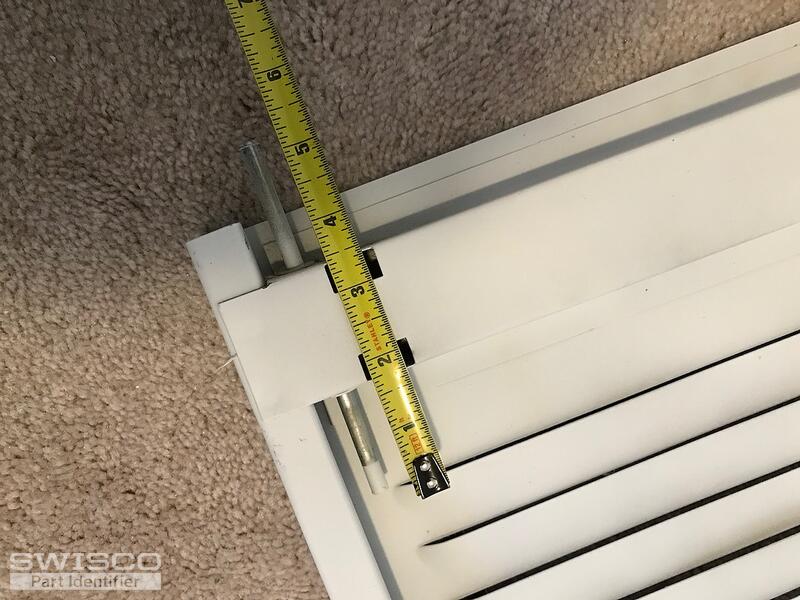

I need bottom pivot rods including the white piece that it fits into to slide along bottom rail. The rods are aprox 5 inches long 3/16 diameter. The white piece is aprox 3/4 inch long.

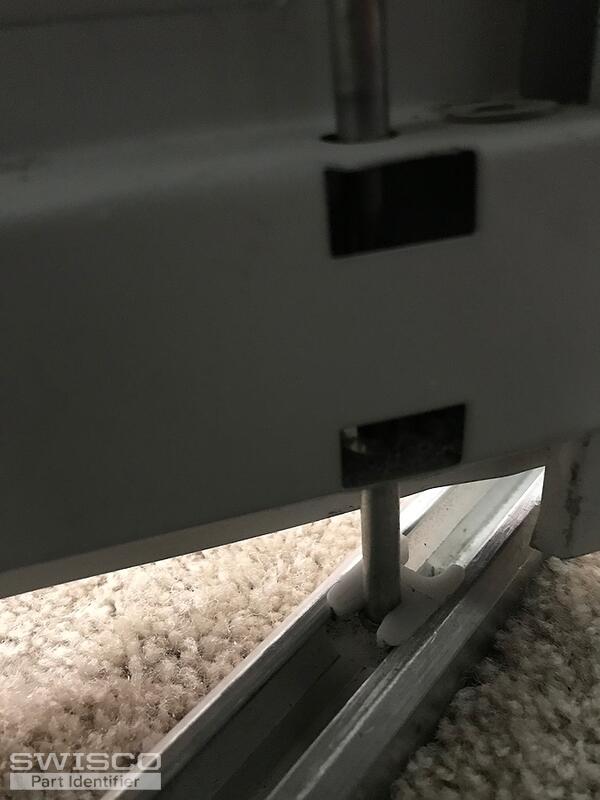

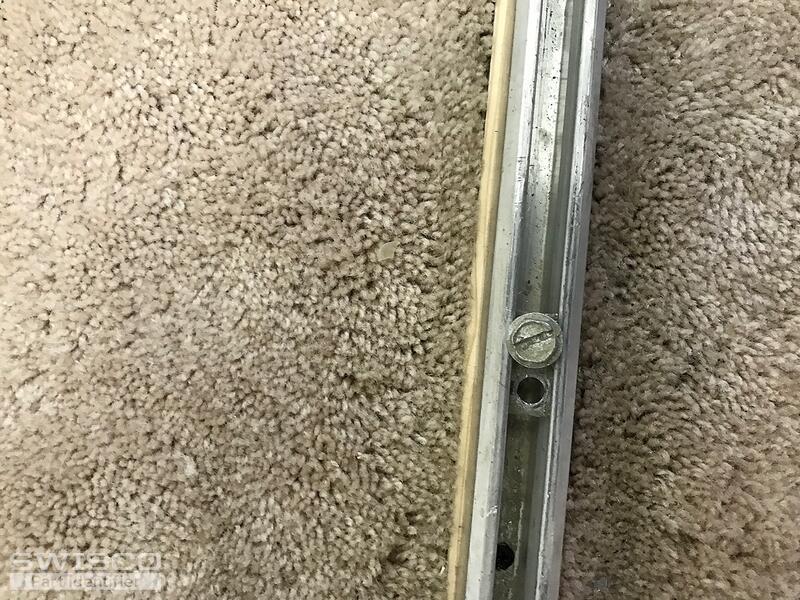

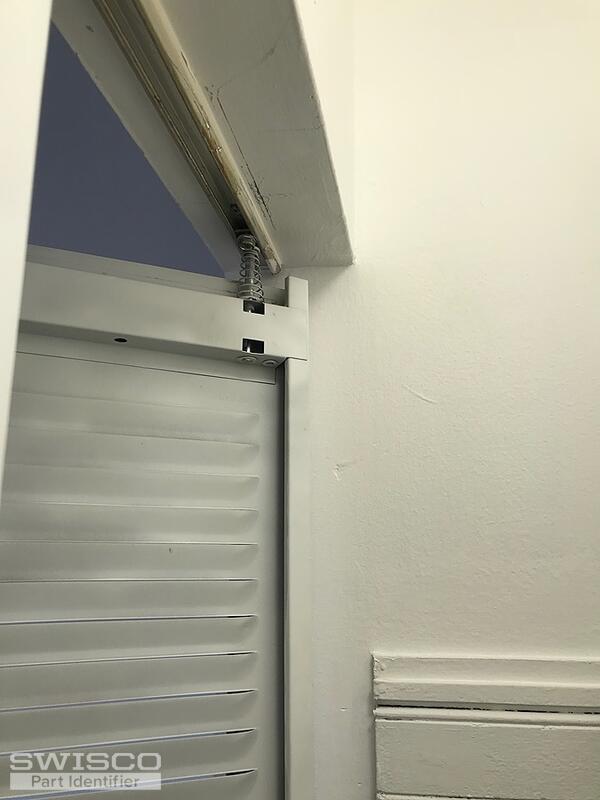

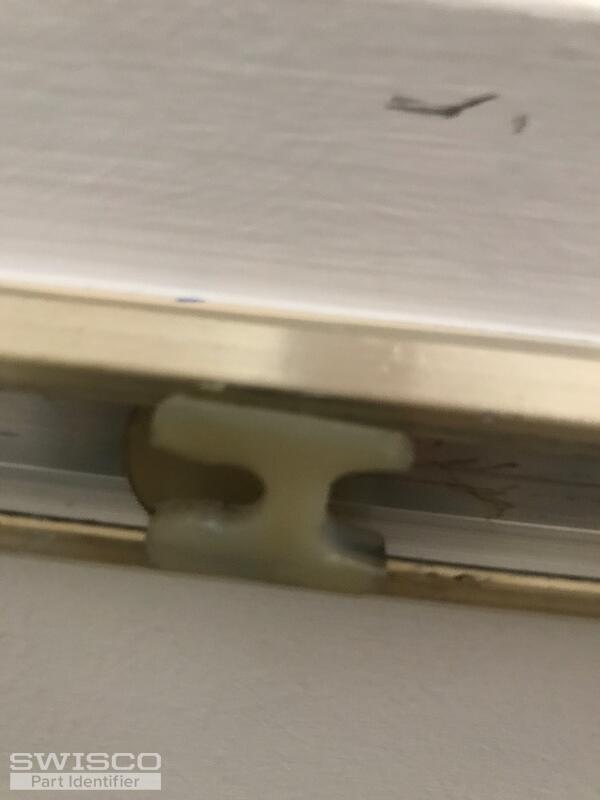

Thumbnail of the uploaded file named 22EEB1D1-FF02-4F7D-809A-0B0DF557CFFA.jpeg

Thumbnail of the uploaded file named 85D2FB6B-58EF-4094-A224-1D6BD30C148D.jpeg

Thumbnail of the uploaded file named F3914177-ED54-45B7-B421-12AE13C2FE99.jpeg

Thumbnail of the uploaded file named 568EA6F0-4029-48D5-9AC5-33380BBE68EA.jpeg

Thumbnail of the uploaded file named 1E20002D-983F-4FAD-A629-145983C7BB7F.jpeg

Emily from SWISCO responded:

February 22, 2023

Thank you for getting back to us. I recommend you start by taking a look at our 21-049 , 21-050 , and 21-058 . Look over the specifications for these parts and compare them with yours to see if one matches what you need.

Bifold Door Guide Pin, Leigh, Full-VU Doors

21-049

$6.70

Bifold Door Guide Pin

21-050

$7.11

Bifold Door Guide Pin, Leigh, Monarch

21-058

$7.42
