Vinyl Awning window pivot brackets

Professional from Norristown, Pa.
I need both left and right arms for this window.
        Thanks
1 user uploaded image
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

It appears that you are in need of a new 2-bar hinge assembly. To further review, are you able to confirm the length of the hinge track on the window sill? From there we can compare to our selection to determine a potential fit. Thank you!

Professional from Norristown, Pa.

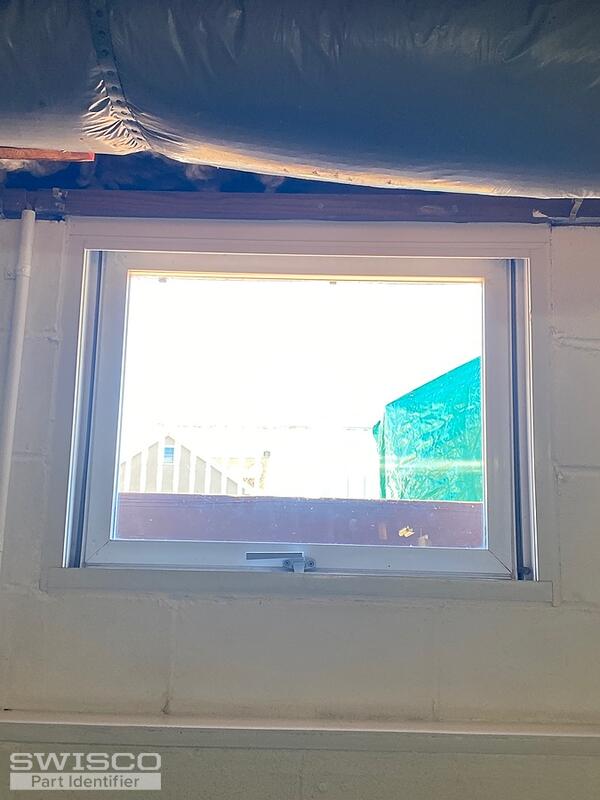

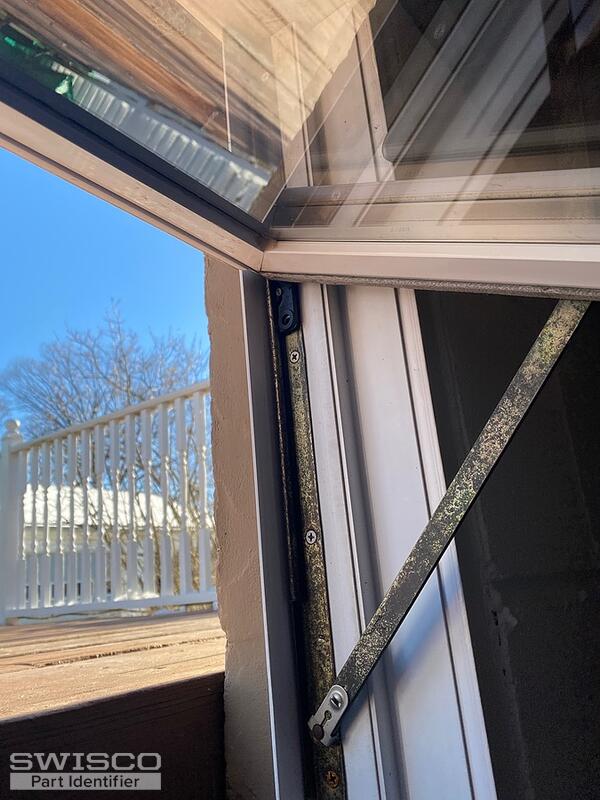

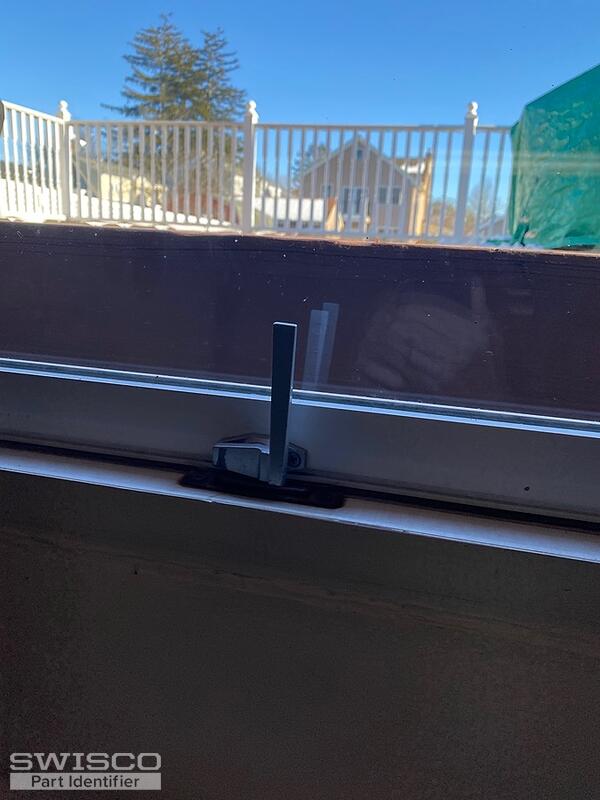

Here is more info. This window is like a hopper style turned upside down. There is no crank(see photo).There is no bracket or slide on the sill. Can you identify the part from the photos shown with the tape measure. The arms are approx. 9-3/4 over 8-3/4 with the black shoe/slide.
5 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional information,

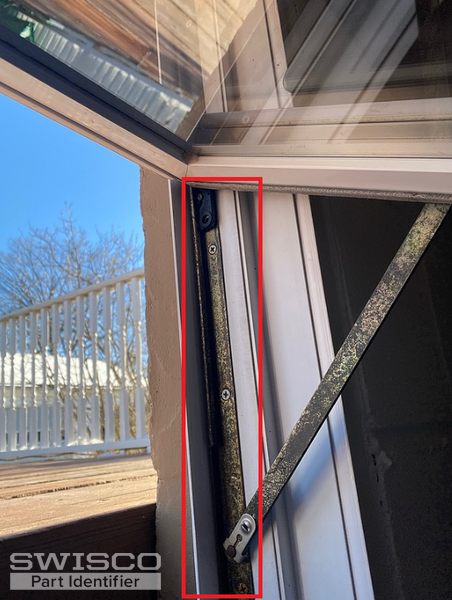

Since it is a hopper window, I will need to know the length of the track that is on the sides of the window as highlighted in the image below. From there I can confirm the sizing we can provide.

swisco
