Vinyl Casement Crank and Multi Point locking Mechanism

A quick learner from 07076 says:
All I have are pictures and a measurement for length of multi point.
The multipoint length is 39".

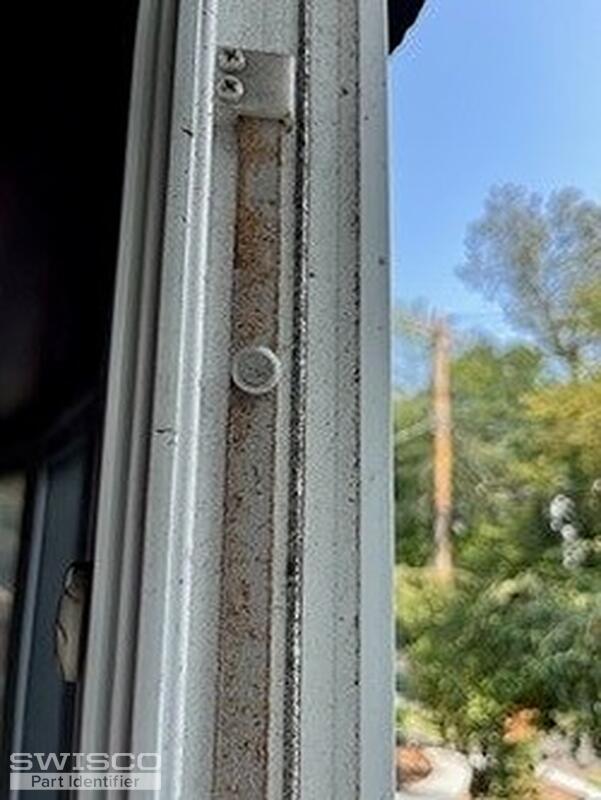

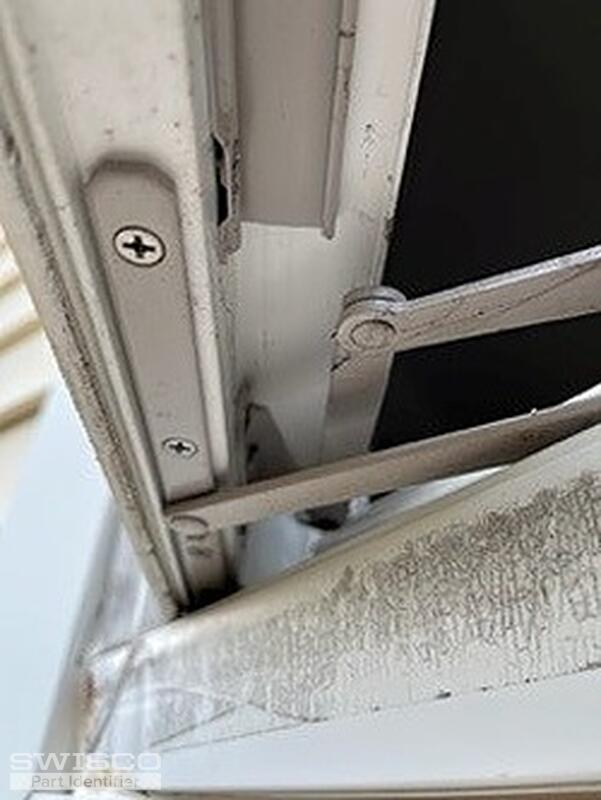

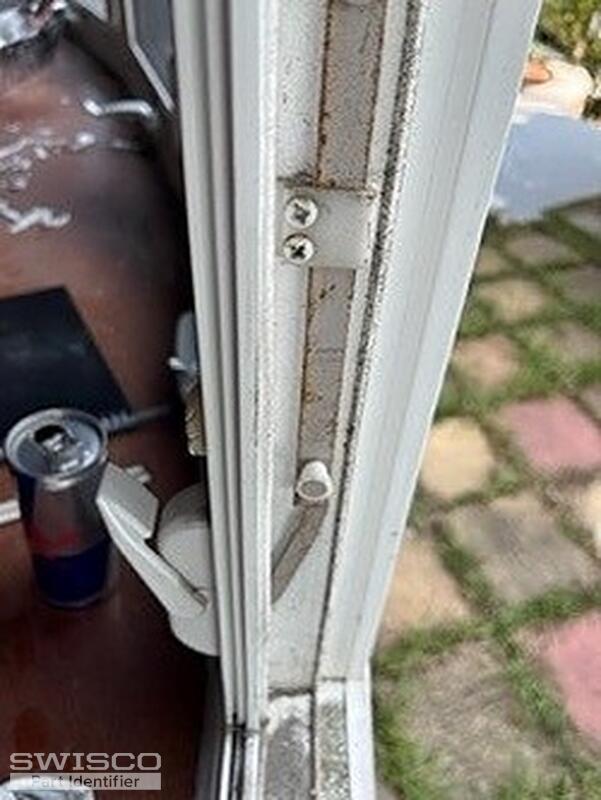

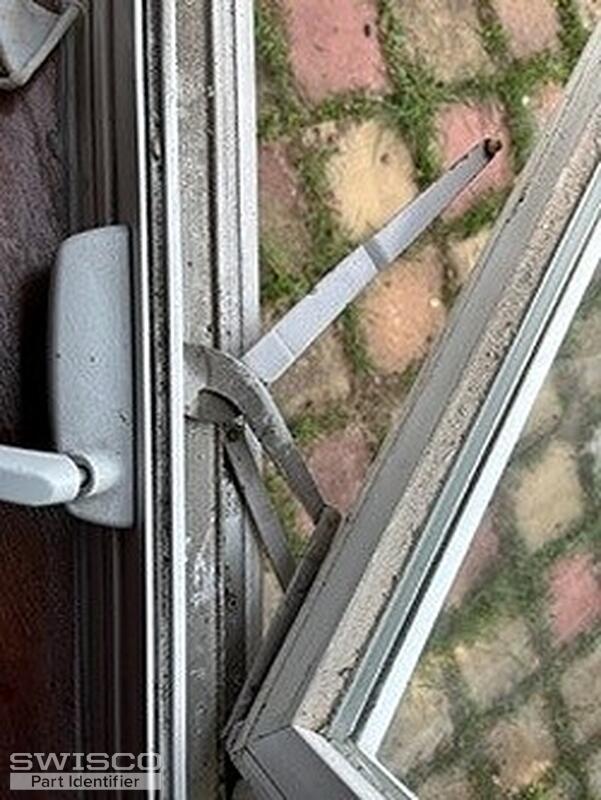

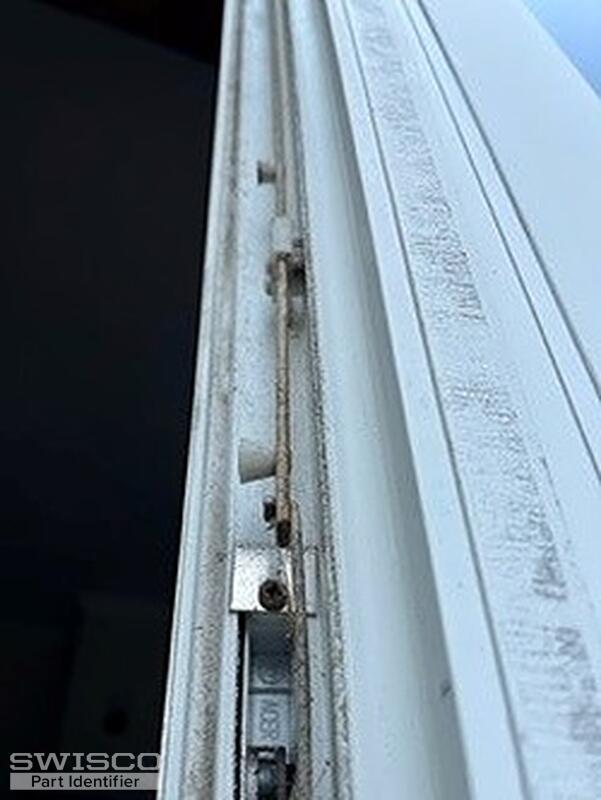

Thumbnail of the uploaded file named swisco8.jpg
Thumbnail of the uploaded file named swisco9.jpg
Thumbnail of the uploaded file named swisco3.jpg
Thumbnail of the uploaded file named swisco4.jpg
Thumbnail of the uploaded file named swisco6.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for reaching out to us. We should be able to help with these parts, though I'm not sure if we have the exact tie bar you need. We don't sell anything that's 39" long. The closest would be the 38-907 , at 38.9", but you will need to look over its configuration to verify that it matches. That includes the quantity and style of the rollers and lock points.

For the operators, see our 39-253LB and 39-253RB . I believe these will match your originals but I've shared specs below that you can use as a reference.

Alternate image for 38-907
Alternate image for 38-907

Dimensions for 39-253LB
Dimensions for 39-253LB
