Vinyl Casement latch and handle : SWISCO.com

Quick Learner from Montreal, qc

Jul 20, 2018 9:48 am

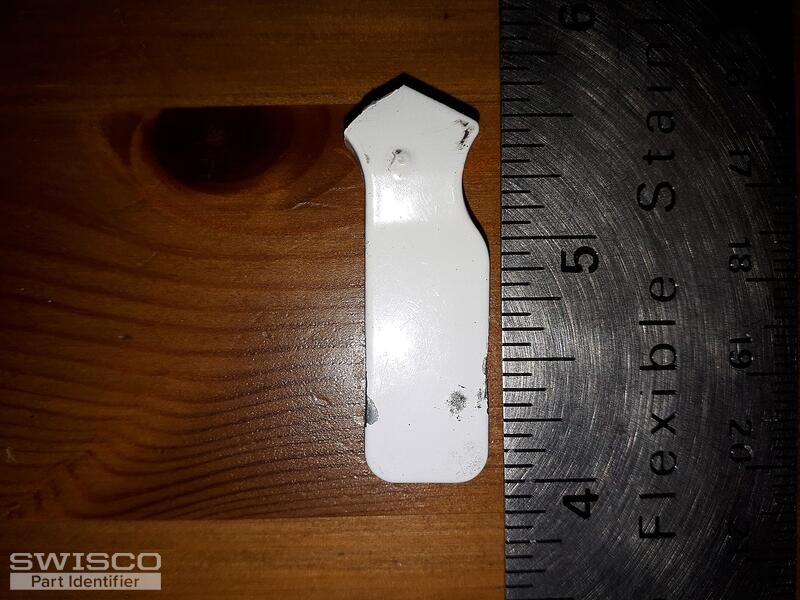

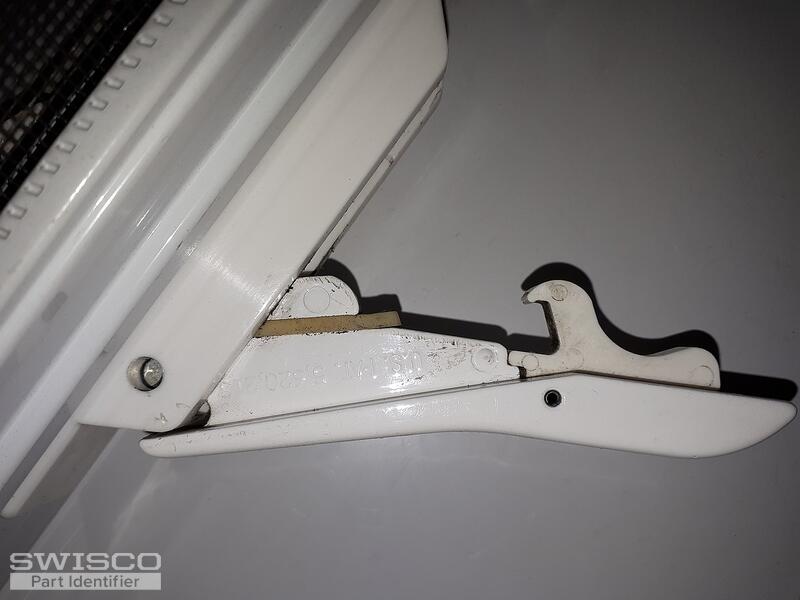

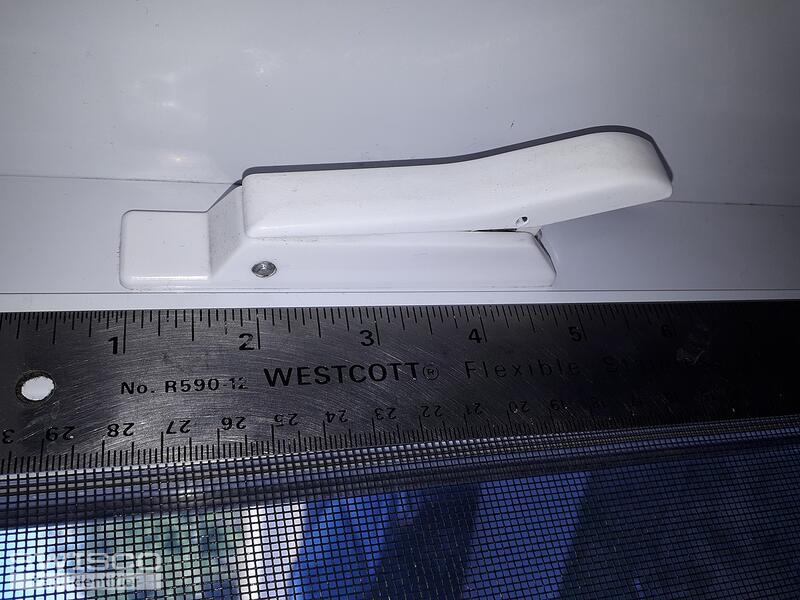

Latch : there are 2 patent numbers on this piece - US Pat.5,620,213 and CDN Pat. 2,142,071

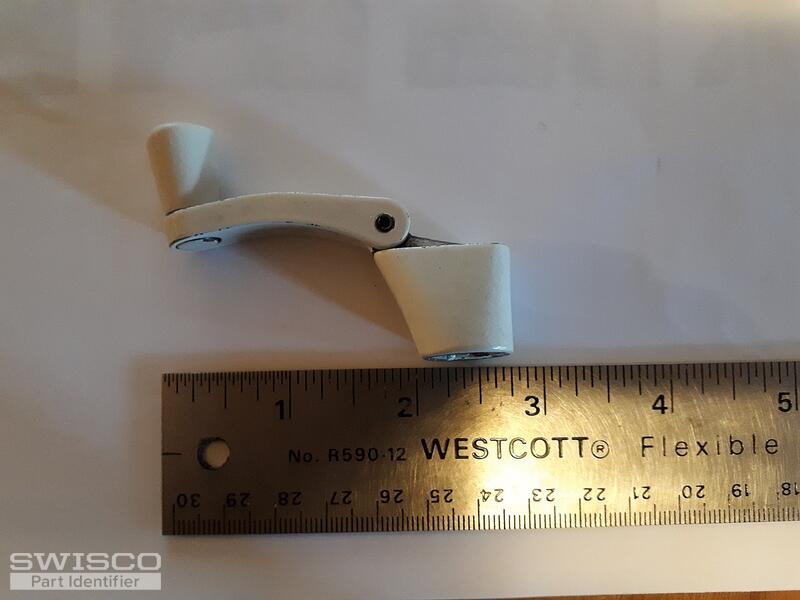

Handle : USA PAT no:6375332/CAN PAT no:2310998

5 user uploaded images

4 Replies

Dave Sr. from SWISCO

Jul 26, 2018 3:48 pm

Thanks for posting. I would take a look at our 38-207 multi-point locking handle to replace what you have now. As for the handle, we don't have an exact match to yours, but our 39-205 folding handle used on Truth could possibly work. I would also be sure to check your spline, just in case.

Quick Learner from Montreal, qc

Jul 26, 2018 9:45 pm

Thank you for the response!
What is a spline?

Tom from SWISCO

Jul 27, 2018 8:33 am

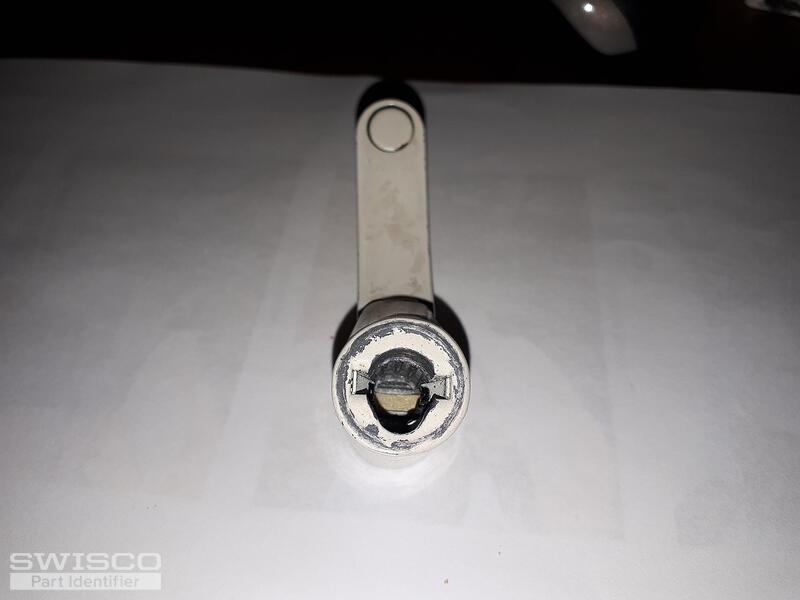

What Dave means is that you should check the diameter of the silver peg sticking out of your window operator. That peg (the spline) fits into the socket in the handle, shown below. The socket and peg both have a diameter of 11/32" for this part.

Alternate image for 39-205
