Vinyl Glazing replacement

A home owner from memphis says:

June 17, 2018

I have aluminum storm windows and the vinyl glazing needs replacing. I am needing to know what size i need. The overall width is 9/16 and the retaining part that snaps in the track appears to be about 3/16 deep by 1/8 wide.

I believe these widows were made in Memphis about thirty years ago.

Robert

Tom from SWISCO responded:

June 18, 2018

Hi, Robert. Can I see a photo of the butt end of the strip, like this?

Example illustration of a cross section.

A home owner from memphis says:

June 23, 2018

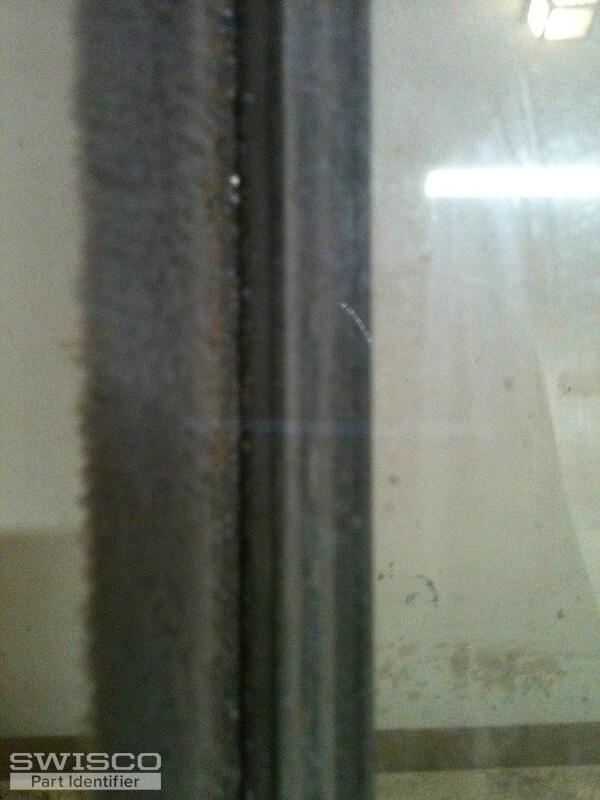

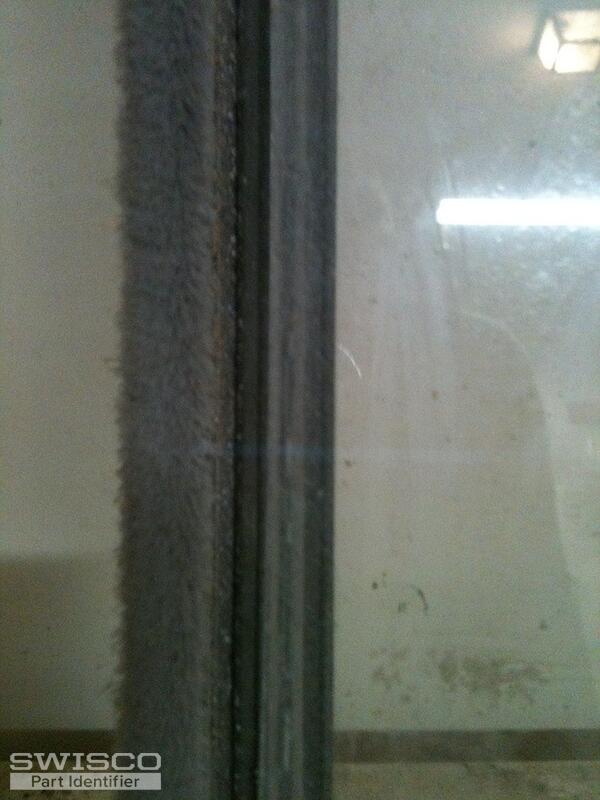

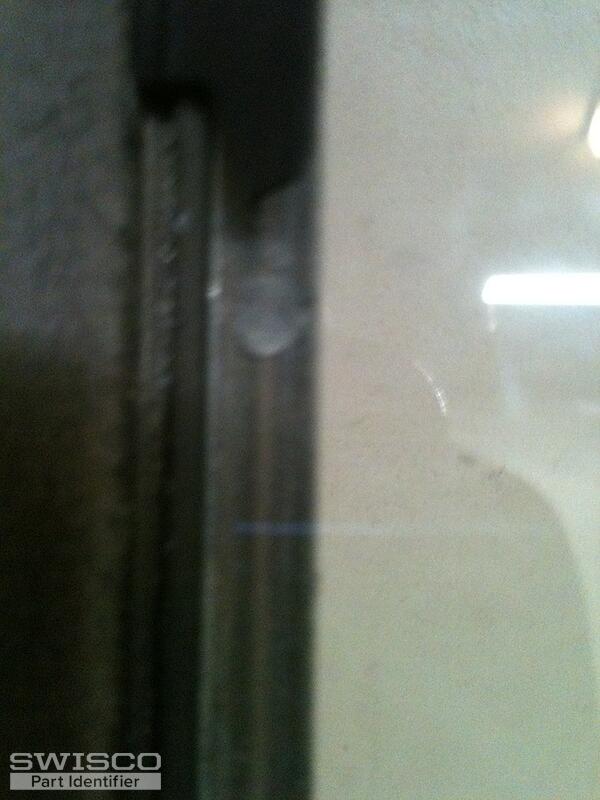

Sorry for the delay, I usually don't check my email to the weekend. I hope that you can see what you need. Hard to focus on something that small.
I will make a point to check my email everyday.
Thanks

Paul from SWISCO responded:

June 28, 2018

Sorry for the wait!

Hm... can you help me narrow this down? I'd like to see the storm window where this vinyl piece fits. Can you send a photo?

A home owner from memphis says:

June 28, 2018

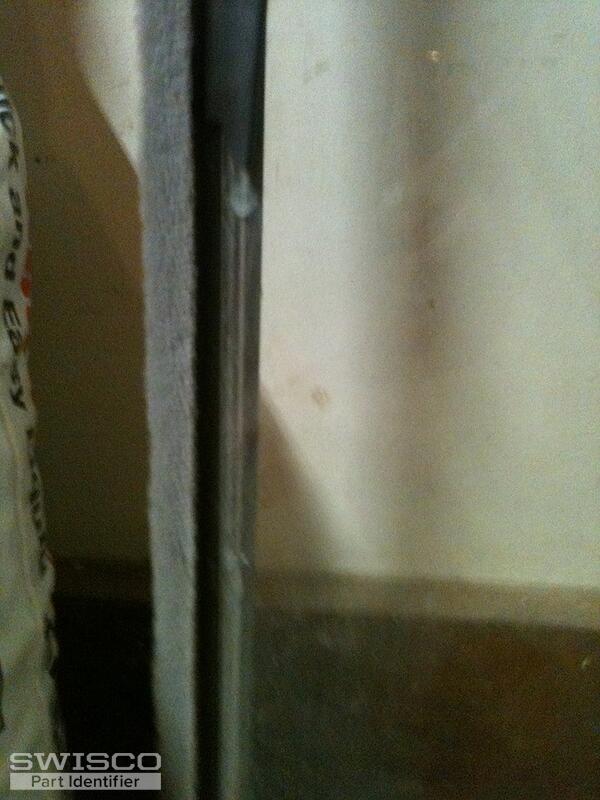

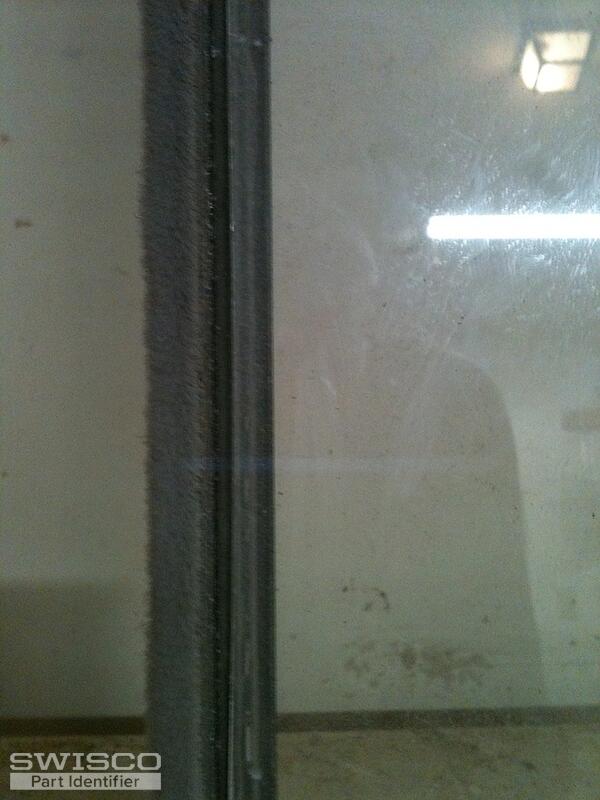

Thank you for helping. I hope this helps

Paul from SWISCO responded:

June 29, 2018

We do offer a universal glazing spline, our 59-068. This holds the glass in your type of frame. It is soft and flexible to lock in your frame. Look it over and get back to us with some thoughts.

Universal Glazing Spline, 25'

59-068

$15.95
