Vinyl Replacement Window Part

Question

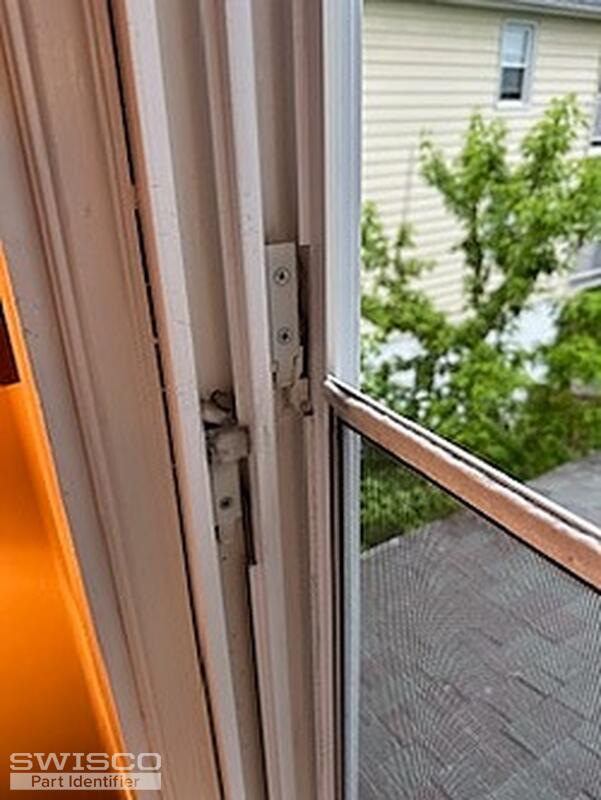

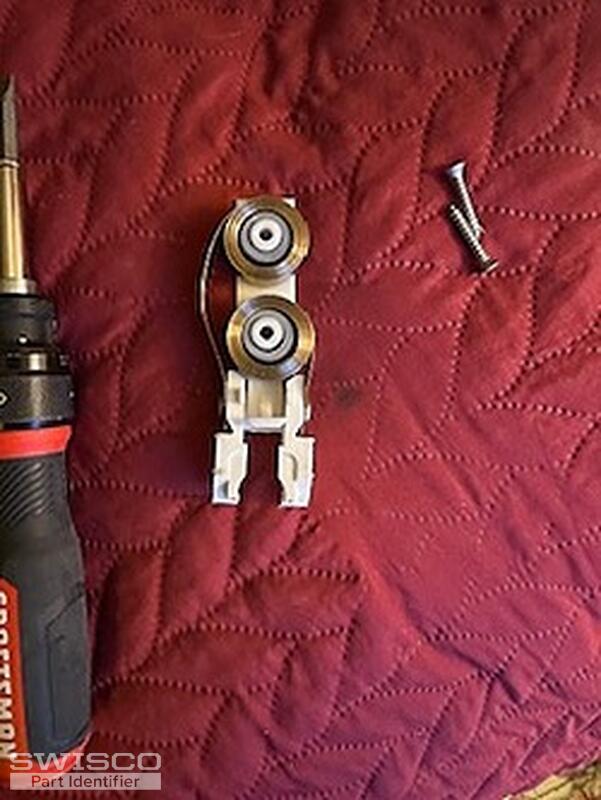

I need this part both left and right side to fix back hung window. The bottom part of the plastic piece that attaches to the coiled metal is broken which would cradle the window post to hold it in place.

Jasmine · Accepted Answer

Thanks for your post! You'll need the 15-180 Coil Balance Shoe to replace the shoe in this assembly. It uses the Series 180 Coil Balance, which is secured to the shoe using the 33-072 screw. The coils are anchored to the window track using the 15-181 Double Support Detent Clip and 15-182 Balance Bushing.

Alternate image for 15-180

The video tutorial below provides a detailed explanation on how to select the correct coils springs for your assembly.
