Vinyl Window Balances

Question

Hello, I thought the video was quite helpful.

I'll be looking for one that will show me how to remove and re-install replacement balances.

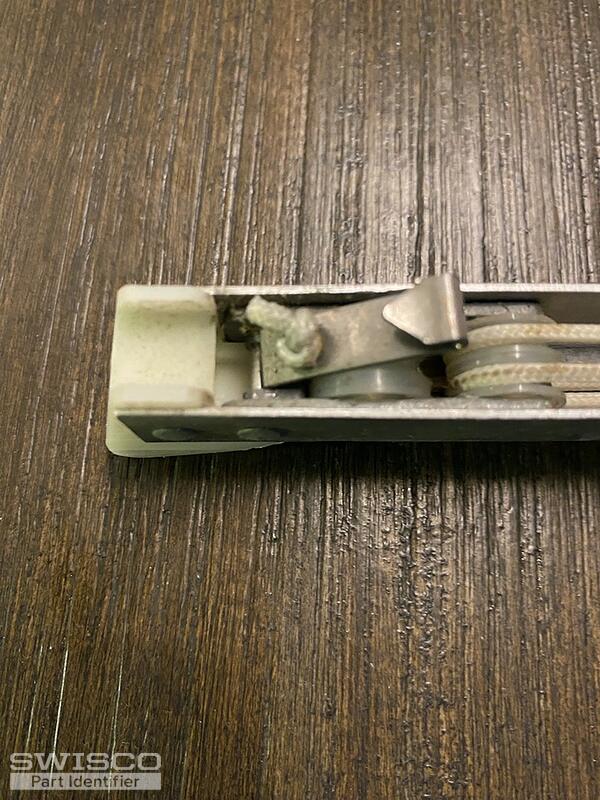

Attached are the pictures of the balance I need to replace.

The length of the actual metal part of the balance is 25".

Get at me if you need another image.

Bob · Accepted Answer

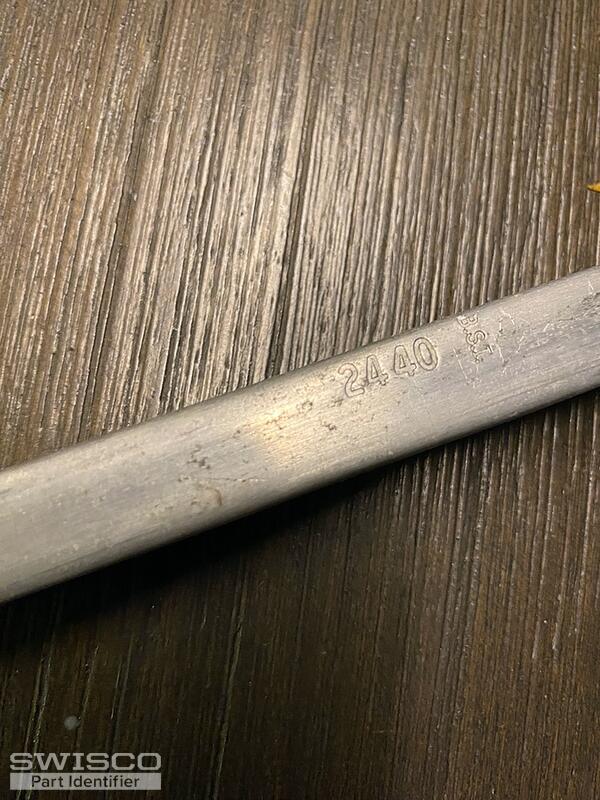

Hello there. Looks to me like you have either an S390-25 or S351-25. The difference between these two channel balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. The Series 351 has a 1" deep shoe, whereas the Series 390 has a shoe depth of 1-1/8". See the diagram below for reference. Compare both with your old balance to see which matches best. For a stamp option choose 2440. Also see the video below which shows how to remove and install channel balances!

Comparison of the S351 and S390 balance shoes.
