These both came off a rental house window, the part that keeps the sash locked in a vertical position is 4" tall, 1" wide and 7/16" deep from front to back. Naturally, they come in a right and left hand both.

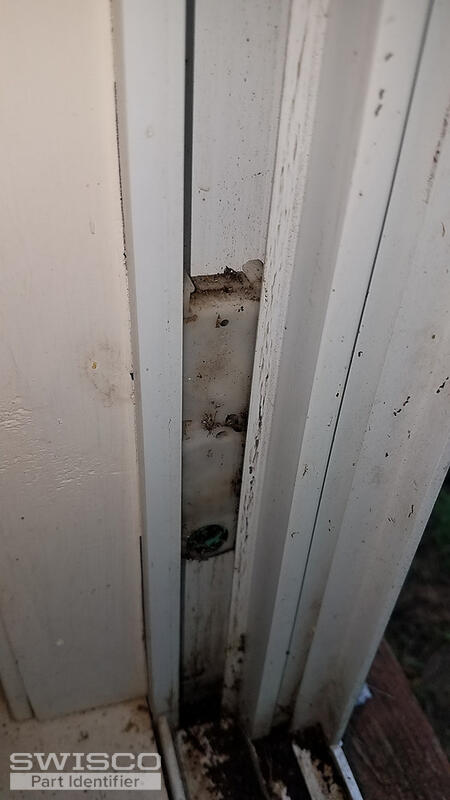

The part with the springs in it that the window mounts in are also needed, I need 2 left and 2 right.
Brand of window is not known.
Gail
|
Casey from SWISCO responded:
May 22, 2023
Hello, I can't be sure with the hardware still installed but your coil balance resembles our 15-087 housing pivot, which uses the Series 180 coil springs, 16-031 bracket, and other parts listed on our product pages. As for your tilt latches, take a look and compare the specifications of the 26-243 and 26-244 below to yours. Thanks for posting!
Detail of 15-087
Series 180 coil balance diagram
Profile view of 26-243
Alternate view of 26-244
|
