Vinyl Window Pivot Shoe

A handy person from La Crosse, WI says:
Vinyl replacement window (unknown brand), pivot shoe measures 1 7/16" wide X 2 1/8 tall X 1/2" thick, I will have to use the cut method to remove the old shoes, but holding off till have replacements in hand.

Thnx for any help you can provide, have already used your site to replace all of my plastic spiral spring balances
Thumbnail of the uploaded file named PXL_20220510_195638240.jpg
Thumbnail of the uploaded file named PXL_20220510_195647563.jpg
Thumbnail of the uploaded file named PXL_20220510_195700263.jpg

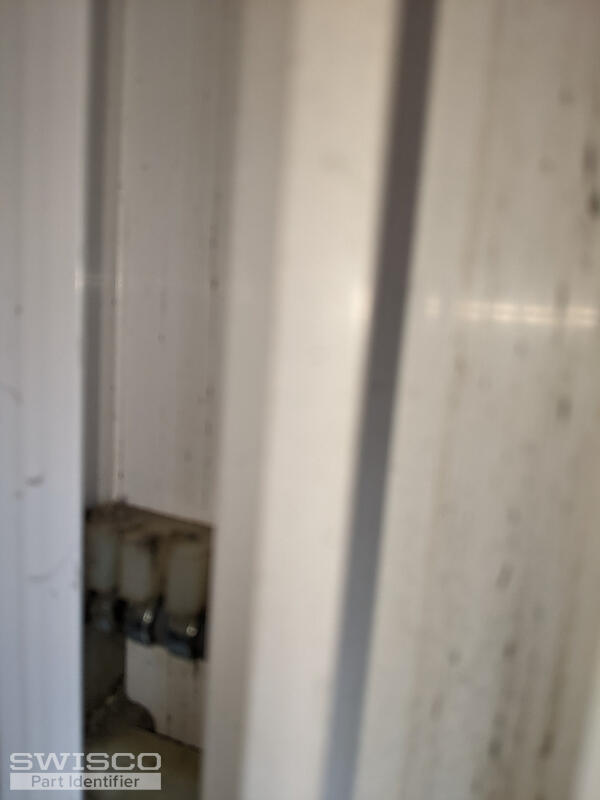

Thumbnail of the uploaded file named PXL_20220510_195654058.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid that we don't have a pivot shoe with a 1-7/16" width. That's actually pretty huge, as far as pivot shoes go. Can you confirm that measurement? If you haven't already, please make sure to remove it before you measure. That way you can be sure that your dimensions are as accurate as possible.

A handy person from La Crosse, WI says:
You are correct, measurements are 1 1/4" wide X 2 1/8" tall X 17/32" thick, closest match I see is 15-015, what do you recommend?

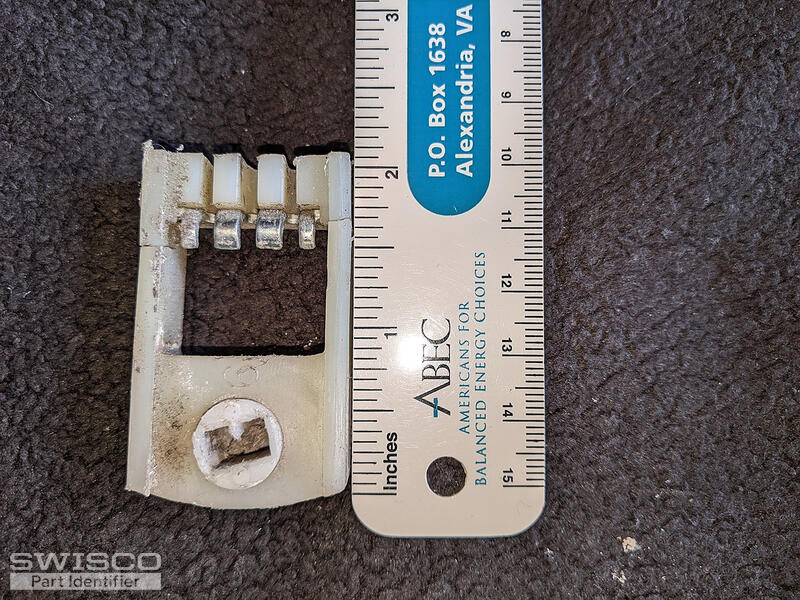

Thumbnail of the uploaded file named PXL_20220512_183951888.jpg

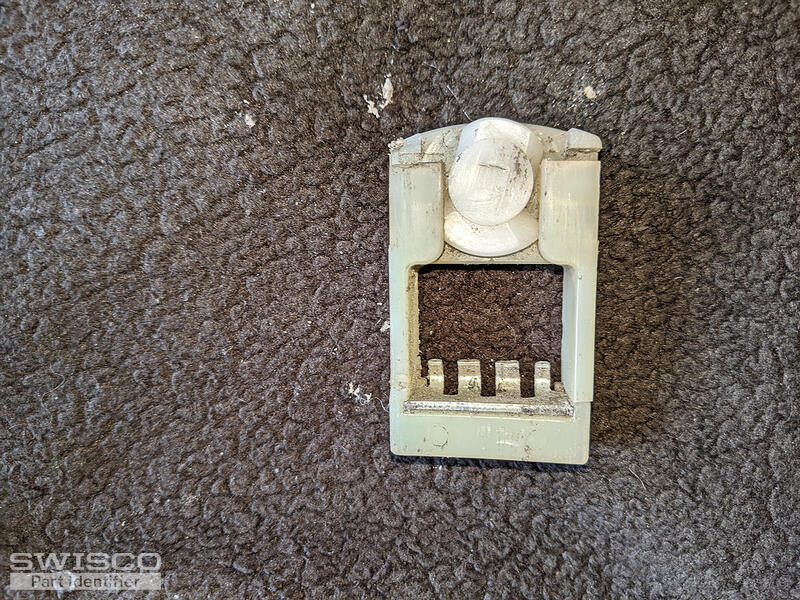

Thumbnail of the uploaded file named PXL_20220512_184033165.jpg

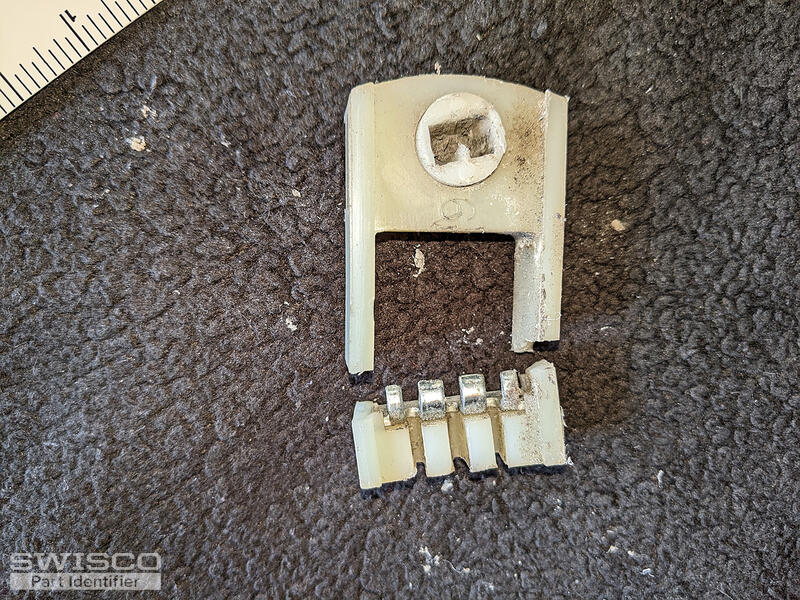

Thumbnail of the uploaded file named PXL_20220512_184145852.jpg

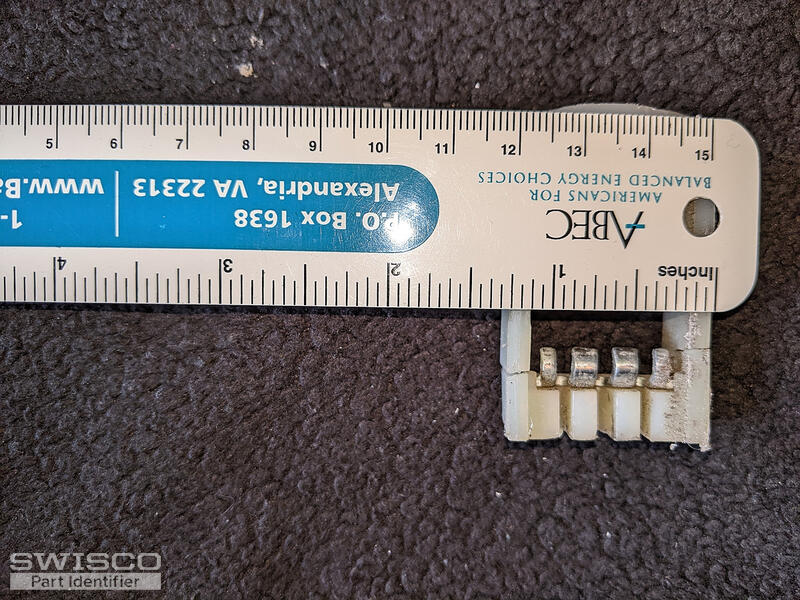

Thumbnail of the uploaded file named PXL_20220512_184019620.jpg
Profile picture of Paul
Paul from SWISCO responded:

The manufacturer of your pivot shoe has gone out of business. Even though the shape of the 15-015 is different than your original shoe, the 1-1/4" width and 17/32" thickness match yours. I have recommended this to many customers in your position in the past. Thanks for posting.

A handy person from La Crosse, WI says:
Thnx Paul!! Have placed an order, with a couple extras..just in case...
Profile picture of Paul
Paul from SWISCO responded:

Great, just let us know if you need anything else.
