Vinyl Window Replacement balances

A handy person from Rhode Island says:

August 16, 2017

Current Riverdale double hung Vinyl window balances are breaking. Consist of spring, string and unique shoe. Looking to replace entire mechanism. Channel width 1 and 9/16, inside 1 and 1/4 depth 5/8". Windows 28 and 20 inch double hung.

I would like to replace hardware in 12 windows.

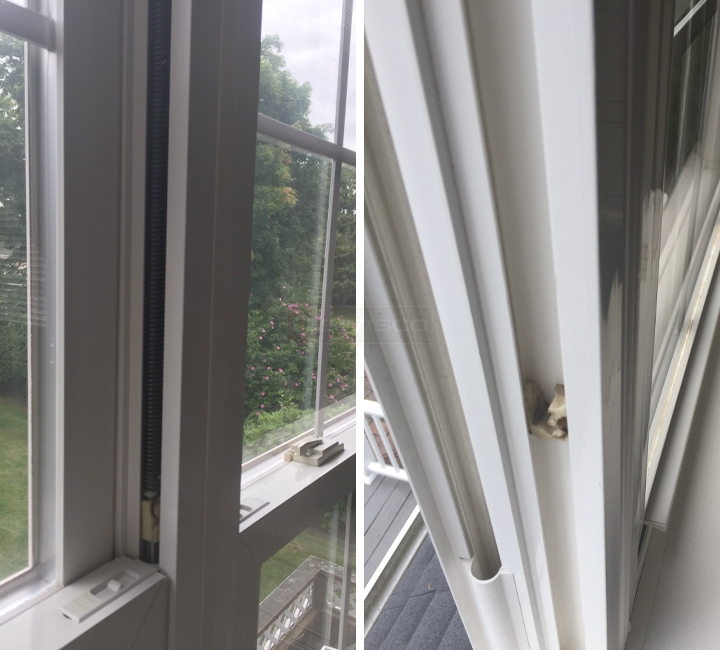

User submitted photos of window hardware.

Tom from SWISCO responded:

August 21, 2017

Thank you for reaching out to us. You may want to begin by taking a look Series 860 channel balance. Let us know if this could work as a replacement for you.

A quick learner from RI says:

August 22, 2017

Is there any chance of using a more advanced mechanism?

Paul from SWISCO responded:

August 24, 2017

An easier balance system you can use is our S795-26, which uses a 1-1/4" wide T-Lock shoe. We would need you to weigh the sliding window sash to determine the correct spring weight. See our related video on installation, as well. You can find that on the right side of the page.

26" Series 795 Channel Balance

S795-26

$13.45

How to Install a T-Lock Shoe on a Channel Balance

VIDEO

WATCH >

How to Convert a Crossbow Balance to a Channel Balance

VIDEO

WATCH >

How to install the 26-200 Screw Plug

VIDEO

WATCH >

Modifying the Series 795 Balance

GUIDE

READ >
