Vinyl channel

Quick Learner from Los Angeles

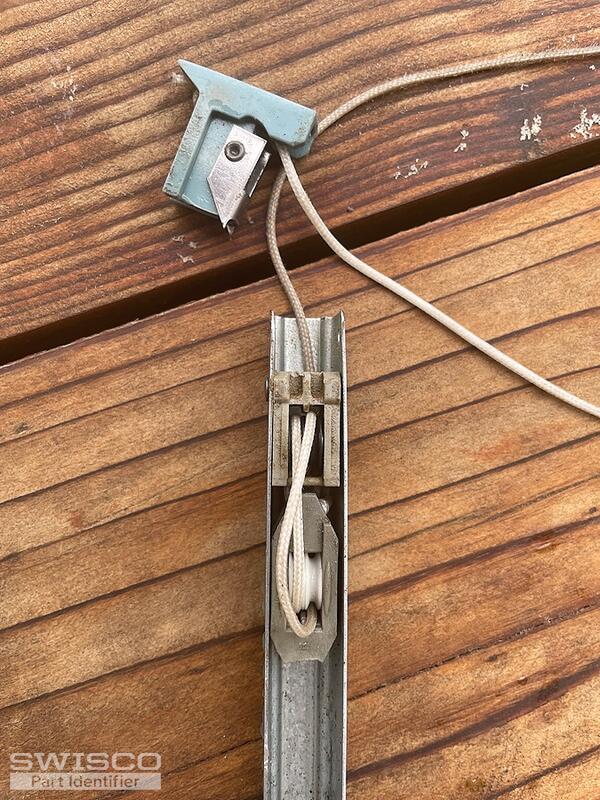

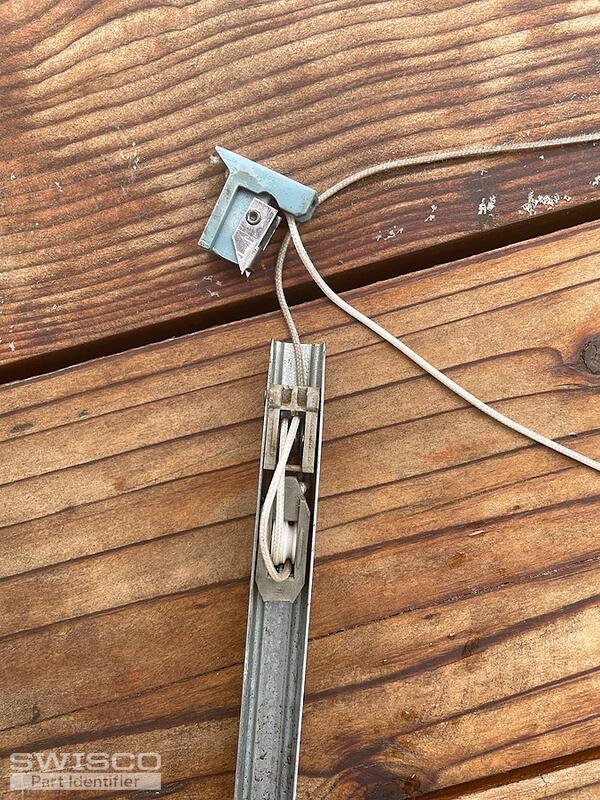

Metal slide for double hung window.
string has a lot of slack and doesn't attach to the window.
part # is 26xH
2 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! I'm certain we can provide a replacement recommendation for the window balances you have. Although, I'll need to see a photo of them removed from the window to determine the best replacement match.

The view of the shoe is obstructed by the window channel, so it is hard to make out its exact replacement. I'll also need to know how the balance installs at the top of the window sash. Does is screw in or does it use a clip?

Please feel free to reach out with any questions you might have!

Quick Learner from Los Angeles
the top of the window sash is attached with a clip.
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

I believe your balance can be replaced with the S751-27 Channel Balance. The length of your channel should be 27". The clip at the top of the channel can be replaced with the 19-030 Long S-Clip.

The stamp on your balance does not cross-reference with those on our balances. You'll need to confirm the exact sash weight to determine which option is best for your window.

The chart displaying the stamps and weight ranges can be found below the product description for the balance, on the website.
