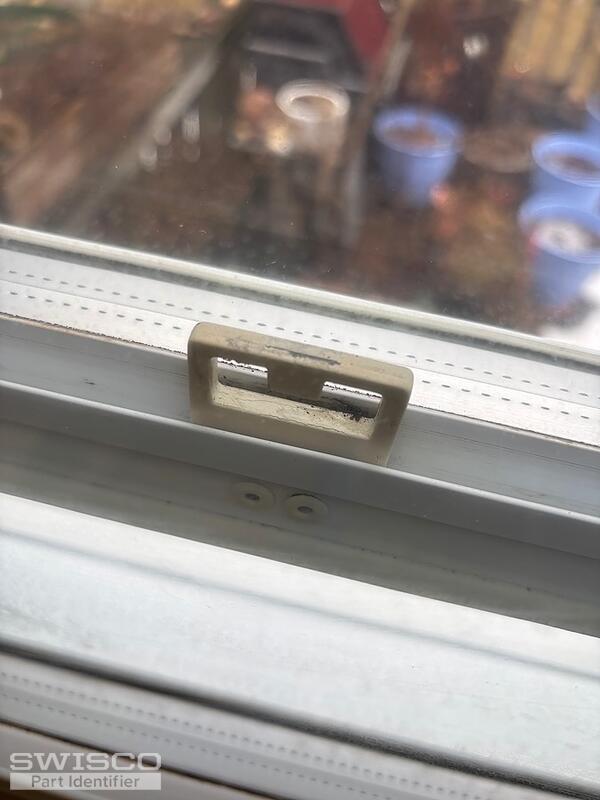

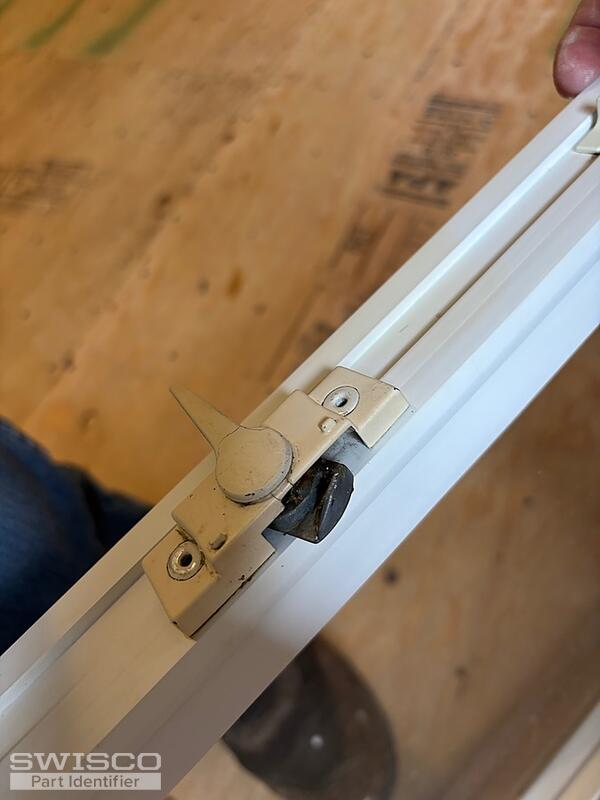

no names, markings or anything on entire window. Customer has multiple broken latches and keepers
2nd inquiry to include broken spiral balance pivot lock shoe, many broke.....
Vinyl replacement window latch
Contractor from Blooming Grove NY
Feb 27, 2025 1:17 pm
4 user uploaded images
3 Replies
Contractor from Blooming Grove NY
Feb 27, 2025 1:21 pm

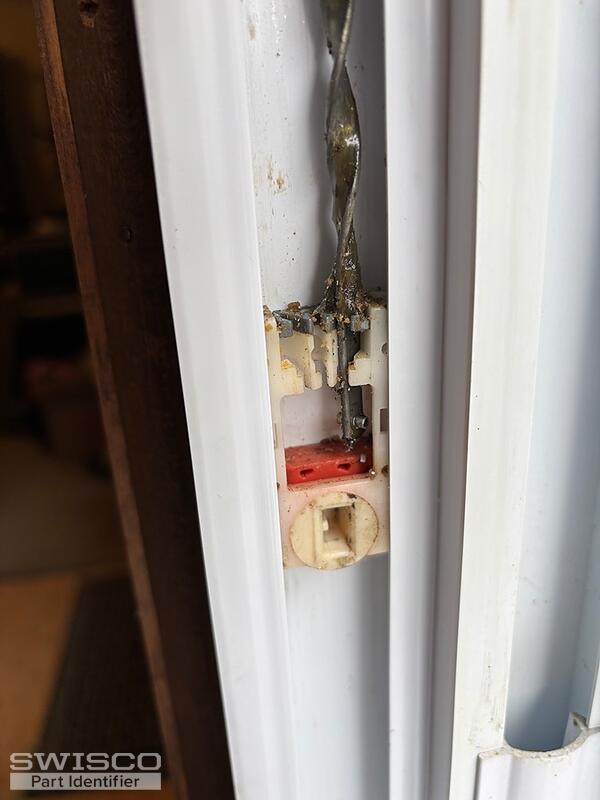

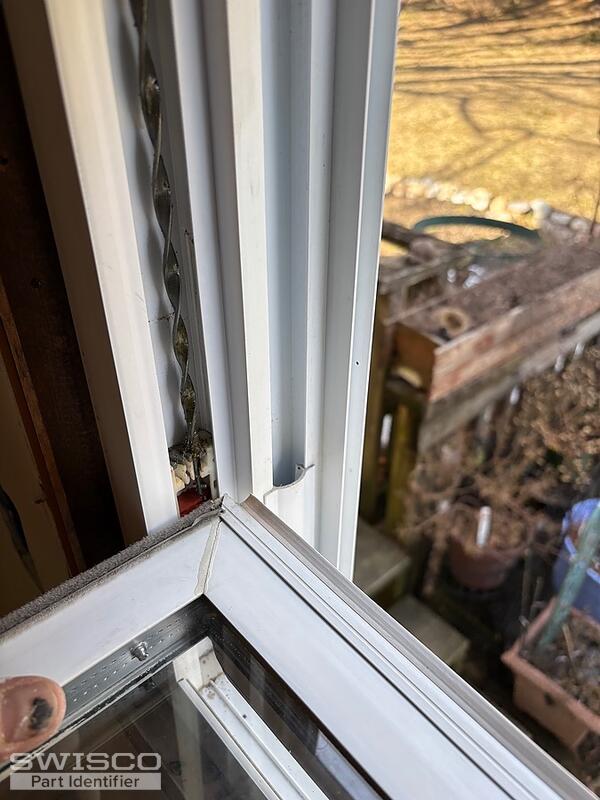

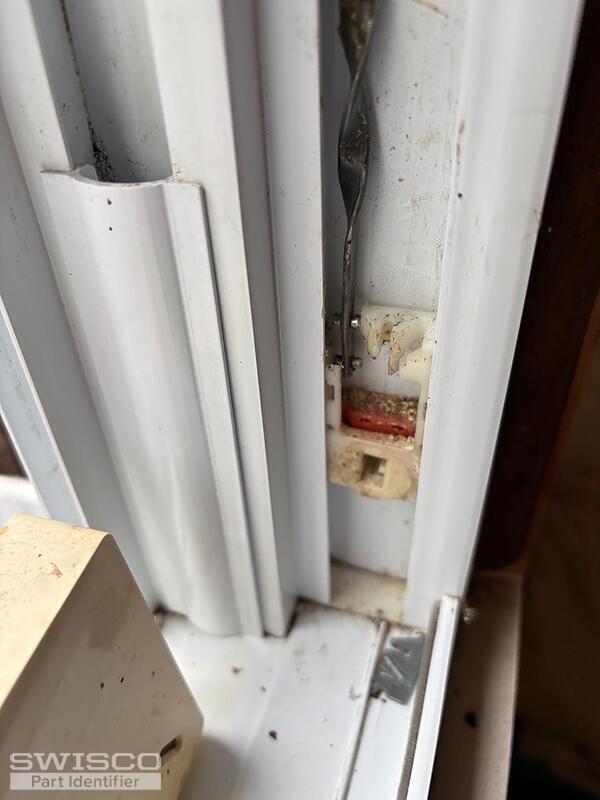

Customer has many broken spiral balance pivot lock shoe
9/16 deep x 1 1/4" wide x 2" long
once we identify broken locks (seperate inquiry) and pivot lock shoes we will count
The windows have no stickers, numbers or markings anywhere, likely from 1990's
9/16 deep x 1 1/4" wide x 2" long
once we identify broken locks (seperate inquiry) and pivot lock shoes we will count
The windows have no stickers, numbers or markings anywhere, likely from 1990's
4 user uploaded images
Casey from SWISCO
Feb 28, 2025 9:44 am
Hello,
Unfortunately, we do not carry an suitable replacement for the sash lock shown in your photos. We do offer the 90-257 face-mounted keeper that is similar to yours but the determining factor would be how the dimensions below compare to yours.
Dimensions for 90-257
Profile view of 90-257
As for the pivot shoe, take a look at the 15-118, which has the same width and thickness you provided. I'd recommend removing an intact pivot shoe from the window to confirm the specifications match. Thanks for posting!
Alternate image for 15-118
