Vinyl tilt window coil balances

A home owner from Lancaster California says:

August 19, 2018

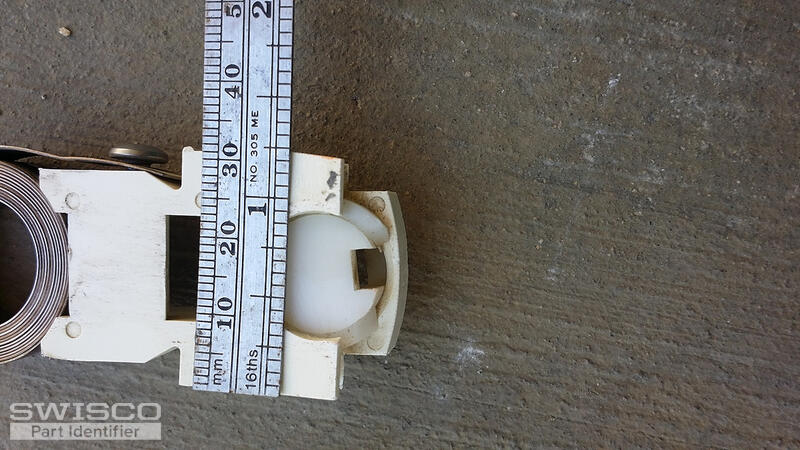

I don't know the windows manufacture if you can help me out will greatly appreciate it!
thank you,
sincerely,
Jose

Tom from SWISCO responded:

August 23, 2018

Thanks for contacting us! We can replace this hardware, yes. I'm told by my colleague Manuella that you've identified this spring as our Series 190 (and I agree), but that yours is stamped with "9."

This indicates 9 pounds of support on each side, for a sash weighing 18 pounds. I'm afraid we don't have a spring that strong, though. The closest solution we can recommend is using a 4 pound S190-440 and 5 pound S190-540 on each side. This should work just as well, but you may need a new detent clip for a double-spring setup. See our 15-181 clip and 15-182 barrel.

A home owner from Lancaster California says:

August 23, 2018

thank you TOM,
Just to clarify i need
2}S190-440
2)S190-540
2}15-181
2} 15-182
2} 33-073 screw
2} 15-180 coil balance shoe?
thank you in advance

Tom from SWISCO responded:

August 24, 2018

Yep! That all looks good to me. Thanks again for considering us, and please let me know if you have any questions.
