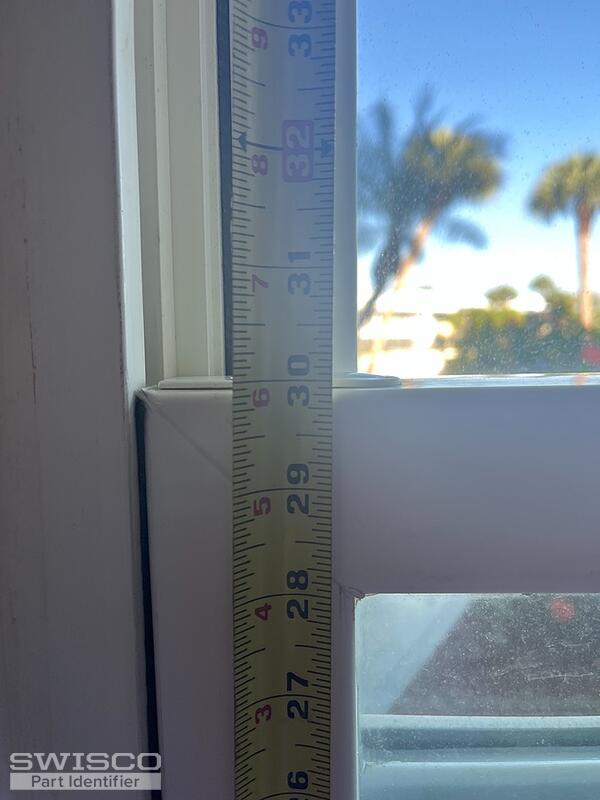

Vinyl window balance coils for 30" x 48.5" double hung window

Home Owner from 34994

Feb 24, 2024 3:31 pm

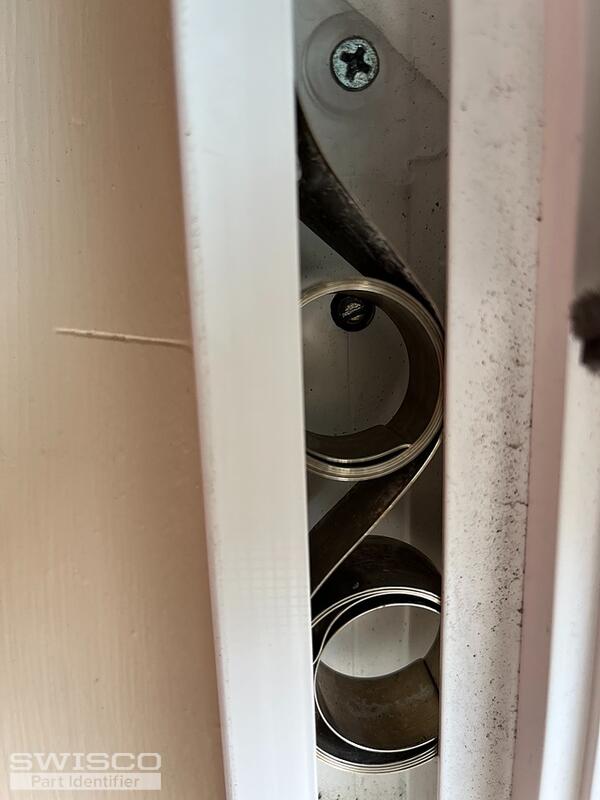

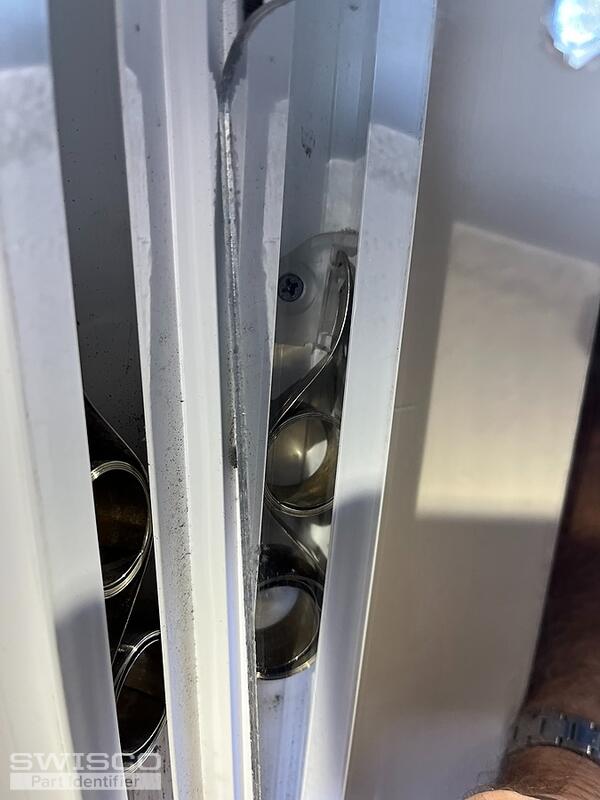

Please let me know what replacement parts I need to repair the window in the pictures. The 3/4" wide metal springs broke.

Thank you, Garret

5 user uploaded images

4 Replies

Lauren from SWISCO

Feb 26, 2024 11:19 am

Hi Garret, thank you for posting,

To further review, we will need to see the window sash fully removed to view the overall style of the pivot shoe in the window channel that the pivot bars on the sash engage with. From there we can confirm the correct series needed for your window. Thank you!

Home Owner from 34994

Feb 27, 2024 10:10 am

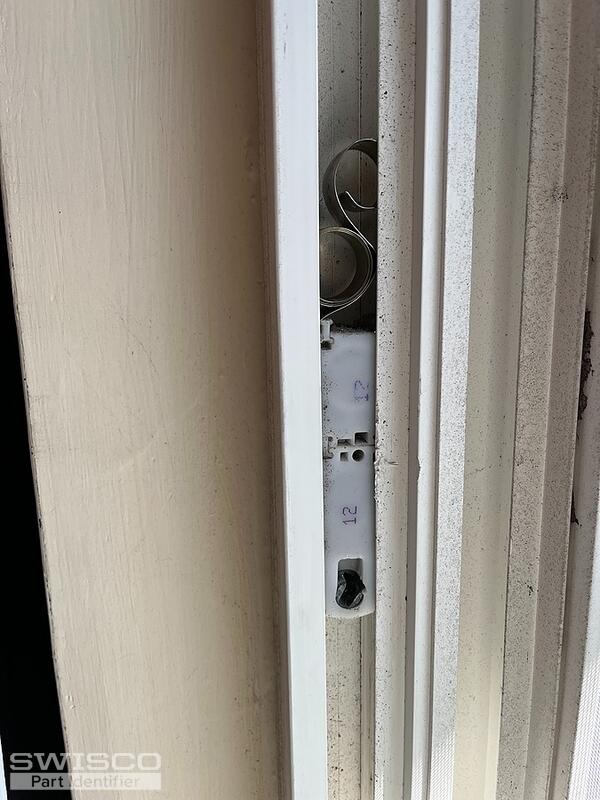

Thank you. I attached pics of the mechanism. Please let me know what replacement part(s) I need OR if you need additional info from me. Thanks again.

Garret

2 user uploaded images

Lauren from SWISCO

Feb 27, 2024 10:58 am

Thank you for the additional picture,

Please review the S210-24 coil balance as a replacement option. Compare the dimensions below to confirm a good fit! Also review the 16-031 bracket if needed.

This balance can support 24 pounds of support. Together will the other side, the total sash weight should be 48 pounds. Let us know if you have any additional questions!

Alternate image for S210-24
