Vinyl window glazing bead

Handy Person from New York

Hi,

2 years ago, I ordered item A (see attached) and thought I was reordering the same item 55-062 (Item B) but it is too large. Even with Item A, I am having issues getting bead flush with window it is bulging out a bit. IGU window is exactly same size (3/4") as old as is the tape (1/16 x 3/8) so I am not sure if there is a similar bead to A but maybe slightly thinner. Would you also please give me the Product Code for item C, which I have also ordered in past. Thanks for your help, much appreciated.

Larry

2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

I see you previously ordered the 55-190, which resembles the drawing labeled "A" in your photo. As for drawing C, take a look at the 55-299. We'll include the specifications for both glazing beads below. Thanks for posting.

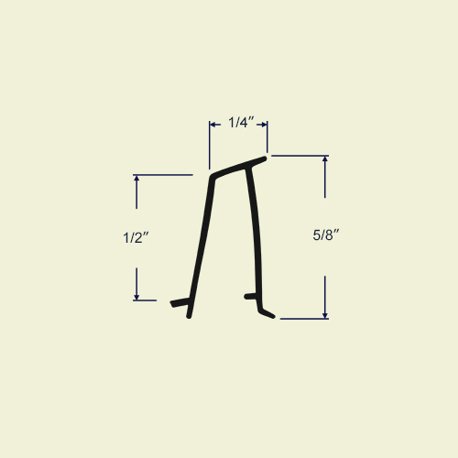

Profile view of 55-190
Profile view of 55-190

Profile view of 55-299
Profile view of 55-299
